Model
Tappan TEF367CCSB
Range/Oven, Electric, Freestanding, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TEF367CCSBRange/Oven, Electric, Freestanding, 30 Inch
4 diagrams116 parts
Parts Sections (4)

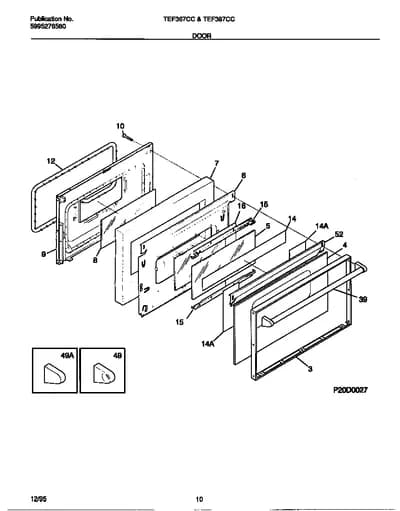

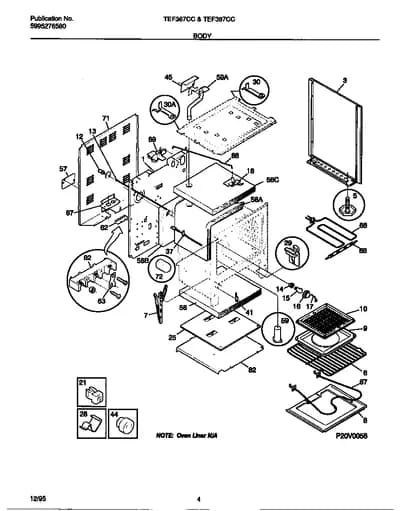

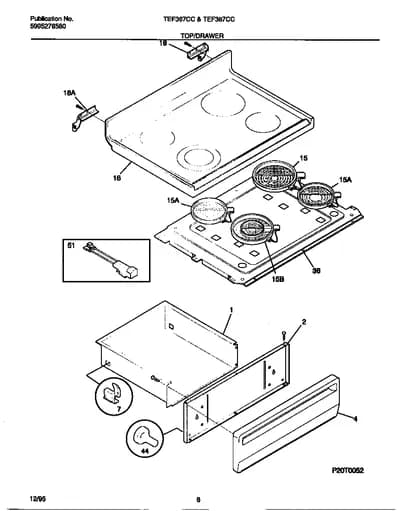

Diagram

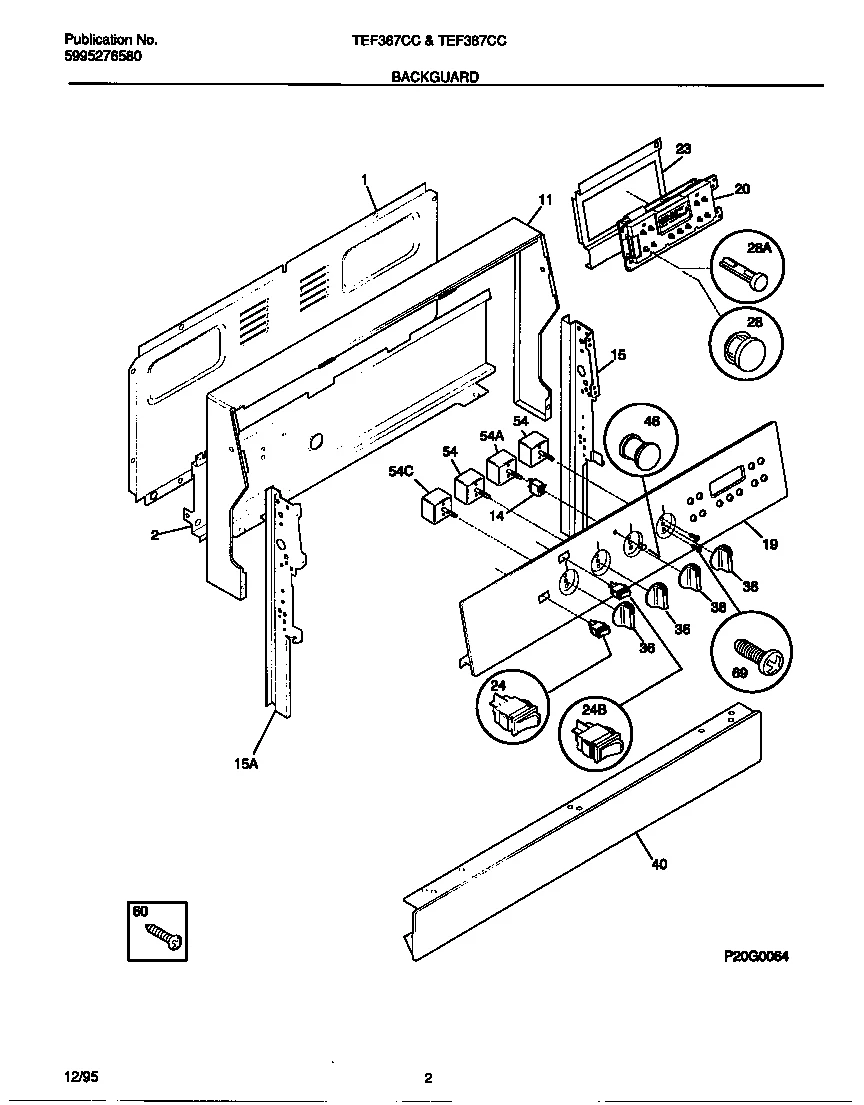

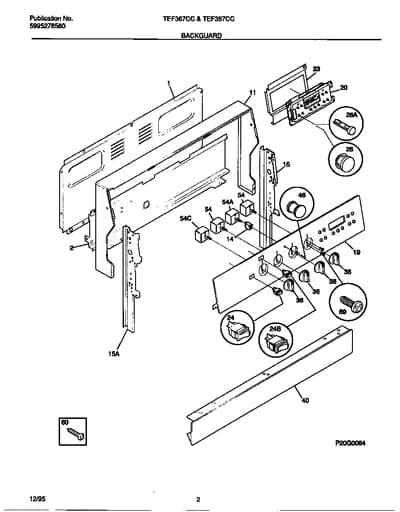

BACKGUARD
Parts in BACKGUARD
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 316081600replaces 316081601 Shield-backguard,painted ,black ,rear wall | - |
| 2 | – | 316015905 SHIELD-BACKGUARD, INNER | - |
| 11 | – | 316061842 TRIM-WRAPPER, WHITE | - |
| 14A |  | LIGHT/LAMP, INDICATOR, 250 V (NOT ILLUSTRATED) | $45.42 Parts Dr |
| 14B | – | 316034802 LIGHT-INDICATOR, HOT SURFACE | - |
| 15 | | 316023109replaces 316023111 SUPPORT-BACKGUARD, LH | - |
| 15 | – | 316023110 SUPPORT-BACKGROUND, RH | - |
| 19 | – | 316076510 PANEL-CONTROL, METAL, WHITE | - |
| 20 | – | 316064500 CLOCK/TIMER, EOC | - |
| 23 | – | 316079003 BRACKET-CLOCK MTG | - |
| 24 |  | 316083100replaces 316076301 SWITCH-ROCKER, WHITE, DUAL ELEMENT, (1) | $57.57 Parts Dr |
| 24 |  | 5304527842replaces 316005607 SWITCH-ROCKER, OVEN LIGHT, WHITE | $6.16 Part Advantage |
| 28 | | SHAFT-PUSH BUTTON, CLOCK/TIMER/EOC, (11) | - |
| 28 | | 316015103NLA PUSH BUTTON, GRAY, CLOCK/TIMER/EOC, (11) | Discontinued |
| 36 | | KNOB-CONTROL, WHITE | - |
| 40 | – | 316062330 PANEL-MANIFOLD, WHITE | - |
| 46 |  | 318228310replaces 316040201 LENS-LIGHT/LAMP, INDICATOR, RED, (4) | $6.54 Part Advantage |
| 54 |  | 5304528972replaces 316049800 SWITCH-INFINITE, DUAL ELEMENT, (2) | $25.83 Part Advantage |
| 54 |  | 316436001replaces 316021501 Switch,infinite ,large element | $22.25 Part Advantage |
| 54 |  | 316436000replaces 316021500 Switch,infinite ,small element | $42.55 Part Advantage |
| 60 |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| 69 | | 5304501948replaces 5303292005 SCREW-SWITCH MTG, 8-32 X 5/32, (2) (NOT ILLUSTRATED) | - |
| *85920 | | 316035700NLA LENS-LIGHT/LAMP, INDICATOR (NON-ILLUSTRATED) | Discontinued |
| *85921 | | SCREW, TRUSS HEAD, 8-18 X 1/2 10-16 X 1/2 (NON-ILLUSTRATED) | - |
