Model
Tappan TEF367CCTC
Range/Oven, Electric, Freestanding, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TEF367CCTCRange/Oven, Electric, Freestanding, 30 Inch
4 diagrams116 parts

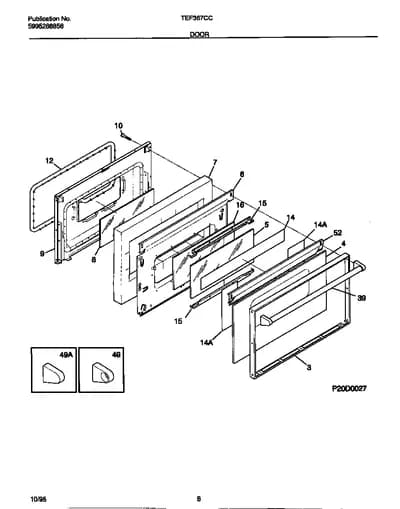

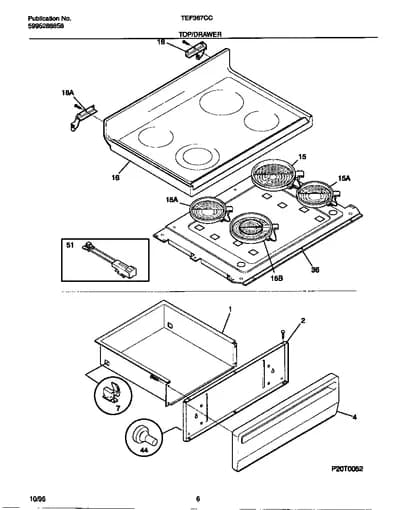

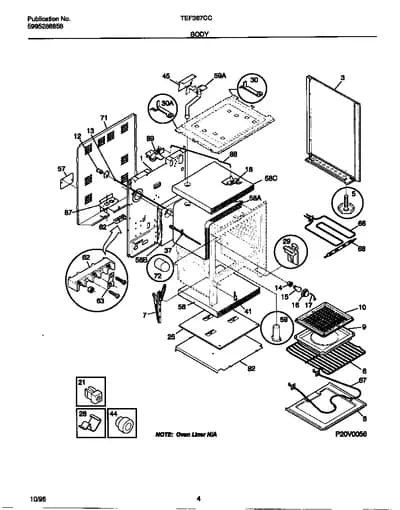

Parts Sections (4)
Diagram

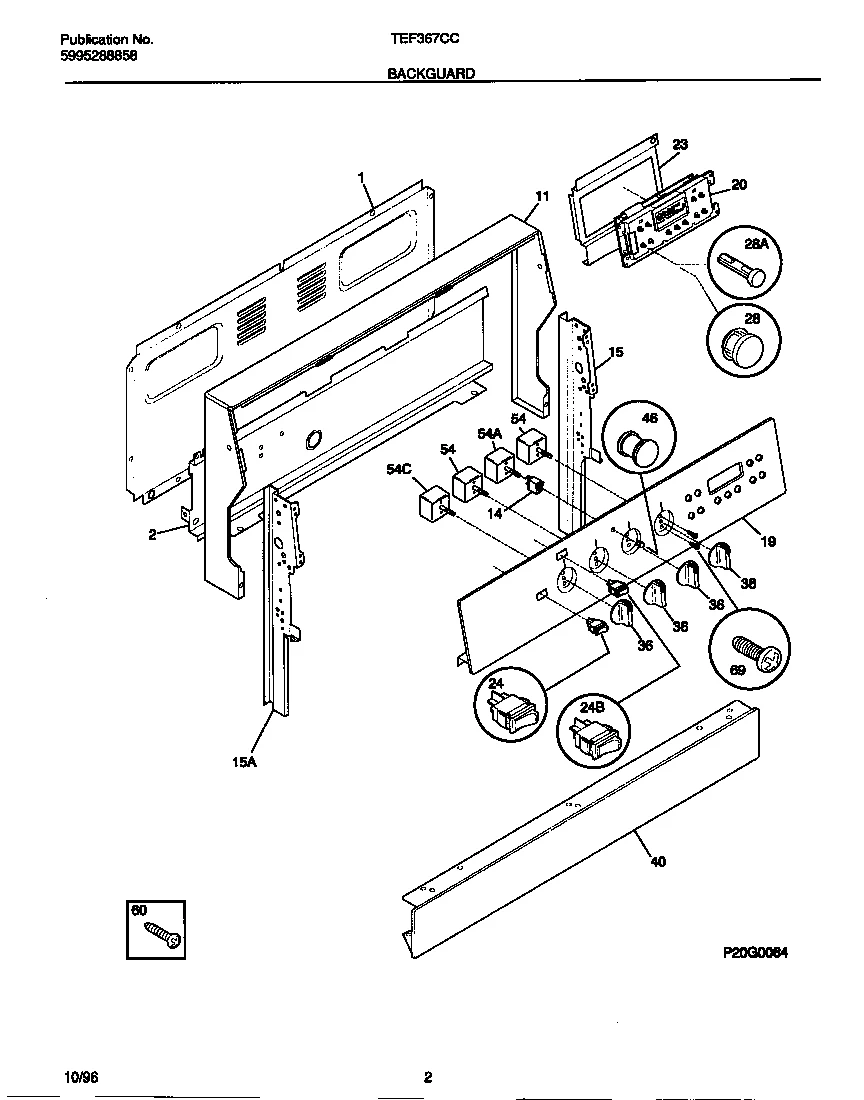

BACKGUARD
Parts in BACKGUARD
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 316081600replaces 316081601 Shield-backguard,painted ,black ,rear wall | - |
| 2 | – | 316015905 SHIELD-BACKGUARD, INNER | - |
| 11 | – | 316061843 TRIM-WRAPPER, ALMOND | - |
| 14A |  | LIGHT/LAMP, INDICATOR, 250 V (NOT ILLUSTRATED) | $45.42 Parts Dr |
| 14B | – | 316034802 LIGHT-INDICATOR, HOT SURFACE | - |
| 15 | – | 316023110 SUPPORT-BACKGROUND, RH | - |
| 15 | | 316023109replaces 316023111 SUPPORT-BACKGUARD, LH | - |
| 19 | – | 316076511 PANEL-CONTROL, METAL, ALMOND | - |
| 20 | – | 316064500 CLOCK/TIMER, EOC | - |
| 23 | – | 316079003 BRACKET-CLOCK MTG | - |
| 24 | – | 316076302 SWITCH-ROCKER, ALMOND, DUAL ELEMENT | - |
| 24 | – | 316005608 SWITCH-ROCKER, ALMOND, OVEN LIGHT | - |
| 28 | | 316015102replaces 316015105 PUSH BUTTON, CLOCK/TIMER/EOC, ALMOND, (11) | - |
| 28 | | SHAFT-PUSH BUTTON, CLOCK/TIMER/EOC, (11) | - |
| 36 | – | 316015208 KNOB-CONTROL, ALMOND | - |
| 40 | | PANEL-MANIFOLD, ALMOND | - |
| 46A | | 316035700NLA LENS-LIGHT/LAMP, INDICATOR (NON-ILLUSTRATED) | Discontinued |
| 46B |  | 318228310replaces 316040201 LENS-LIGHT/LAMP, INDICATOR, RED, (4) | $6.54 Part Advantage |
| 54 |  | 316436000replaces 316021500 Switch,infinite ,small element | $42.55 Part Advantage |
| 54 |  | 316436001replaces 316021501 Switch,infinite ,large element | $22.25 Part Advantage |
| 54 |  | 5304528972replaces 316049800 SWITCH-INFINITE, DUAL ELEMENT, (2) | $25.83 Part Advantage |
| 60 |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| 69 | | 5304501948replaces 5303292005 SCREW-SWITCH MTG, 8-32 X 5/32, (2) (NOT ILLUSTRATED) | - |
| *78040 | | SCREW, TRUSS HEAD, 8-18 X 1/2 10-16 X 1/2 (NON-ILLUSTRATED) | - |
