Model
Tappan TEO356BFD2
Range/Micro Combo, Over/Under, Electric, Freestanding
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TEO356BFD2Range/Micro Combo, Over/Under, Electric, Freestanding
7 diagrams174 parts
Parts Sections (7)
Diagram

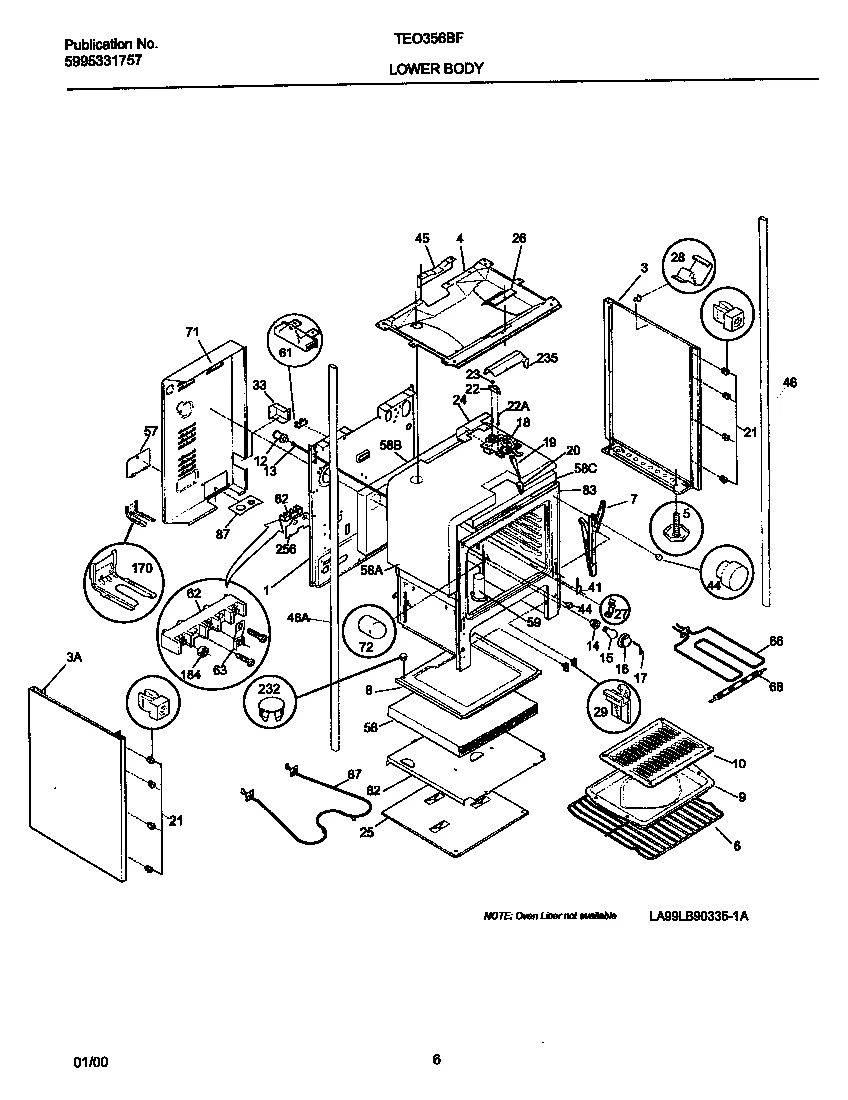

LOWER BODY
Parts in LOWER BODY
52 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 9 |  | Pan,broilerOPTIONAL ACCESS0RY | Discontinued |
| 10 | | Insert,broiler panOPTIONAL ACCESS0RY | Discontinued |
| 12 | | 316027702NLA SWITCH-OVEN LIGHT (NOT ILLUSTRATED) | Discontinued |
| 13 | | ROD-LIGHT SWITCH/DOOR (NOT ILLUSTRATED) | - |
| 14 |  | Receptacle,oven light | $36.83 Part Advantage |
| 15 |  | 316538904replaces 3201908 LAMP-OVEN LIGHT, LARGE AND SMALL OVEN | $9.61 Part Advantage |
| 16 |  | 5304524341replaces 08011086 GLASS - OVEN LIGHT LENS | $8.94 Part Advantage |
| 17 |  | Retainer,lens | $38.42 Parts Dr |
| 18 | | LATCH-DOOR, BIMETAL | - |
| 19 | | HANDLE-LATCH | - |
| 20 | | HANDLE-LATCH | - |
| 21 | | SUPPORT-OVEN BOTTOM (2) (NON-ILLUSTRATED) | $3.95 ApplianceParts Pro |
| 22 | | STUD SPACER (2) (NON-ILLUSTRATED) | - |
| 22 | – | 08067781 SWITCH, LATCHING | - |
| 23 | | FASTENER-PUSH ON (3) | - |
| 24 | | SHIELD, BIMETAL LATCH (NON-ILLUSTRATED) | - |
| 25 | – | 5303289914 SHIELD-HEAT LOWER | - |
| 26 | – | 08067757 Cover Plate,burner box | - |
| 27 | | CLIP-THERMAL BULB (2) | - |
| 28 | | COVER - REAR WALL | - |
| 29 |  | GLIDE UTILITY DRAWER (NON-ILLUSTRATED) | $1.59 Part Advantage |
| 41 | | 3131570NLA COVER-HINGE CUTOUT (2) | Discontinued |
| 44 |  | BUMPER, RUBBER | $20.56 RepairClinic |
| 45 | – | 5303289854 COVER-FLUE | - |
| 46 | – | 5303208643 TUBE-POST, RH (NOT ILLUSTRATED) | - |
| 46 | – | 5303208642 TUBE-POST LH | - |
| 57 | | 5304465312replaces 316081100 Cover,access | - |
| 58 | | 316218304replaces 316054200 INSUL-OVEN-BACK (NON-ILLUSTRATED) | - |
| 58 |  | 316403803replaces 3200847 INSULATION-LOWER (NON-ILLUSTRATED) | $29.99 Parts Dr |
| 58 | | INSULATION TOP WRAPPER (NON-ILLUSTRATED) | - |
| 58 | | 316047708NLA Insulation,2`` ,oven wrapper | Discontinued |
| 59 | | TUBE-OVEN VENT | - |
| 61 | | FUSE, THERMAL CUTOUT | - |
| 62 |  | 5304409888replaces 316056000 Terminal Block | $14.73 Part Advantage |
| 63 | – | 5301145190 Plate,grounding strap | - |
| 66 |  | ELEMENT-BROILER LOWER | $114.15 Part Advantage |
| 67 |  | Element,bake ,4 pass | $18.30 Part Advantage |
| 68 |  | 316203400replaces 316075300 SUPPORT-ELEMENT, BROIL | $48.95 ApplianceParts Pro |
| 71 | | Shield-rear wall,galv steel | - |
| 72 | | 08067758replaces 5303285692 COVER-LIGHT/SWITCH ROD (NOT ILLUSTRATED) | - |
| 82 | – | 5303289913 SHIELD, INSULATION | - |
| 83 | – | 316054310 LINER WRAPPER | - |
| 87 |  | Bracket,cable mtg | - |
| 170 |  | 316112005replaces 316107200 Bracket,anti-tip | $9.05 Part Advantage |
| 184 | – | 5303289902 NUT | - |
| 232 | | PLUG-BUTTON (2) (NON-ILLUSTRATED) | $5.65 RepairClinic |
| 235 | – | 3051413 SHIELD-LATCH BI-METAL (NON-ILLUSTRATED) | - |
| 256 | | 316085600NLA INSULATOR-SHIELD THERMOSTT | Discontinued |
| *85360 |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| *85361 |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| *85362 | | WASHER-HINGE, BLACK (NOT ILLUSTRATED) | - |
| *85363 |  | Screw,wafer head ,8-32T x 0.500 ,black ,44* | $10.95 ApplianceParts Pro |
