Model
Tappan TEO356BFD3
Range/Micro Combo, Over/Under, Electric, Freestanding
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TEO356BFD3Range/Micro Combo, Over/Under, Electric, Freestanding
7 diagrams181 parts
Parts Sections (7)
Diagram

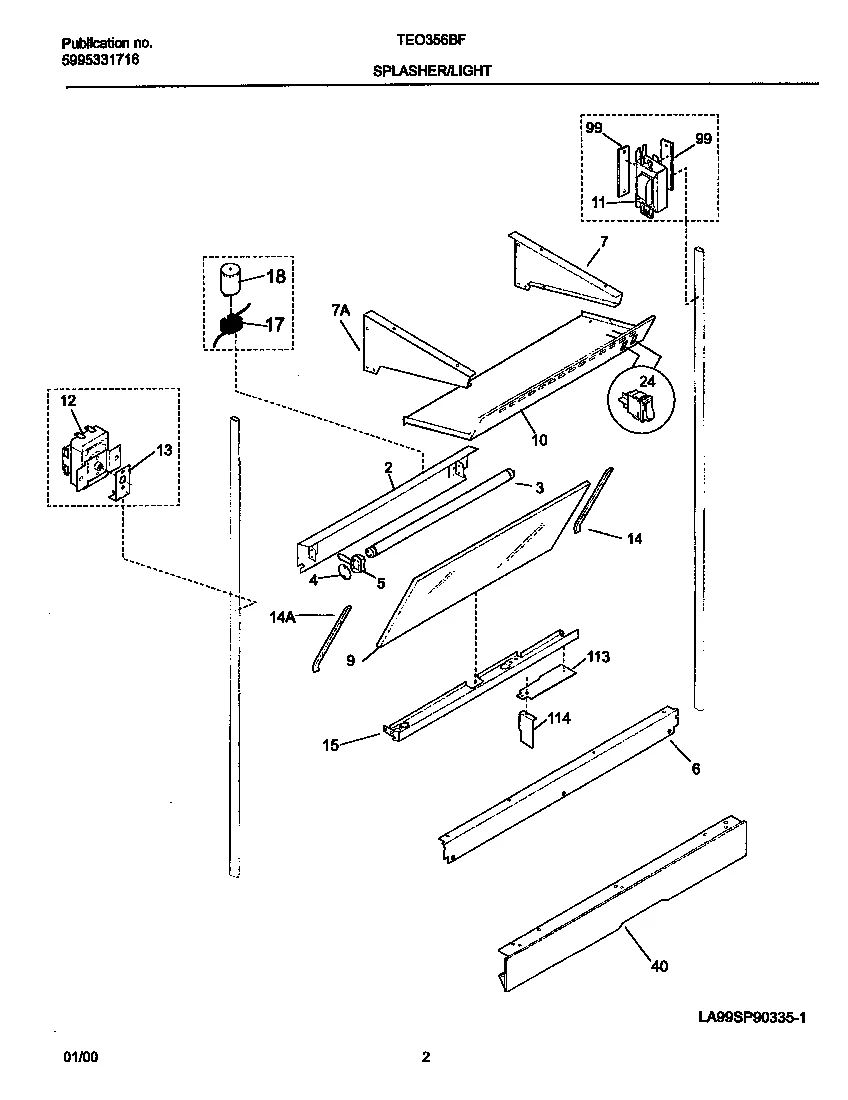

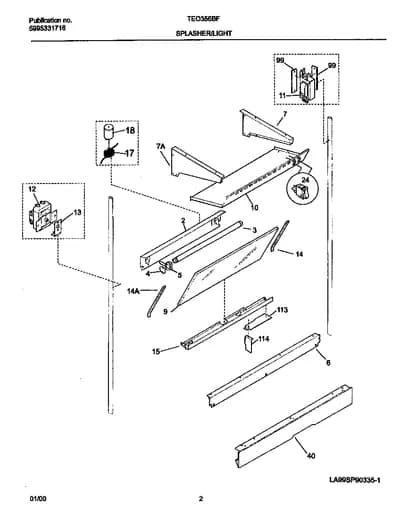

SPLASHER
Parts in SPLASHER
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 | – | 5303208612 REFLECTOR, WORK LIGHT | - |
| 3 |  | LAMP-FLUORESCENT, BACKGUARD | - |
| 4 | | INSULATOR FLUORESCENT LIGHT RECEPT (2) | - |
| 5 | | RECEPTACLE | - |
| 6 | – | 3051465 TRIM VENT | - |
| 7 | – | 3200527 SUPPORT-UPPER OVEN, LH (NOT ILLUSTRATED) | - |
| 7 | – | 3200526 SUPPORT-UPPER OVEN, RH | - |
| 9 | | 3200496NLA GLASS-SPLASHER-O/U | Discontinued |
| 10 | | 316012900NLA PANEL-SPLASHER-UPPER | Discontinued |
| 11 |  | BALLAST-LAMP | - |
| 12 | | THERMOSTAT-OVEN, SC | - |
| 13 | – | 3051348 ANGLE, SUPPORT, SELF CONTAINED THERMOSTAT | - |
| 14 | – | 08010549 TRIM-O/U SPLASHER GLASS FILLER | - |
| 14 | – | 5303269815 TRIM-SPLASHER, LH (NOT ILLUSTRATED) | - |
| 15 | | TRIM-SPLASHER FILLER | - |
| 17 | | RECEPTACLE-STARTER | - |
| 18 | | 3206218NLA STARTER-FLUOR LIGHT BLACK | Discontinued |
| 24 |  | SWITCH, OVEN LIGHT, ROCKER TYPE | $42.52 ApplianceParts Pro |
| 40 | | PANEL-MANIFOLD | - |
| 99 |  | SPACER-END CAP (NOT ILLUSTRATED) | - |
| 113 | – | 318124800 SHIELD- | - |
| 114 | – | 318124700 HIDDEN WIRES SHIELD | - |
