Model
Tappan TEO356BFW1
Range/Micro Combo, Over/Under, Electric, Freestanding
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TEO356BFW1Range/Micro Combo, Over/Under, Electric, Freestanding
7 diagrams187 parts
Parts Sections (7)
Diagram

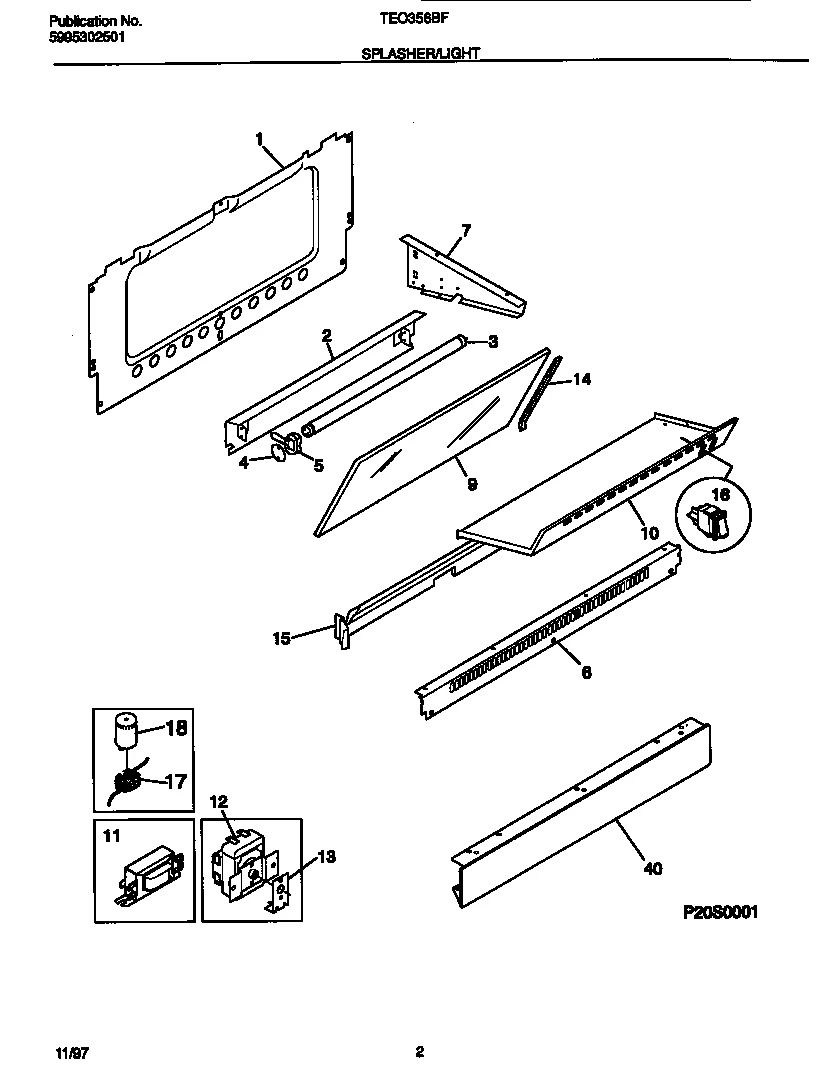

LIGHT
Parts in LIGHT
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 3204441 BACK-O/U MID WALL | - |
| 2 | – | 5303208612 REFLECTOR, WORK LIGHT | - |
| 3 |  | LAMP-FLUORESCENT, BACKGUARD | - |
| 4 | | INSULATOR FLUORESCENT LIGHT RECEPT (2) | - |
| 5 | | RECEPTACLE-FLUOR LIGHT (2) | - |
| 6 | – | 3051465 TRIM VENT | - |
| 7A | – | 3200526 SUPPORT-UPPER OVEN, RH | - |
| 7B | – | 3200527 SUPPORT-UPPER OVEN, LH (NOT ILLUSTRATED) | - |
| 9 | | 3200496NLA GLASS-SPLASHER-O/U | Discontinued |
| 10 | | 316012900NLA PANEL-SPLASHER-UPPER | Discontinued |
| 11 |  | BALLAST-LAMP | - |
| 12 | | THERMOSTAT-OVEN, SC | - |
| 13 | – | 3051348 ANGLE, SUPPORT, SELF CONTAINED THERMOSTAT | - |
| 14A | – | 08010549 TRIM-O/U SPLASHER GLASS FILLER | - |
| 14B | – | 5303269815 TRIM-SPLASHER, LH (NOT ILLUSTRATED) | - |
| 15 | | TRIM-SPLASHER FILLER | - |
| 16 |  | SWITCH, OVEN LIGHT, ROCKER TYPE | $42.52 ApplianceParts Pro |
| 17 | | RECEPTACLE-STARTER | - |
| 18A | | 3206218NLA STARTER-FLUOR LIGHT BLACK | Discontinued |
| 18B | – | 5303286753 SCREW-SOCKET, STARTER (NOT ILLUSTRATED) | - |
| 40 | | PANEL-MANIFOLD | - |
| *28640 | – | 08067960 FASTENER, CLIP CABLE | - |
| *28641 |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
