Model
Tappan TEO356BHW2
Range/Micro Combo, Over/Under, Electric, Freestanding
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TEO356BHW2Range/Micro Combo, Over/Under, Electric, Freestanding
7 diagrams155 parts

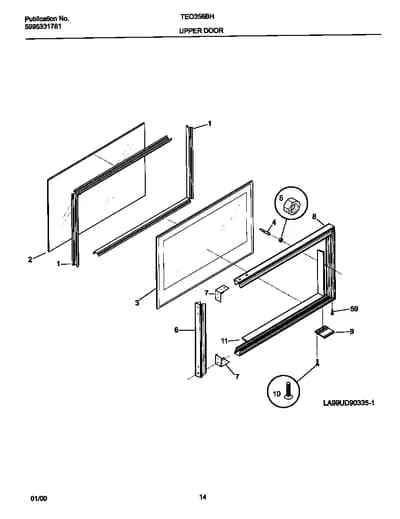

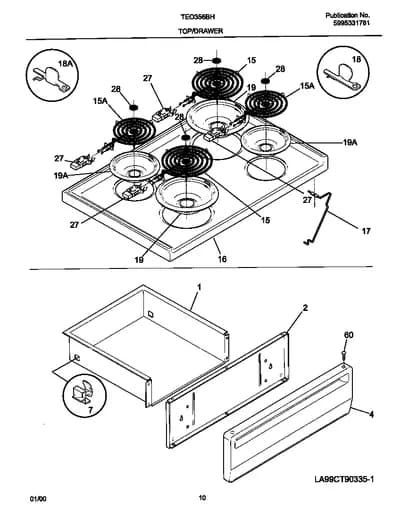

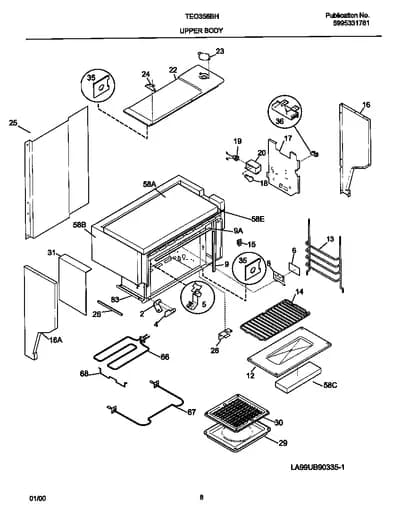

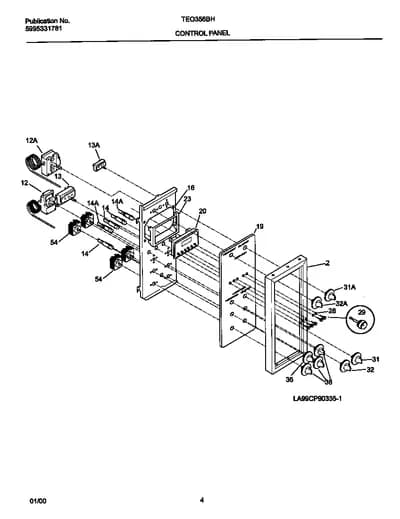

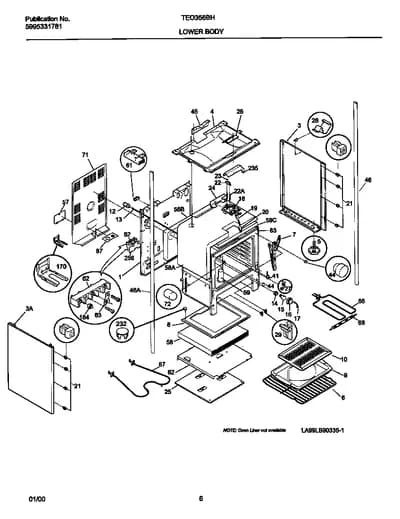

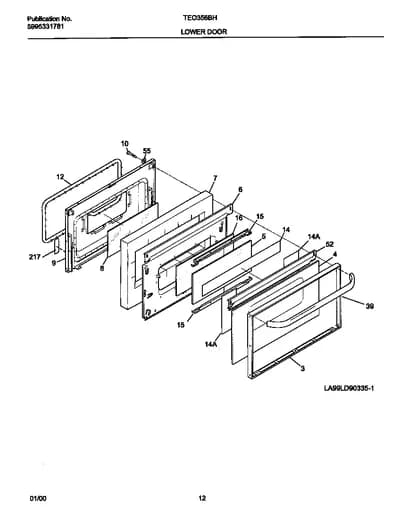

Parts Sections (7)
Diagram

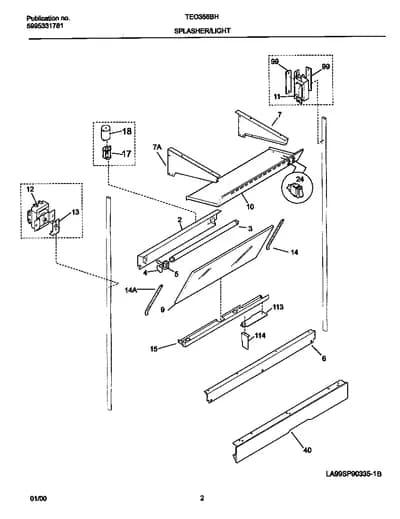

SPLASHER
Parts in SPLASHER
67 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 | – | 318189400 REFLECTOR,WORK LIGHT | - |
| 3 |  | LAMP-FLUORESCENT, BACKGUARD | - |
| 4 | | INSULATOR FLUORESCENT LIGHT RECEPT (2) | - |
| 4 | – | 5303271658 BURNER BOX | - |
| 5 | | 316107300NLA SCREW-LEVELLING | Discontinued |
| 5 | | RECEPTACLE | - |
| 6 | – | 3051465 TRIM VENT | - |
| 6 |  | Rack,oven ,(2) | $66.31 Parts Dr |
| 7 | – | 3200527 SUPPORT-UPPER OVEN, LH (NOT ILLUSTRATED) | - |
| 7 |  | 316007002NLA CHANNEL-DOOR HINGE (2) | Discontinued |
| 7 | – | 3200526 SUPPORT-UPPER OVEN, RH | - |
| 8 | | 3203540NLA BOTTOM-OVEN, ELECTRIC | Discontinued |
| 9 | | PAN-BROILER | Discontinued |
| 9 | | 3200496NLA GLASS-SPLASHER-O/U | Discontinued |
| 10 | | 316012900NLA PANEL-SPLASHER-UPPER | Discontinued |
| 10 | | INSERT-BROILER PAN | Discontinued |
| 11 |  | BALLAST-LAMP | - |
| 12 | | THERMOSTAT-OVEN, SC | - |
| 13 | – | 3051348 ANGLE, SUPPORT, SELF CONTAINED THERMOSTAT | - |
| 14 | – | 08010549 TRIM-O/U SPLASHER GLASS FILLER | - |
| 14 |  | Receptacle,oven light | $36.83 Part Advantage |
| 14 | – | 5303269815 TRIM-SPLASHER, LH (NOT ILLUSTRATED) | - |
| 15 | | TRIM-SPLASHER FILLER | - |
| 15 |  | 316538904replaces 5303013071 LAMP/LIGHT BULB, OVEN | $9.61 Part Advantage |
| 16 |  | 5304524341replaces 08011086 GLASS - OVEN LIGHT LENS | $8.94 Part Advantage |
| 17 | | Receptacle,starter | - |
| 17 |  | Retainer,lens | $38.42 Parts Dr |
| 18 | | LATCH-DOOR, BIMETAL | - |
| 18 | | STARTER-FLUOR LIGHT | - |
| 19 | | HANDLE-LATCH | - |
| 20 | | HANDLE-LATCH | - |
| 21 | | SUPPORT-OVEN BOTTOM (2) (NON-ILLUSTRATED) | $3.95 ApplianceParts Pro |
| 22 | – | 08067781 SWITCH, LATCHING | - |
| 22 | | STUD SPACER (2) (NON-ILLUSTRATED) | - |
| 23 | | FASTENER-PUSH ON (3) | - |
| 24 |  | SWITCH, OVEN LIGHT, ROCKER TYPE | $42.52 ApplianceParts Pro |
| 26 | – | 08067757 Cover Plate,burner box | - |
| 27 | | CLIP-THERMAL BULB (2) | - |
| 28 | | COVER - REAR WALL | - |
| 29 |  | GLIDE UTILITY DRAWER (NON-ILLUSTRATED) | $1.59 Part Advantage |
| 40 | | PANEL-MANIFOLD | - |
| 41 | | 3131570NLA COVER-HINGE CUTOUT (2) | Discontinued |
| 44 |  | BUMPER, RUBBER | $20.56 RepairClinic |
| 46 | – | 5303208643 TUBE-POST, RH (NOT ILLUSTRATED) | - |
| 46 | – | 5303208642 TUBE-POST LH | - |
| 57 | | 5304465312replaces 316081100 Cover,access | - |
| 58 | | INSULATION TOP WRAPPER (NON-ILLUSTRATED) | - |
| 58 | | 316047708NLA Insulation,2`` ,oven wrapper | Discontinued |
| 58 | | 316218304replaces 316054200 INSUL-OVEN-BACK (NON-ILLUSTRATED) | - |
| 58 |  | 316403803replaces 3200847 INSULATION-LOWER (NON-ILLUSTRATED) | $29.99 Parts Dr |
| 59 | | TUBE-OVEN VENT | - |
| 63 | – | 5301145190 Plate,grounding strap | - |
| 66 |  | ELEMENT-BROILER LOWER | $114.15 Part Advantage |
| 67 |  | Element,bake ,4 pass | $18.30 Part Advantage |
| 68 |  | 316203400replaces 316075300 SUPPORT-ELEMENT, BROIL | $48.95 ApplianceParts Pro |
| 72 | | 08067758replaces 5303285692 COVER-LIGHT/SWITCH ROD (NOT ILLUSTRATED) | - |
| 82 | – | 5303289913 SHIELD, INSULATION | - |
| 87 |  | Bracket,cable mtg | - |
| 99 |  | SPACER-END CAP (NOT ILLUSTRATED) | - |
| 113 | – | 318124800 SHIELD- | - |
| 114 | – | 318124700 HIDDEN WIRES SHIELD | - |
| 170 |  | 316112005replaces 316107200 Bracket,anti-tip | $9.05 Part Advantage |
| 184 | – | 5303289902 NUT | - |
| 232 | | PLUG-BUTTON (2) (NON-ILLUSTRATED) | $5.65 RepairClinic |
| 235A | – | 3051413 SHIELD-LATCH BI-METAL (NON-ILLUSTRATED) | - |
| 235B | | SHIELD, BIMETAL LATCH (NON-ILLUSTRATED) | - |
| 256 | | 316085600NLA INSULATOR-SHIELD THERMOSTT | Discontinued |
