Model
Tappan TGF317DUA
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF317DUARange/Oven, Gas, Freestanding, 30 Inch
5 diagrams114 parts

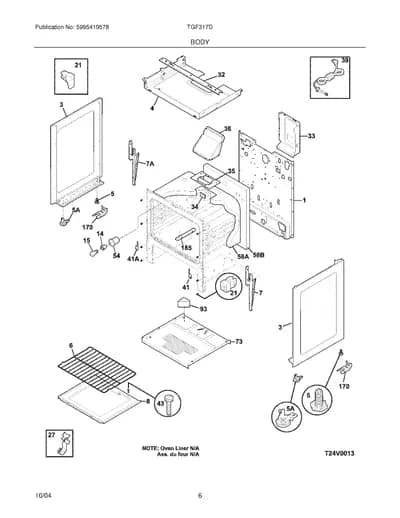

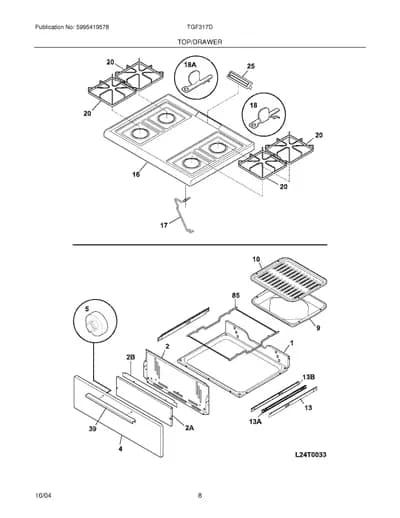

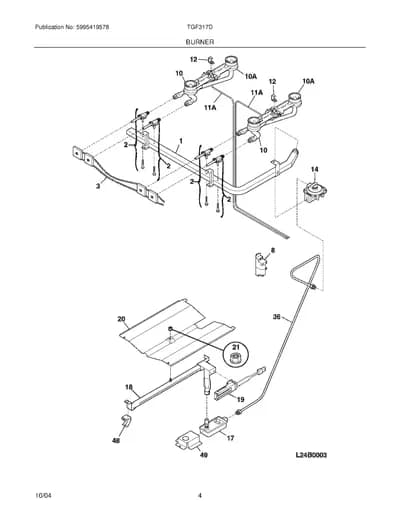

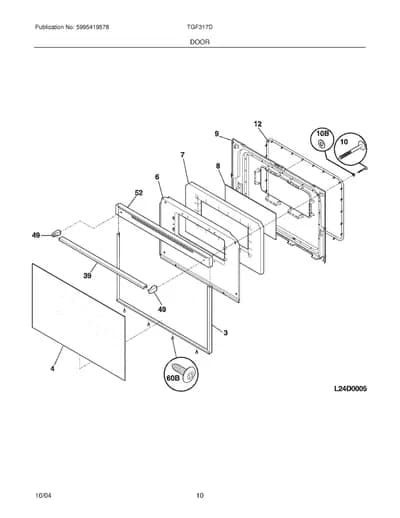

Parts Sections (5)
Diagram

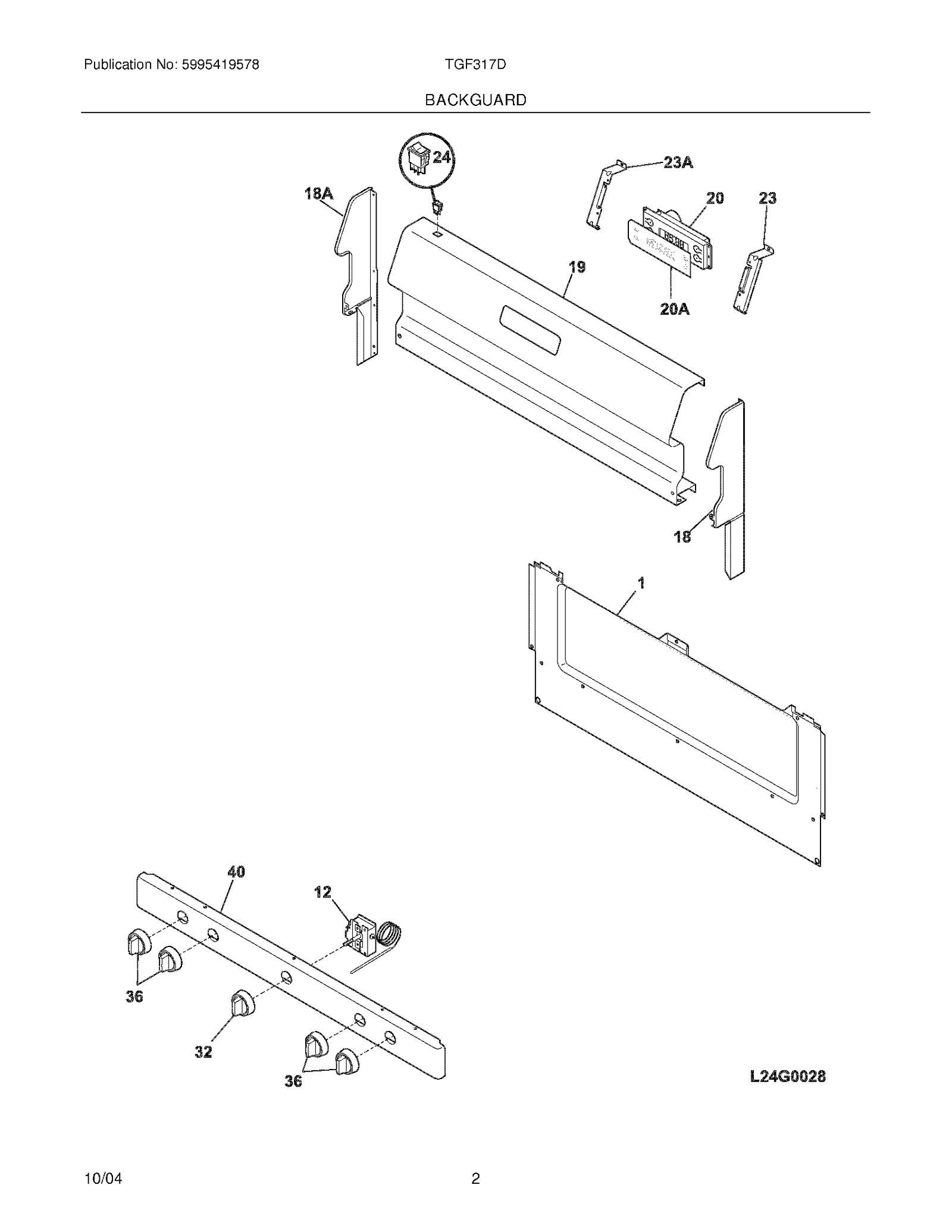

BACKGUARD
Parts in BACKGUARD
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | SHIELD, BACKGUARD, REAR WALL | - |
| 12 |  | 316032411replaces 316032404 THERMOSTAT | $59.24 Part Advantage |
| 18 | | END CAP (BLACK) (RH) | $72.56 ApplianceParts Pro |
| 18A | | END CAP (BLACK) (LH) | - |
| 19 | – | 316263315 Panel,backguard ,black | - |
| 20 | | Clock/timer,TOD | Discontinued |
| 20A | | OVERLAY-ETD BLK. TAPPAN,20x | - |
| 23 | | 316263500NLA BRACKET, CLOCK MTG, RH | Discontinued |
| 23A | | BRACKET, CLOCK MTG, LH | - |
| 24 |  | 5304527841replaces 316246001 Switch,rocker ,black ,oven light | $6.16 Part Advantage |
| 32 |  | KNOB-THERMOSTAT,BLACK | $44.95 ApplianceParts Pro |
| 36 |  | 316009008NLA Knob,top valve ,black ,(4) | Discontinued |
| 40 | – | 316201804 Panel,manifold ,black | - |
| NI |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| NI |  | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
| NI | | INSULATOR | - |
| NI | | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
