Model
Tappan TGF317ESF
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF317ESFRange/Oven, Gas, Freestanding, 30 Inch
5 diagrams110 parts
Parts Sections (5)
Diagram

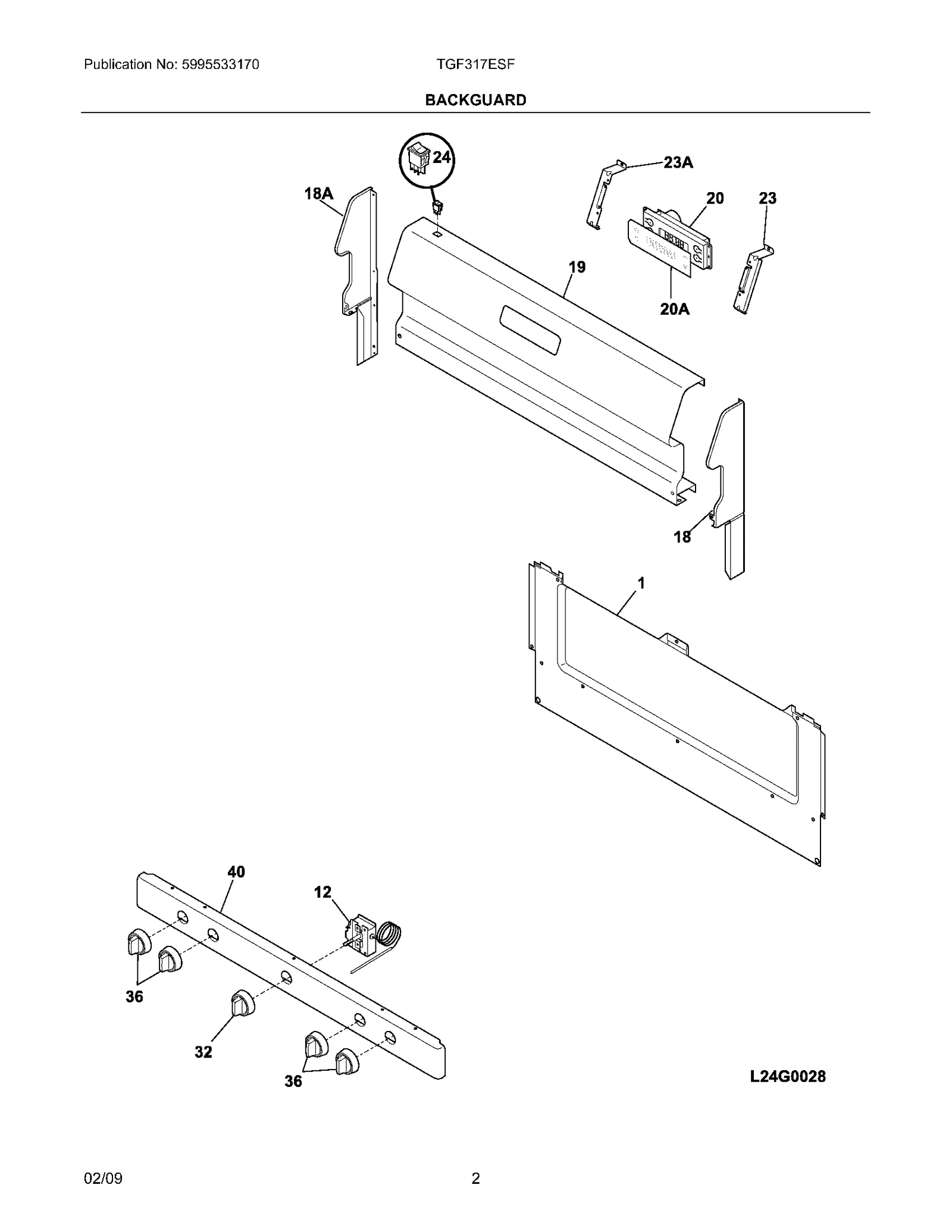

BACKGUARD
Parts in BACKGUARD
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | SHIELD, BACKGUARD, REAR WALL | - |
| 12 |  | Thermostat | $59.24 Part Advantage |
| 18 | | END CAP (WHITE) (RH) | - |
| 18A |  | END CAP (WHITE) (LH) | $75.37 ApplianceParts Pro |
| 19 | – | 316263355 Panel,backguard ,white | - |
| 20 | | 316440000NLA Clock/Timer | Discontinued |
| 20A | | Overlay-clock,white ,20x | - |
| 23 | | 316263500NLA BRACKET, CLOCK MTG, RH | Discontinued |
| 23A | | BRACKET, CLOCK MTG, LH | - |
| 24 |  | 5304527842replaces 316448701 SWITCH, ROCKER, WHITE, OVEN LIGHT | $6.16 Part Advantage |
| 32 |  | KNOB, THERMOSTAT, WHITE | $33.21 Part Advantage |
| 36 |  | KNOB, TOP VALVE, WHITE, (4) | $29.03 Parts Dr |
| 40 | | PANEL, MANIFOLD, WHITE | - |
| NI | | INSULATOR | - |
| NI |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
