Model
Tappan TGF320DUA
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF320DUARange/Oven, Gas, Freestanding, 30 Inch
5 diagrams109 parts
Parts Sections (5)
Diagram

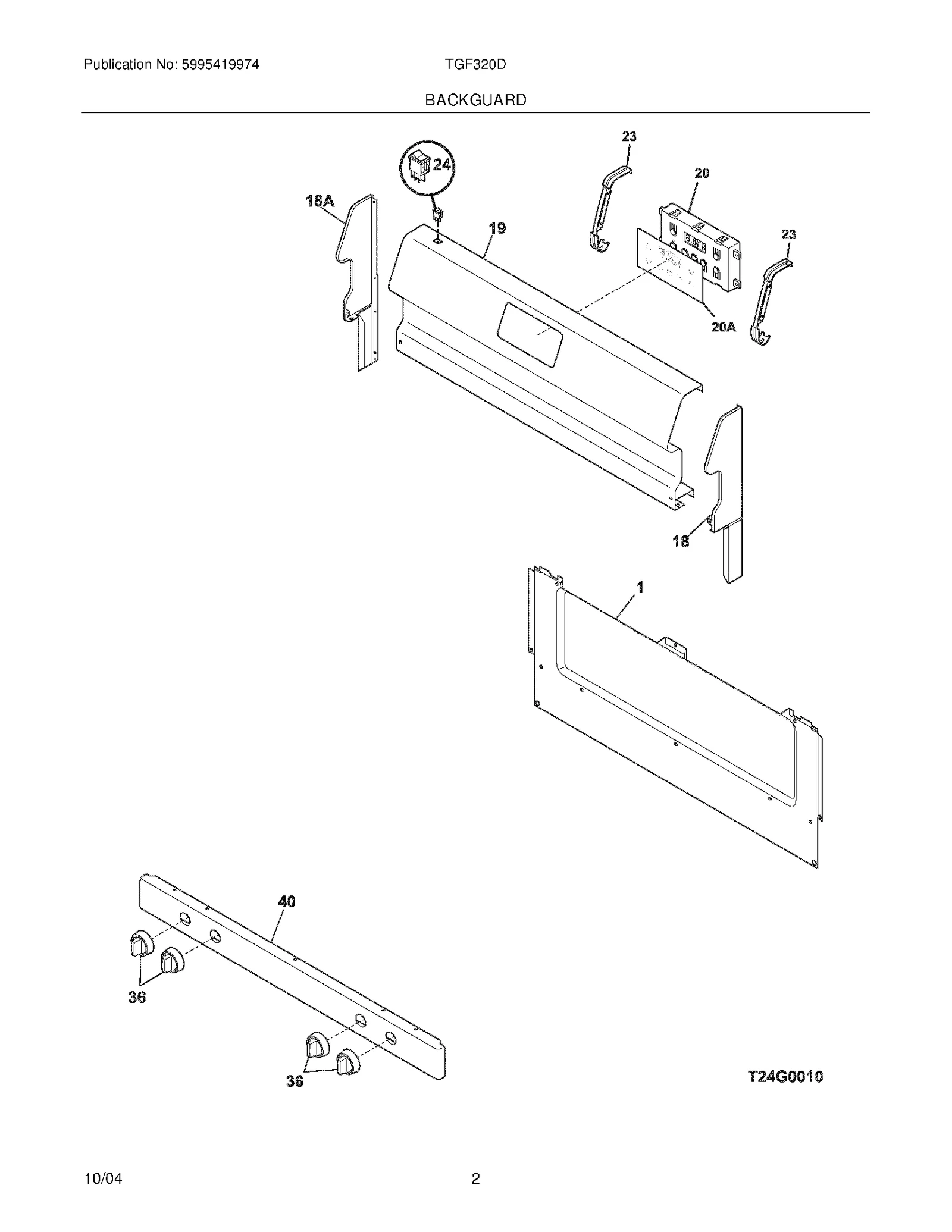

BACKGUARD
Parts in BACKGUARD
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | SHIELD, BACKGUARD, REAR WALL | - |
| 18 | | END CAP (BLACK) (RH) | $72.56 ApplianceParts Pro |
| 18A | | END CAP (BLACK) (LH) | - |
| 19 | – | 316263344 Panel,backguard ,black | - |
| 20 |  | 5304518661replaces 316222802 Clock/Timer,electronic ,ES100 | $89.19 Part Advantage |
| 20A |  | Overlay,clock ,black | $31.53 Parts Dr |
| 23 | – | 316217500 Bracket,clock mtg ,(2) | - |
| 24 |  | 5304527841replaces 316246001 Switch,rocker ,black ,oven light | $6.16 Part Advantage |
| 36 |  | 316009008NLA Knob,top valve ,black ,(4) | Discontinued |
| 40 | – | 316201848 Panel,manifold ,black | - |
| NI |  | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
| NI | | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| NI |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| NI | | Screw,8-18 x 0.5 ,chrome | $8.20 Part Advantage |
