Model
Tappan TGF324BHWC
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF324BHWCRange/Oven, Gas, Freestanding, 30 Inch
5 diagrams111 parts

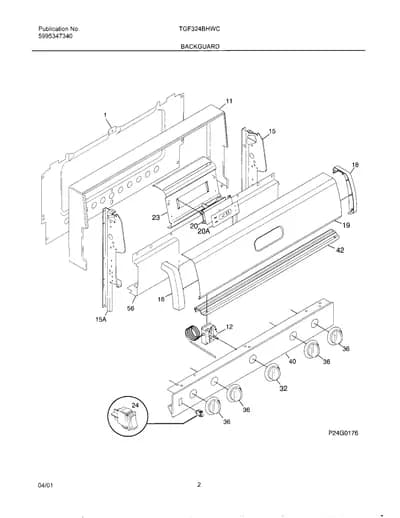

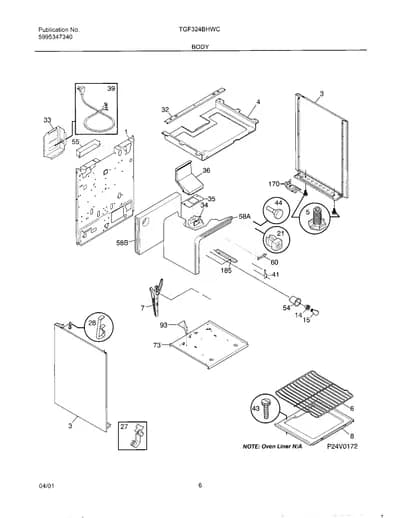

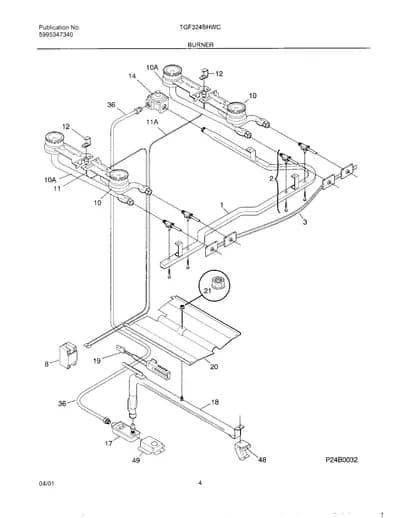

Parts Sections (5)
Diagram

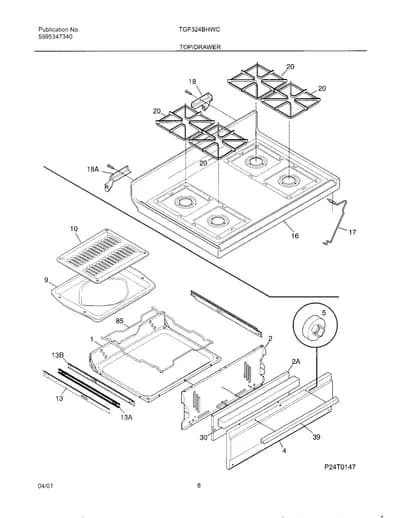

TOP/DRAWER
Parts in TOP/DRAWER
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Carriage,low broil | - |
| 2 | – | 316110101 LINER-LOW BROIL,ENAMELED | - |
| 2 | | 316541500replaces 316110800 Shield,broiler | - |
| 4 | | 316056205NLA PANEL-BROILER, WHITE | Discontinued |
| 5 |  | FASTENER, PUSH-IN NUT, NYLON, SPACER | - |
| 9 | | Pan,broilerOPTIONAL ACCESS0RY | Discontinued |
| 10 | | Insert,broiler panOPTIONAL ACCESS0RY | Discontinued |
| 13 | | Glide-low broil,outer | - |
| 13 | | Glide-Low Broil, Inner,inner | - |
| 13 | | Glide,low broil ,chassis | $17.10 RepairClinic |
| 16 | – | 5303285552 MAIN TOP, WHITE | - |
| 17 |  | Rod,support ,main top | $37.33 Part Advantage |
| 18 | | HINGE ASSY-LH-MAIN TOP | - |
| 18 | | 5303273062NLA HINGE ASSY-RH-MAIN TOP | Discontinued |
| 20 | | 316088900NLA GRATE, BLACK, (4) | Discontinued |
| 30 | – | 316111400 INSULATION-LOW BROIL,INSULATION | - |
| 39 | | HANDLE-DRAWER, BRUSHED CHROME | Discontinued |
| 85 | | 316115600NLA RACK, LOW BROIL | Discontinued |
| NI | | 5303280311NLA SCREW-10 32 X 5/16 WAF HD SDR, WAF HD SDR, 10 32 X 5/16 | Discontinued |
| NI |  | Screw,shoulder head ,8-18 x 5/8 ,(2) ,square drive | $11.35 ApplianceParts Pro |
| NI |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| NI |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| NI | | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
