Model
Tappan TGF324BHWE
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF324BHWERange/Oven, Gas, Freestanding, 30 Inch
5 diagrams115 parts

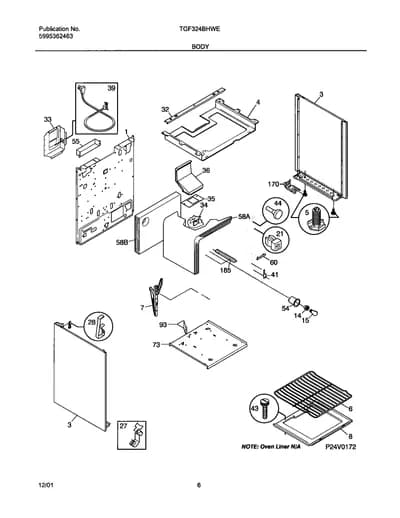

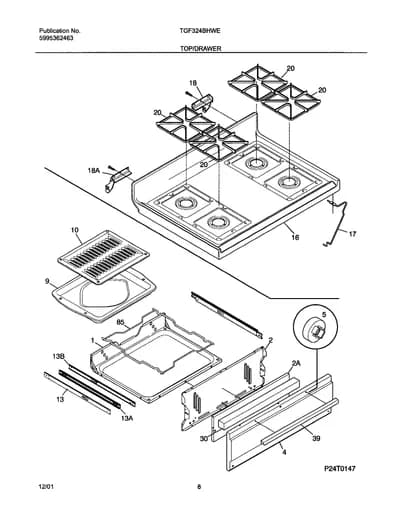

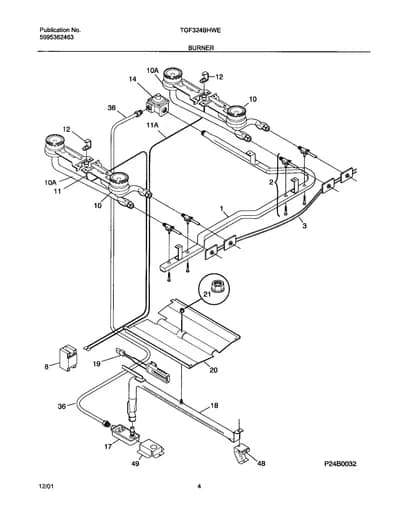

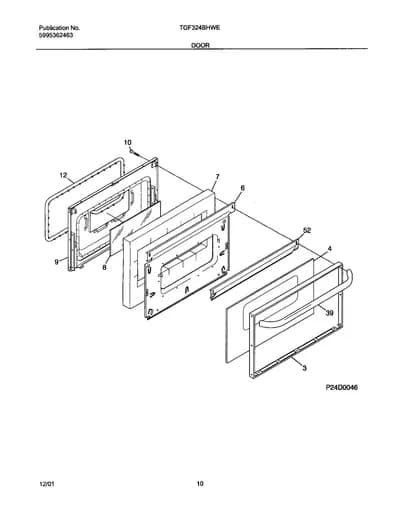

Parts Sections (5)
Diagram

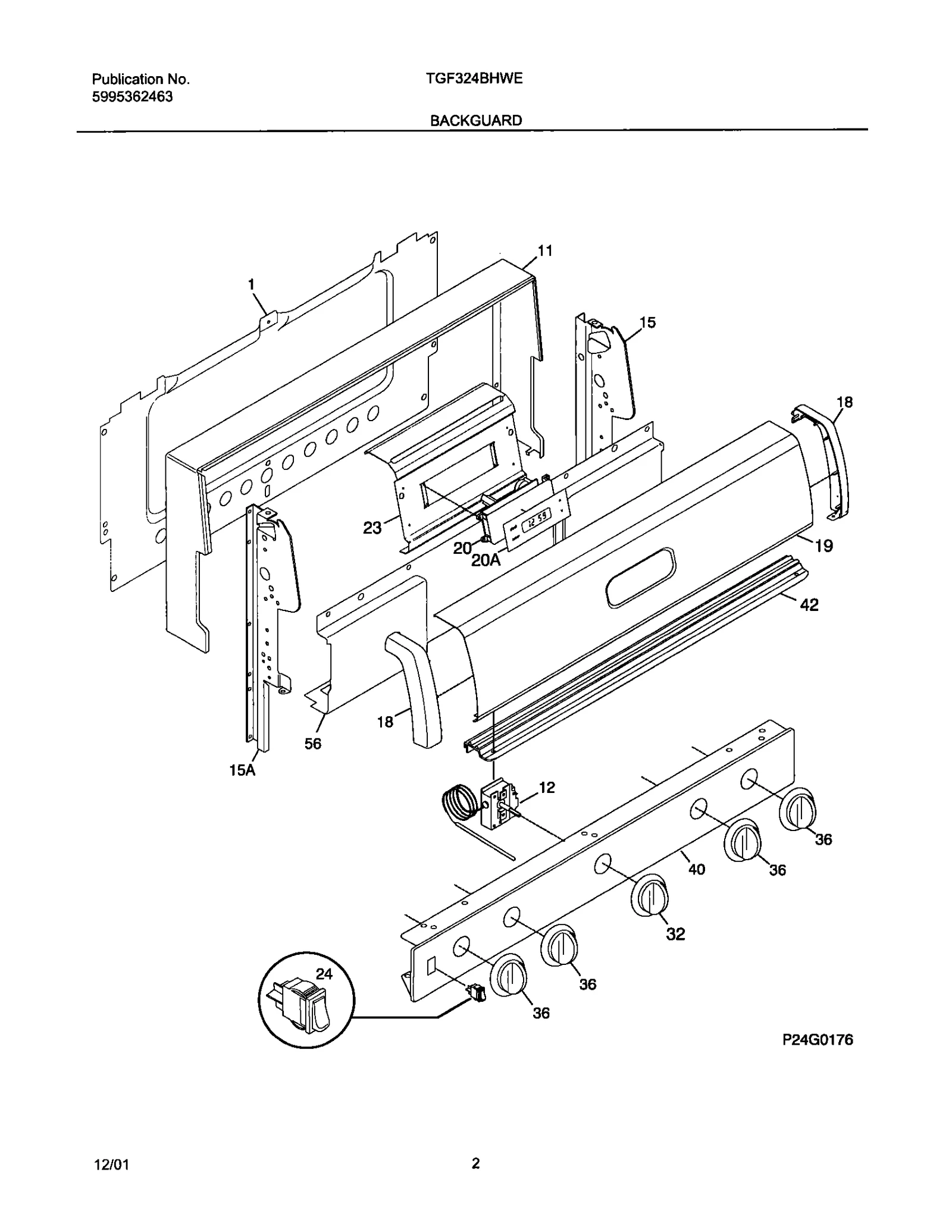

BACKGUARD
Parts in BACKGUARD
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 316028700 Shield-backguard,galv ,rear wall | - |
| 11 | – | 316061856 TRIM-WRAPPER,TEXTURED ,BLACK | - |
| 12 |  | 316032411replaces 316032404 THERMOSTAT | $59.24 Part Advantage |
| 15 |  | SUPPORT-BACKGUARD, RH | - |
| 15A | | Support,backguard ,LH | - |
| 18 |  | End Cap,black ,RH & LH | - |
| 19 | | Panel,backguard ,black | - |
| 20 | | Clock/timer,TOD | Discontinued |
| 20A | | OVERLAY-ETD BLK. TAPPAN,20x | - |
| 23 | | Bracket-timer (TGF324BHWB) | - |
| 24 |  | 5304527841replaces 316118100 Switch,oven light ,black ,rocker | $6.16 Part Advantage |
| 32 |  | 316109506NLA Knob,thermostat ,black | Discontinued |
| 36 | | Knob,top valve ,black ,(4) | - |
| 40 | | Panel-manifold,black | - |
| 42 | – | 316055202 EXTRUSION, BOTTOM TRIM | - |
| 56 | – | 316074907 DEFLECTOR-FLUE, BLACK | - |
| NI |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| NI |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| NI | | INSULATOR | - |
| NI | | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
