Model
Tappan TGF326WHTD
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF326WHTDRange/Oven, Gas, Freestanding, 30 Inch
5 diagrams120 parts
Parts Sections (5)
Diagram

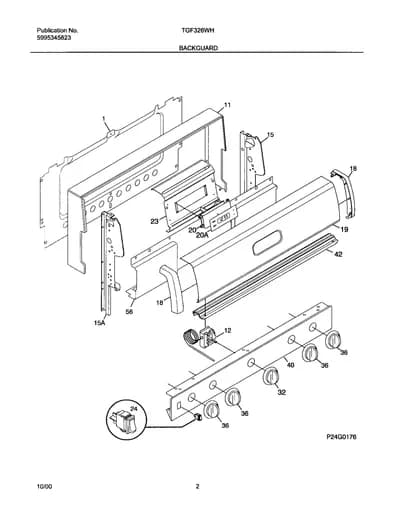

BACKGUARD
Parts in BACKGUARD
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 316028700 Shield-backguard,galv ,rear wall | - |
| 11 | – | 316061858 TRIM-WRAPPER,TEXTURED ,ALMOND | - |
| 12 |  | 316032411replaces 316032404 THERMOSTAT | $59.24 Part Advantage |
| 15 |  | SUPPORT-BACKGUARD, RH | - |
| 15A | | Support,backguard ,LH | - |
| 18 | | 5303935173NLA End Cap,almond ,RH & LH | Discontinued |
| 19 | – | 316115006 Panel-control,metal ,almond ,19 | - |
| 20 | | Clock/timer,TOD | Discontinued |
| 20A | | Overlay-clock,almond | - |
| 23 | | Bracket-timer (TGF324BHWB) | - |
| 24 | | 316118102NLA Switch,oven light ,almond ,rocker | Discontinued |
| 32 | | Knob thermostat,almond | - |
| 36 | | 316109514NLA Knob-top valve,almond | Discontinued |
| 40 | – | 316086861 Panel-manifold,almond | - |
| 42 | – | 316055202 EXTRUSION, BOTTOM TRIM | - |
| 56 | – | 316074907 DEFLECTOR-FLUE, BLACK | - |
| NI | – | 316021124 Screw,truss hd ,8-18 x 0.375 ,almond | - |
| NI |  | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
| NI | | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| NI |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
