Model
Tappan TGF330WCWA
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF330WCWARange/Oven, Gas, Freestanding, 30 Inch
5 diagrams133 parts
Parts Sections (5)

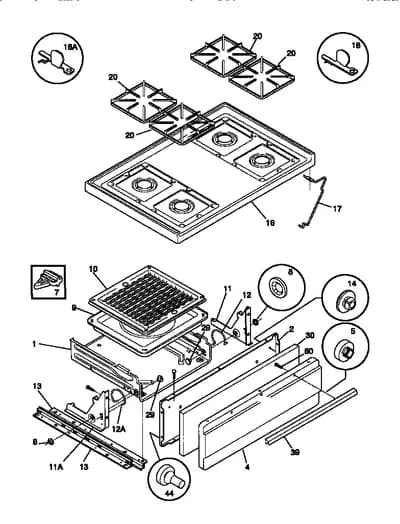

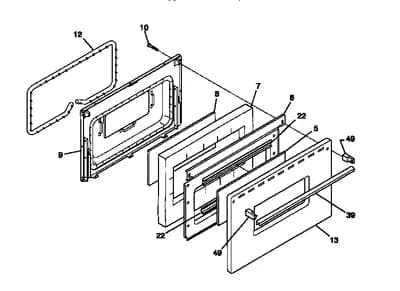

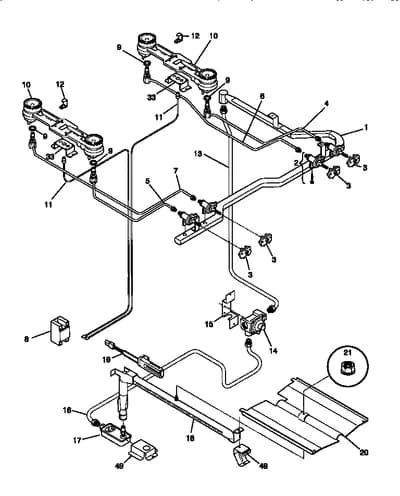

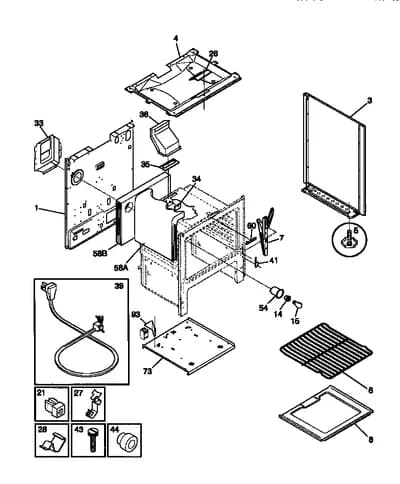

Diagram

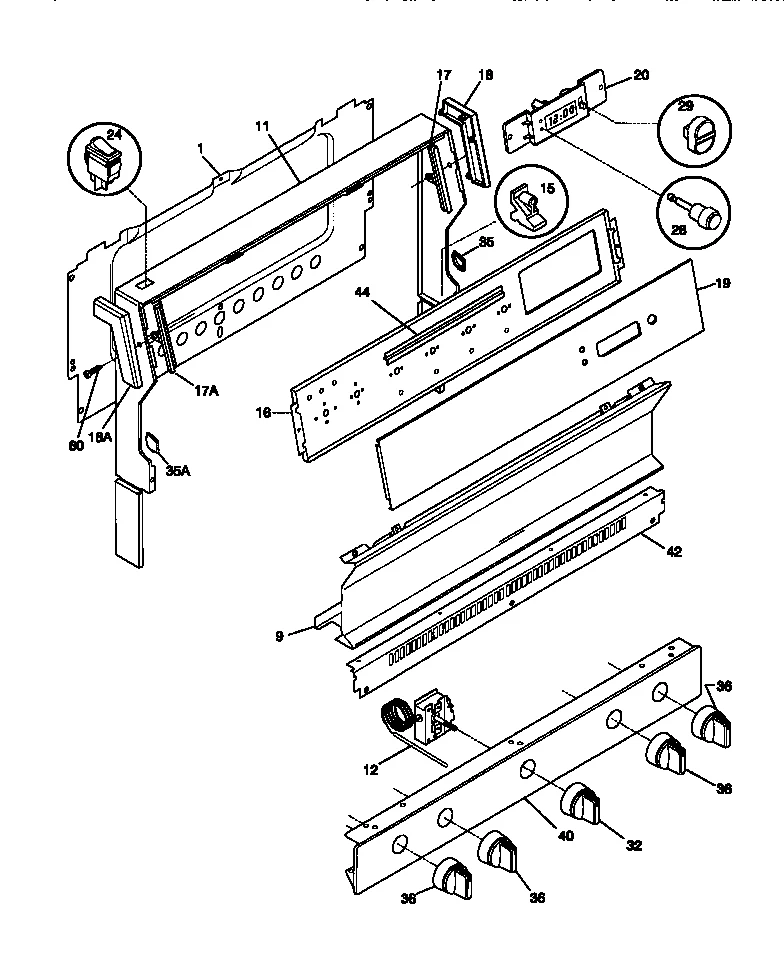

BACKGUARD
Parts in BACKGUARD
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5303289640replaces 3131123 SHIELD REAR WALL BIG (NON-ILLUSTRATED) | - |
| 9 | – | 316043501 TRIM-SPLASHER,WHITE | - |
| 11 | – | 3204755 TRIM, WRAPPER | - |
| 12 |  | 316032411replaces 5303271464 THERMOSTAT-OVEN | $59.24 Part Advantage |
| 15 | | 5303131237NLA LIGHT/LAMP, INDICATOR, RED, LOCK | Discontinued |
| 16 | – | 316042601 PLATE-INSTRUCTION MOUNTING | - |
| 17 | – | 3204754 TRIM-GLASS RETAINER,RH | - |
| 17A | – | 3204753 TRIM-GLASS RETAINER,LH | - |
| 18 | | CAP-END, BLACK, RH | - |
| 18A | | CAP-END, BLACK, LH | - |
| 19 | – | 316034554 PANEL-CONTROL | - |
| 20 | | CLOCK/TIMER, ELECTRONIC | - |
| 24 |  | 5304527841replaces 316005602 SWITCH-LIGHT/LAMP, ROCKER TYPE, BLACK, (2) | $6.16 Part Advantage |
| 28 | | Push Button,clock set ,black ,(2) | - |
| 29 | | BUTTON-SELECTOR, CLOCK/TIMER, BLACK | - |
| 32 | | KNOB-THERMOSTAT | Discontinued |
| 35 | – | 3203077 CAP END-RH | - |
| 35A | – | 3203076 CAP END-LH | - |
| 36 | – | 316023023 KNOB-CONTROL, (4) | - |
| 40 | – | 316086807 PANEL-MANIFOLD | - |
| 42 | – | 316084300 TRIM-VENT | - |
| 44 | – | 3131468 BACKET - BACKGUARD (NON-ILLUSTRATED) | - |
| 60 | – | 5303289970 SCREW-END CAP MTG,OVAL HEAD ,6-20AB X 1/2 | - |
| *53200 | | SCREW, TRUSS HEAD, 8-18 X 1/2 10-16 X 1/2 (NON-ILLUSTRATED) | - |
| *53201 |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
