Model
Tappan TGF334WFSA
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF334WFSARange/Oven, Gas, Freestanding, 30 Inch
5 diagrams126 parts
Parts Sections (5)
Diagram

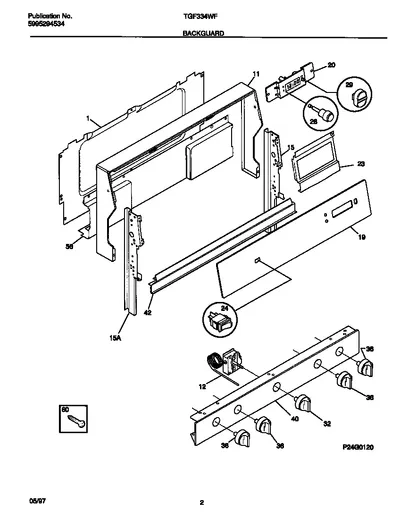

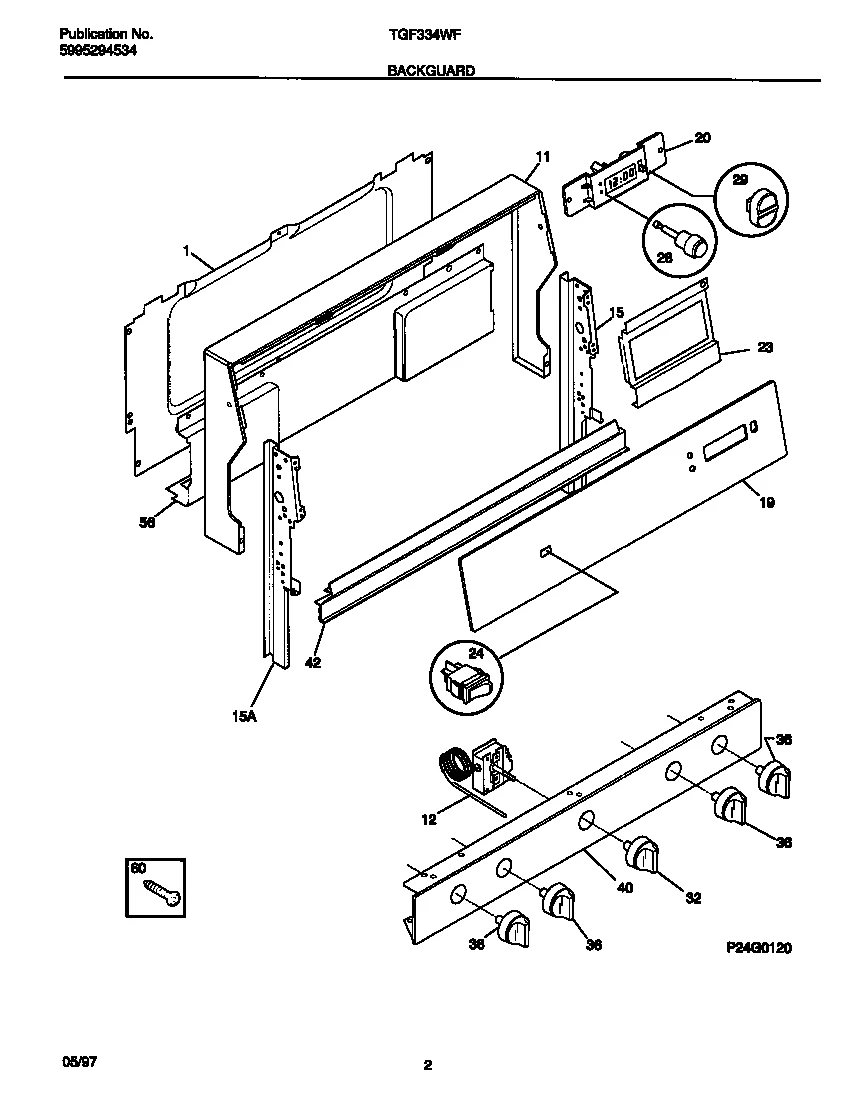

BACKGUARD
Parts in BACKGUARD
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 316028701 SHIELD, REAR WALL, BACKGUARD | - |
| 11 | – | 316061847 TRIM-WRAPPER, WHITE | - |
| 12 |  | 316032411replaces 5303271464 THERMOSTAT-OVEN | $59.24 Part Advantage |
| 15 | – | 316023110 SUPPORT-BACKGROUND, RH | - |
| 15 |  | 316023109replaces 316023111 SUPPORT-BACKGUARD, LH | - |
| 19 | – | 316082626 PANEL-CONTROL, METAL | - |
| 20 | | 316096000NLA CLOCK/TIMER | Discontinued |
| 23 | – | 316079003 BRACKET-CLOCK MTG | - |
| 24 |  | 5304527842replaces 316005607 SWITCH-ROCKER, OVEN LIGHT, WHITE | $6.16 Part Advantage |
| 28 | | BUTTON-CLOCK,WHITE , CLOCK SET | - |
| 29 | | 316028402NLA BUTTON-SELECTOR, CLOCK/TIMER, WHITE | Discontinued |
| 32 | – | 316022916 KNOB-THERMOSTAT | - |
| 36 | – | 316023021 KNOB-CONTROL, WHITE, (4) | - |
| 40 | – | 316062354 Panel,manifold ,white | - |
| 42 | – | 316083300 Trim,vent ,black | - |
| 56 | – | 316074902 DEFLECTOR-FLUE, BLACK | - |
| 60 |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| *29520 |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
