Model
Tappan TGF335BCDB
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF335BCDBRange/Oven, Gas, Freestanding, 30 Inch
5 diagrams145 parts
Parts Sections (5)

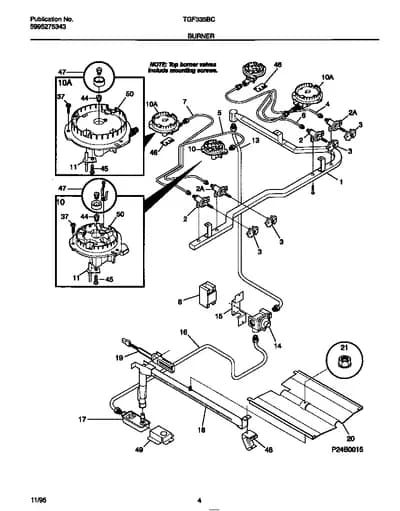

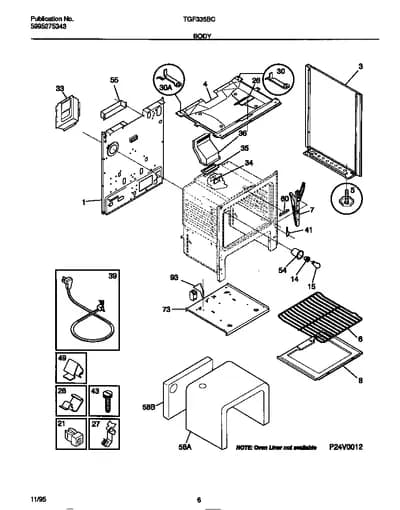

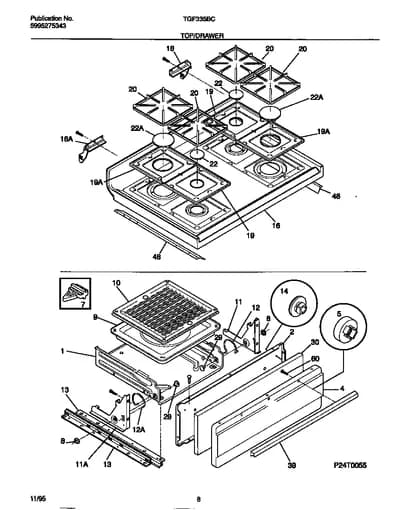

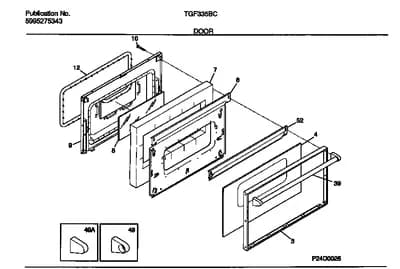

Diagram

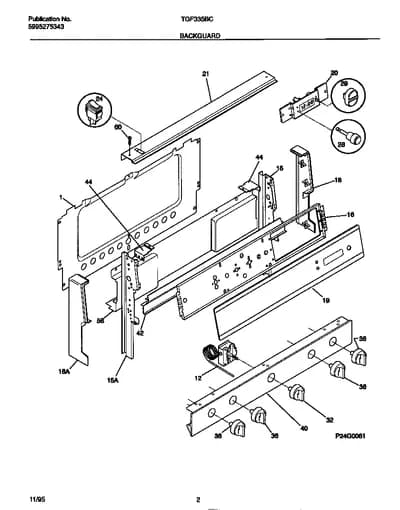

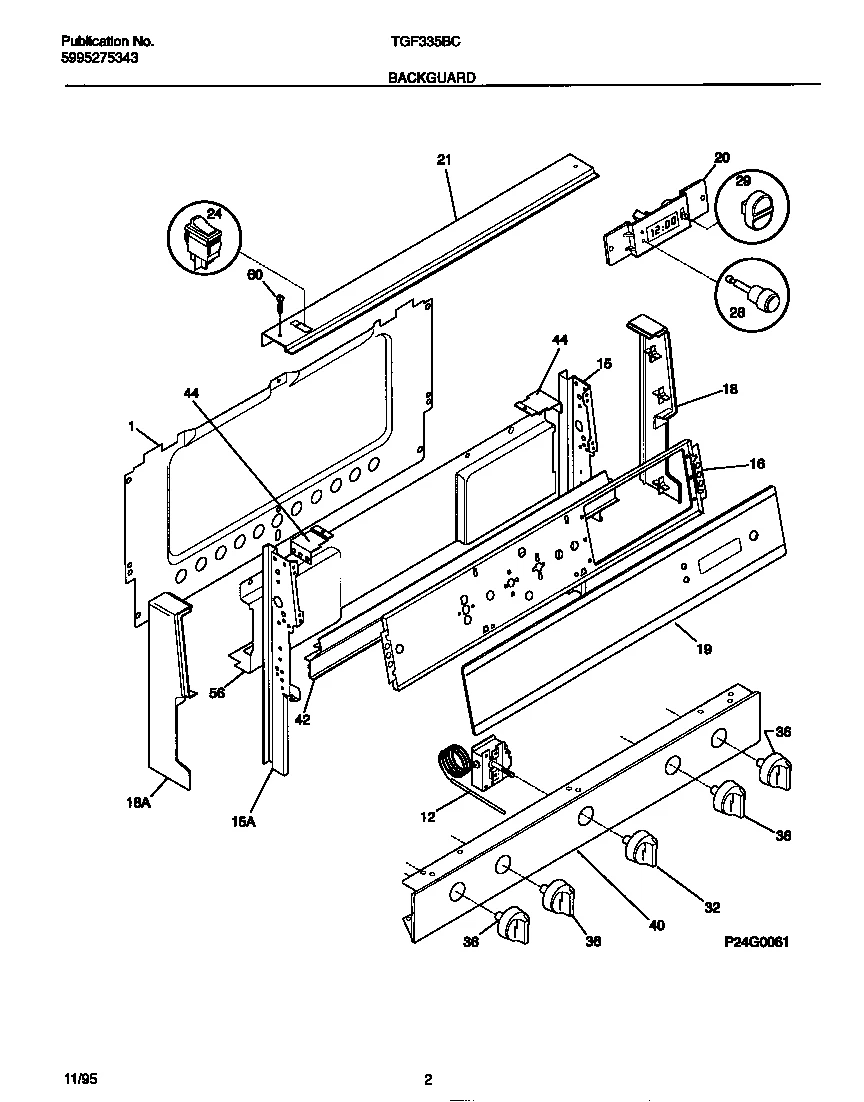

BACKGUARD
Parts in BACKGUARD
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 316028701 SHIELD, REAR WALL, BACKGUARD | - |
| 12 |  | 316032411replaces 5303271464 THERMOSTAT-OVEN | $59.24 Part Advantage |
| 15 | – | 316023110 SUPPORT-BACKGROUND, RH | - |
| 15 |  | 316023109replaces 316023111 SUPPORT-BACKGUARD, LH | - |
| 16 | – | 316042601 PLATE-INSTRUCTION MOUNTING | - |
| 18 |  | END CAP, BLACK, LH | $35.58 RepairClinic |
| 18 |  | END CAP, BLACK, RH | - |
| 19 | – | 316028354 PANEL-CONTROL, GLASS | - |
| 20 | | CLOCK/TIMER, ELECTRONIC | - |
| 21 | – | 5303283554 TRIM - CANOPY/SHIELD, BLACK | - |
| 24 |  | SWITCH, OVEN LIGHT, ROCKER TYPE | $42.52 ApplianceParts Pro |
| 28 | | Push Button,clock set ,black ,(2) | - |
| 29 | | BUTTON-SELECTOR, CLOCK/TIMER, BLACK | - |
| 32 | | KNOB-THERMOSTAT | Discontinued |
| 36 | | 316023020NLA KNOB-CONTROL, (4) | Discontinued |
| 40 | – | 316086808 PANEL-MANIFOLD | - |
| 42 | – | 5303272839 EXTRUSION-DEFLECTOR | - |
| 44 | – | 5303272831 BRACKET-SUPPORT B/G (2) | - |
| 56 | – | 316074902 DEFLECTOR-FLUE, BLACK | - |
| 60 |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| *76800 | | SCREW, TRUSS HEAD, 8-18 X 1/2 10-16 X 1/2 (NON-ILLUSTRATED) | - |
| *76801 | | 5303288574NLA SCREW, PLAS. TR HD SQDR, 8-10 X 3/8, (6) (NON-ILLUSTRATED) | Discontinued |
