Model
Tappan TGF335CFTA
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF335CFTARange/Oven, Gas, Freestanding, 30 Inch
5 diagrams130 parts
Parts Sections (5)
Diagram

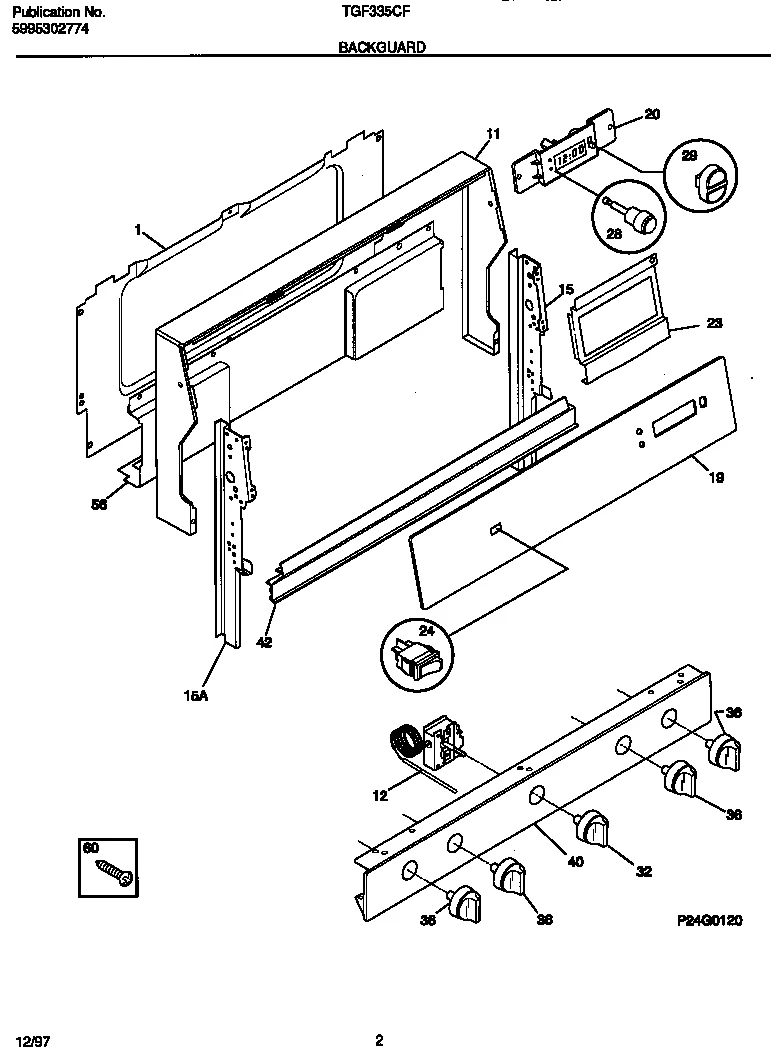

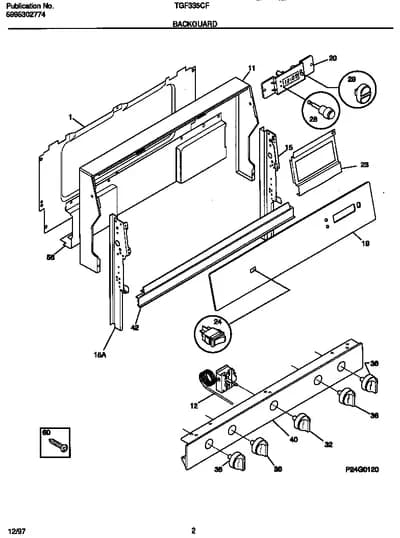

BACKGUARD
Parts in BACKGUARD
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 316028701 SHIELD, REAR WALL, BACKGUARD | - |
| 11 | – | 316061848 TRIM-WRAPPER, ALMOND | - |
| 12 |  | 316032411replaces 5303271464 THERMOSTAT-OVEN | $59.24 Part Advantage |
| 15 |  | Support,backguard ,LH | - |
| 15 | | SUPPORT-BACKGUARD, RH | - |
| 19 | – | 316082640 PANEL-CONTROL, ALMOND | - |
| 20 | – | 316096001 CLOCK/TIMER | - |
| 23 | – | 316079002 BRACKET-CLOCK MTG | - |
| 24 | – | 316005608 SWITCH-ROCKER, ALMOND, OVEN LIGHT | - |
| 28 | | BUTTON-CLOCK,CLOCK SET ,ALMOND ,(2) | - |
| 29 | | BUTTON-SELECTOR, CLOCK/TIMER, ALMOND | - |
| 32 | – | 316022917 KNOB-THERMOSTAT | - |
| 36 | – | 316023022 KNOB-CONTROL, ALMOND, (4) | - |
| 40 | – | 316086837 PANEL-MANIFOLD, ALMOND | - |
| 42 | – | 316083300 Trim,vent ,black | - |
| 56 | – | 316074907 DEFLECTOR-FLUE, BLACK | - |
| 60 |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| *90640 |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| *90641 | | SCREW, TRUSS HEAD, 8-18 X 1/2 10-16 X 1/2 (NON-ILLUSTRATED) | - |
