Model
Tappan TGF336ASD
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF336ASDRange/Oven, Gas, Freestanding, 30 Inch
5 diagrams118 parts
Parts Sections (5)
Diagram

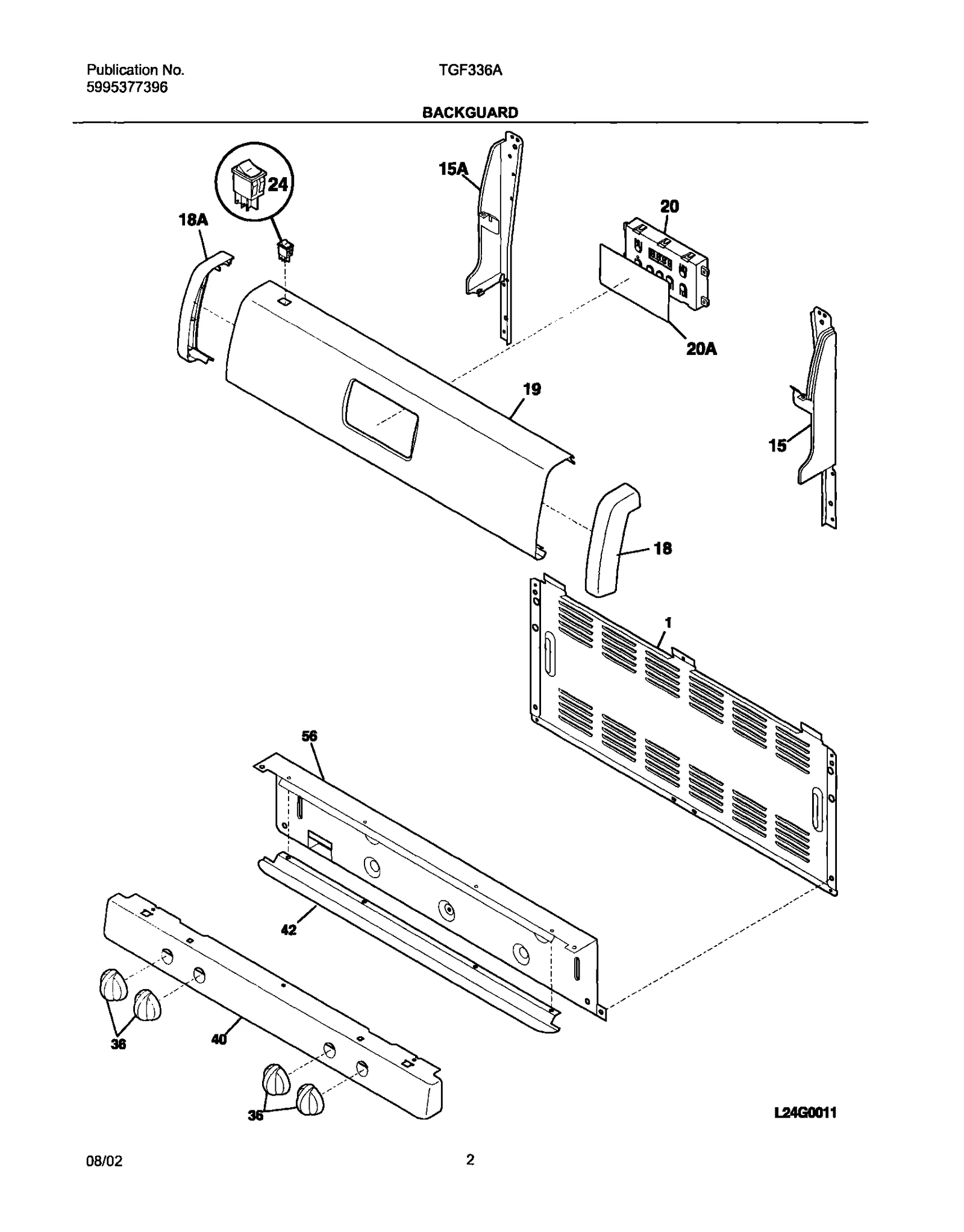

BACKGUARD
Parts in BACKGUARD
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Shield,backguard ,rear wall | - |
| 15 | | Support,backguard ,white ,RH | - |
| 15A |  | Support,backguard ,white ,LH | - |
| 18 | | 316240900NLA End Cap,white ,RH | Discontinued |
| 18A | | End Cap,white ,LH | - |
| 19 | | Panel,backguard ,white | $82.59 RepairClinic |
| 20 |  | 5304518661replaces 316222802 Clock/Timer,electronic ,ES100 | $89.19 Part Advantage |
| 20A |  | 316220728replaces 316220704 Overlay,clock ,white | $21.31 Part Advantage |
| 24 |  | 5304527842replaces 316246000 Switch,rocker ,white ,oven light | $6.16 Part Advantage |
| 36 |  | Knob,top valve ,white ,(4) | $50.38 Parts Dr |
| 40 | | Panel,manifold ,white | Discontinued |
| 42 | – | 316245701 Trim,extrusion ,aluminum | - |
| 56 |  | 316230708replaces 316230701 SHIELD, BACKGUARD, INNER | $45.67 ApplianceParts Pro |
| NI |  | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
| NI |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| NI | | 316207400replaces 316207200 Filter,noise ,electronic | - |
| NI | | Screw,8-18 x 0.5 ,chrome | $8.20 Part Advantage |
