Model
Tappan TGF336CHSA
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF336CHSARange/Oven, Gas, Freestanding, 30 Inch
5 diagrams127 parts
Parts Sections (5)

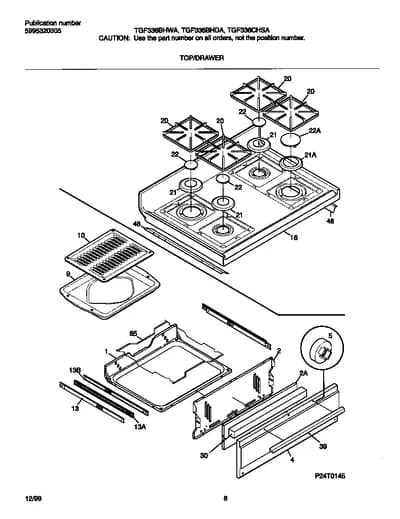

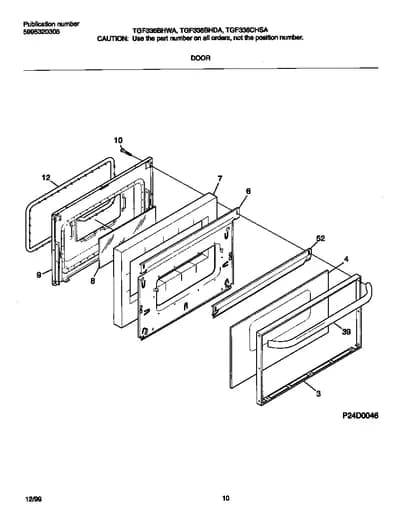

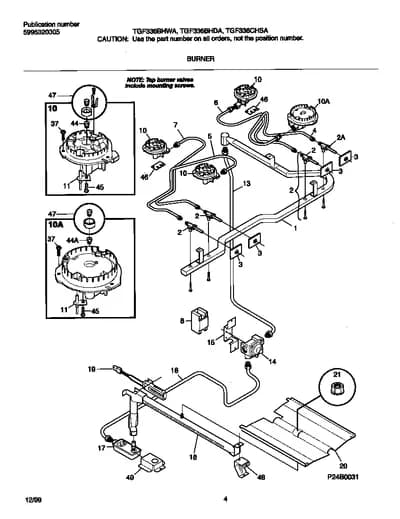

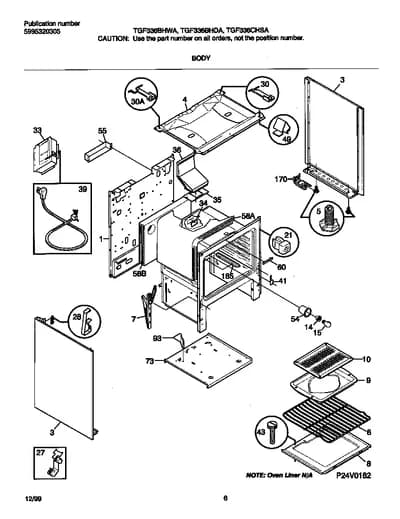

Diagram

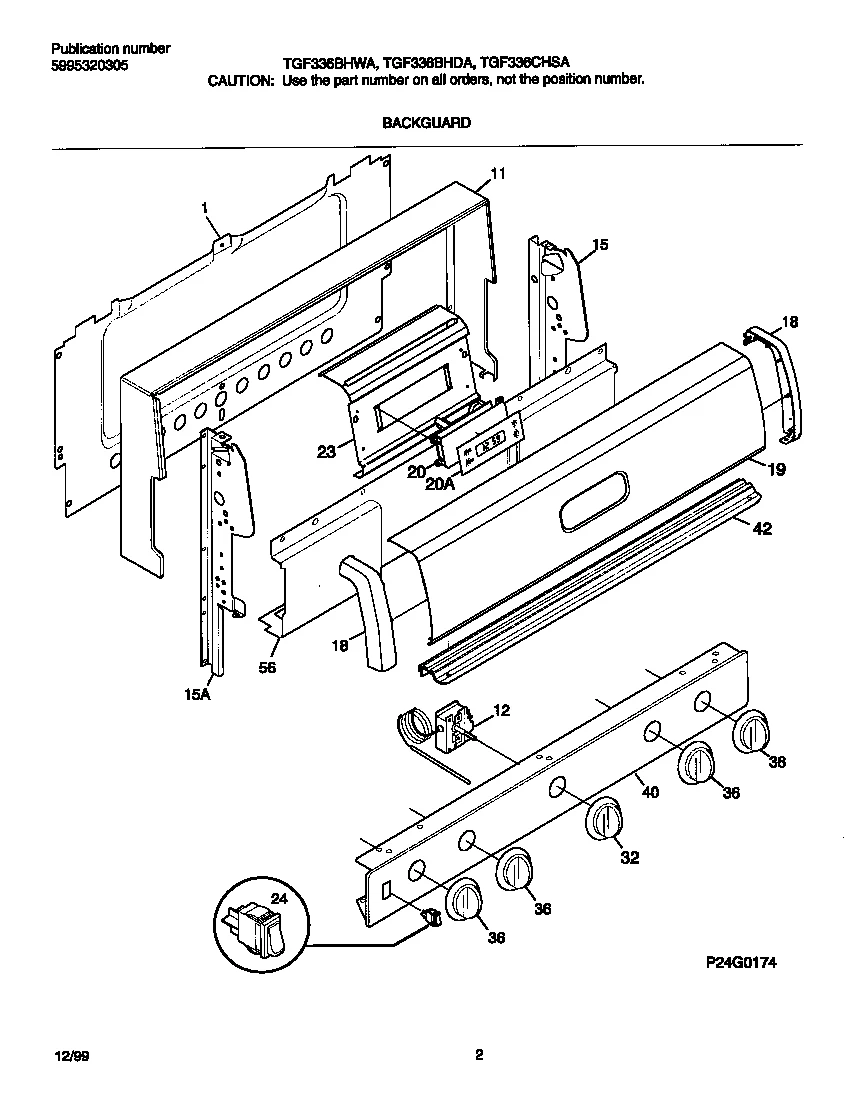

BACKGUARD
Parts in BACKGUARD
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 316028701 SHIELD, REAR WALL, BACKGUARD | - |
| 11 | – | 316061857 TRIM-WRAPPER TEX GAS WHITE,TEXTURED ,WHITE | - |
| 12 |  | 316032411replaces 316032404 THERMOSTAT | $59.24 Part Advantage |
| 15 |  | Support,backguard ,LH | - |
| 15 | | SUPPORT-BACKGUARD, RH | - |
| 18 | – | 316115201 CAP-END,ALMOND | - |
| 18 | – | 316115200 CAP-END,ALMOND | - |
| 19 | – | 316115005 Panel-control,metal ,white | - |
| 20 | | Clock/timer,TOD | Discontinued |
| 20 | – | 316115100 BRACKET (TGF324BHWA) | - |
| 24 |  | 5304527842replaces 316118101 Switch,oven light ,white ,rocker | $6.16 Part Advantage |
| 32 |  | KNOB-THERMOSTAT WHT GAS,WHITE | Discontinued |
| 36 | | 316109503NLA KNOB-TOP VALVE WHITE,WHITE | Discontinued |
| 40 | – | 316086860 PANEL-MANIFOLD | - |
| 42 | – | 316055203 Trim-extrusion,chrome | - |
| 56 | – | 316074907 DEFLECTOR-FLUE, BLACK | - |
| *47760 | | COVER, FRONT MAIN (NON-ILLUSTRATED) | - |
| *47761 | – | 316002172 DIAGRAM-WIRING | - |
| *47762 |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| *47763 |  | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
| *47764 | – | 316021122 Screw,truss hd `8-18 x 0.375 ,white | - |
| *47765 |  | Template, Anti-tip bracket | - |
| *47766 | | OVERLAY-CLOCK | - |
