Model
Tappan TGF350MXDSD
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF350MXDSDRange/Oven, Gas, Freestanding, 30 Inch
4 diagrams107 parts

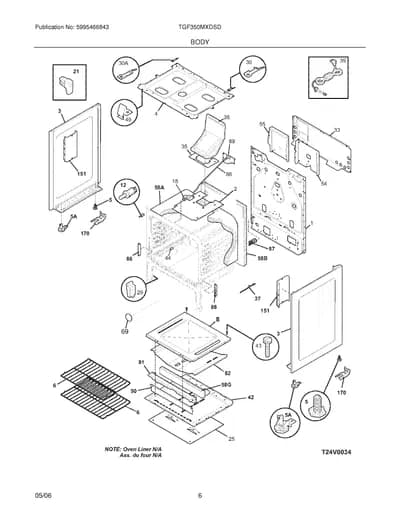

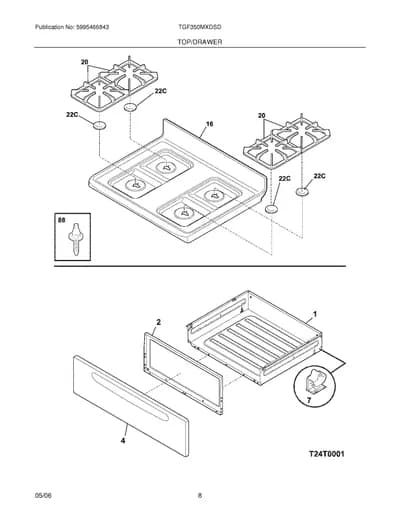

Parts Sections (4)
Diagram

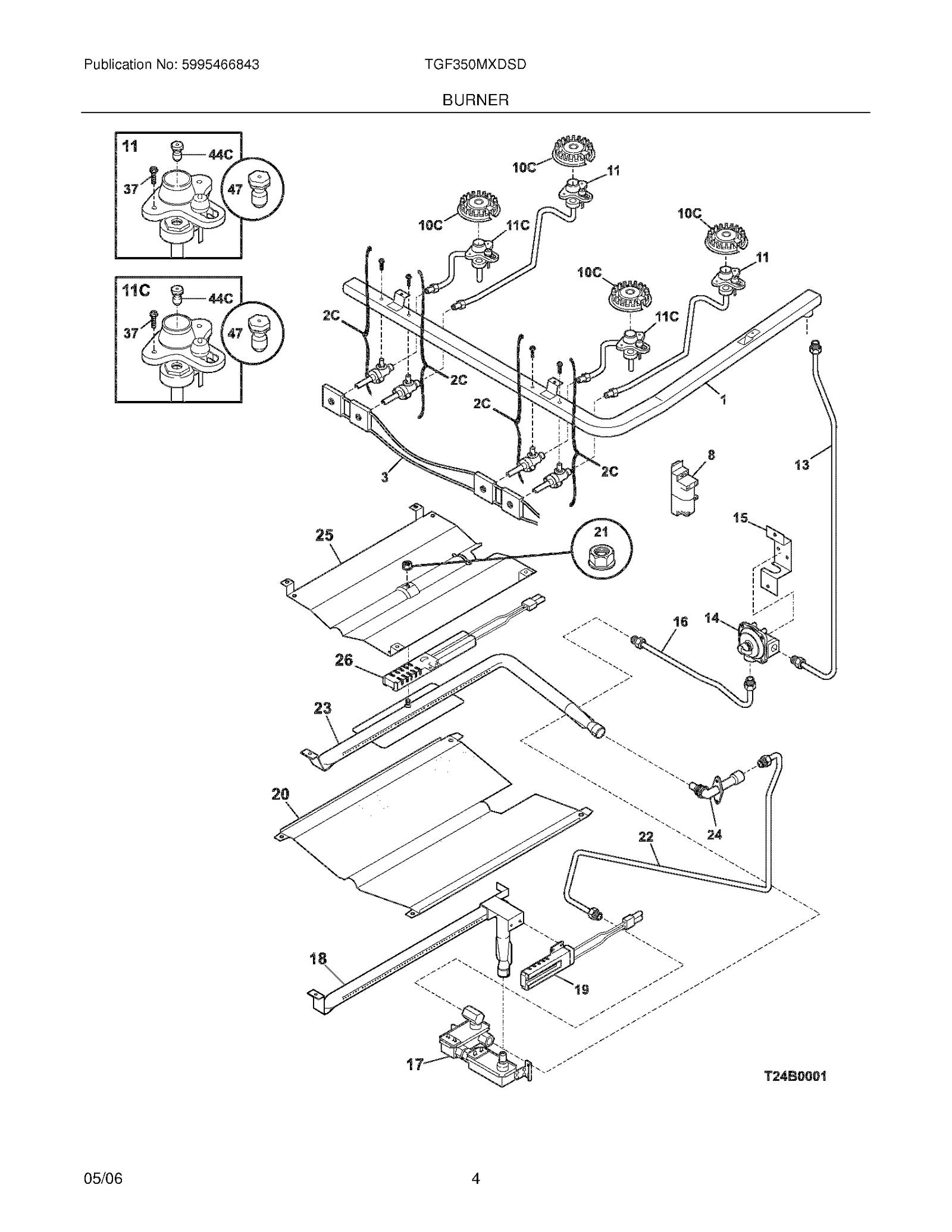

BURNER
Parts in BURNER
31 parts

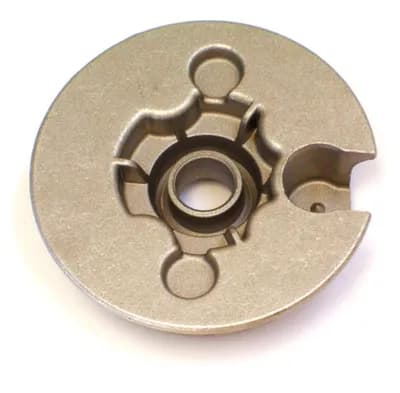

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Pipe,manifold | - |
| 2C | | 5303935234NLA VALVE, 9.5K BURNER, (2), W/MTG SCREW | Discontinued |
| 3 |  | Wiring Harness,w/igntr switch | $93.80 Part Advantage |
| 8 |  | 5304505695replaces 316135701 Module,spark | $36.85 Part Advantage |
| 10C |  | Burner,sealed ,9.5K | $17.64 Part Advantage |
| 11 |  | 316237704replaces 316237701 Ignitor/orifice assy.,top burner ,rear ,9.5K,w/holder ,tube | $70.99 Part Advantage |
| 11C |  | 316237805replaces 316237800 Ignitor/orifice assy.,top burner ,front | $70.99 Part Advantage |
| 13 | | Tube,3/8 ,aluminum ,rgltr to manf ,with fittings | Discontinued |
| 14 |  | 5304521339replaces 316091706 REGULATOR, PRESSURE | $56.37 Part Advantage |
| 15 |  | Bracket,regulator | $27.34 RepairClinic |
| 16 |  | 5304507348replaces 316405500 Tube,valve to regul. ,3/8 | $29.99 Parts Dr |
| 17 |  | VALVE, SAFETY | $203.66 Part Advantage |
| 18 |  | Burner,oven | $70.53 Parts Dr |
| 19 |  | 5304534663replaces 316428501 Ignitor,oven burner | $54.48 Part Advantage |
| 20 |  | 5304519024replaces 316401401 BAFFLE, OVEN BURNER | $43.46 Part Advantage |
| 21 | | 154079601replaces 5303013272 Nut,hex head sems | - |
| 22 |  | Tube,valve to mixer | - |
| 23 | | 316404300NLA BURNER,BROILER | Discontinued |
| 24 |  | 5304516894replaces 316409700 ELBOW, MIXER | $52.61 Parts Dr |
| 25 | | BAFFLE, BROIL BURNER | $150.35 RepairClinic |
| 26 |  | 5303935059replaces 316428601 Ignitor,burner | $35.21 Parts Dr |
| 37 |  | Screw,assy mtg ,(8) ,ignitor/orifice | $6.54 Part Advantage |
| 44C |  | Orifice,top burner ,center ,9.5K | $35.25 Part Advantage |

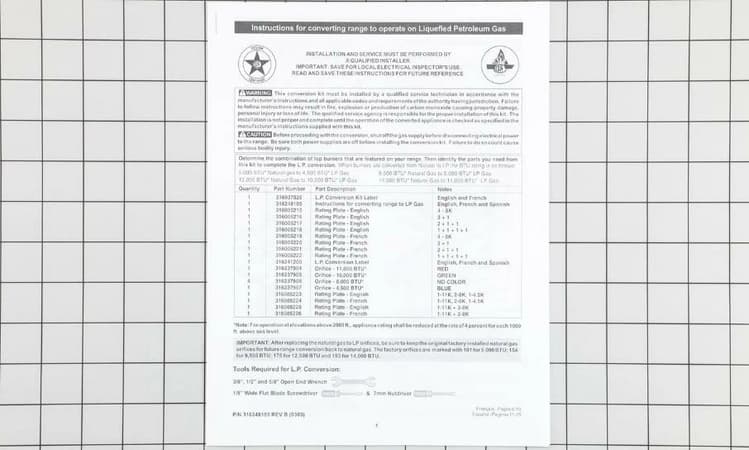

| 47 |  | GRLP3replaces GRLP2 LP Conversion Kit,w/instructions | $31.63 Part Advantage |
| NI |  | Screw,wafer hd sq dr ,8-18AB x 0.5 | - |
| NI |  | Screw,hex ,8-18 x 3/8 ,nick ,(3) ,regulator brkt | $6.49 ApplianceParts Pro |
| NI | – | 08068018 SHIELD, WIRE (NON-ILLUSTRATED) | - |
| NI |  | Screw,valve mtg. ,1/4 - 20 | $10.30 Parts Dr |
| NI |  | Cover,broil Ignitor | - |
| NI |  | Instructions,LP kit | - |
| NI | | 316253700NLA WIRING HARNESS,IGNITOR MODULE | Discontinued |
