Model
Tappan TGF350SCWA
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF350SCWARange/Oven, Gas, Freestanding, 30 Inch
4 diagrams112 parts
Parts Sections (4)

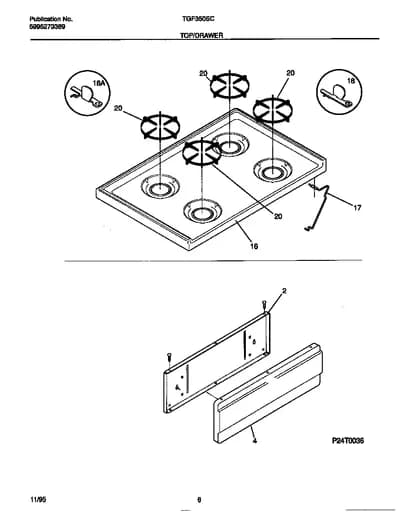

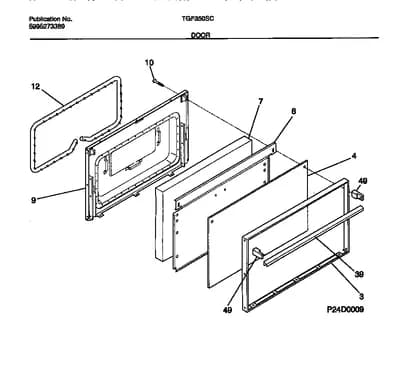

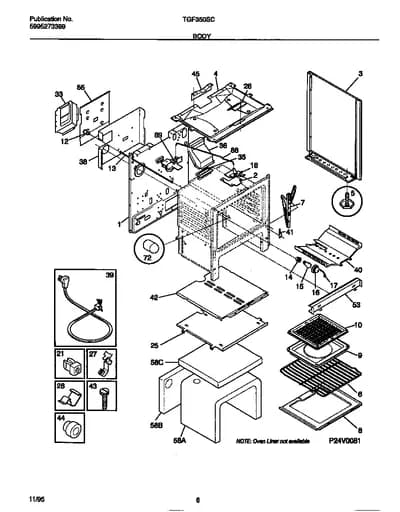

Diagram

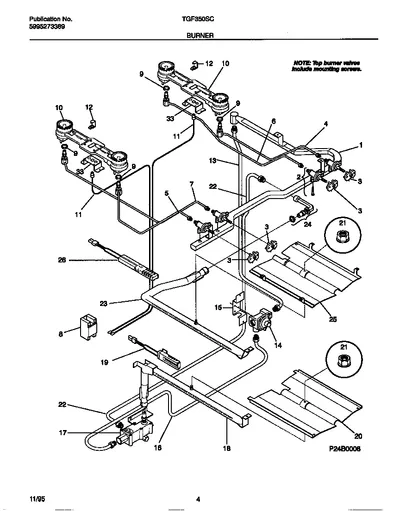

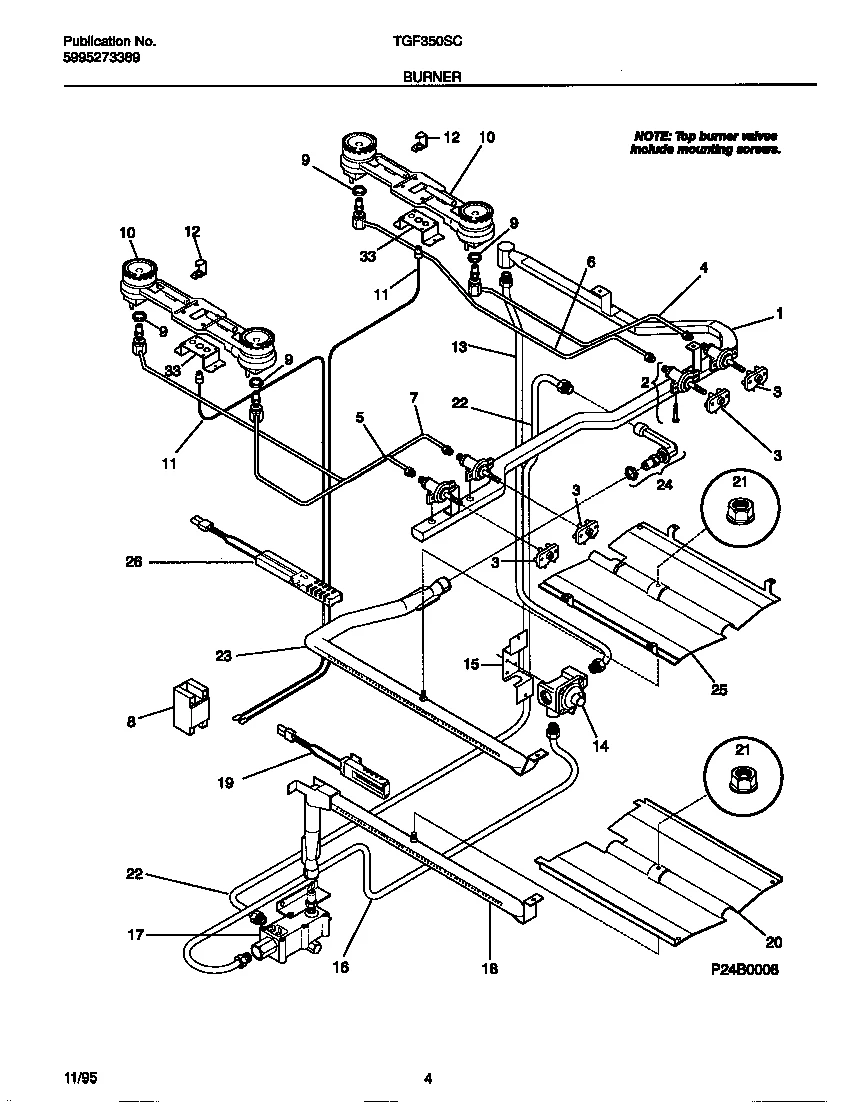

BURNER
Parts in BURNER
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 316066201 MANIFOLD PIPE | - |
| 2 | – | 316031900 VALVE-TOP BURNER, 2-POSITION, (4) | - |
| 2 |  | SCREW-TOP VALVE MTG, HEX WASHER HEAD, 1/4-20 X 0.31, (4), W/GASKET (NOT ILLUSTRATED) | - |
| 3 |  | SWITCH HARNESS TERMINAL KIT (NOT-ILLUSTRATED) | - |
| 3 | | 316032001NLA SWITCH-IGNITER, (4) | Discontinued |
| 4 | – | 316051400 TUBE-BURNER, RF | - |
| 5 | | TUBE-BURNER, LF | - |
| 6 | – | 316051402 TUBE-BURNER, RR | - |
| 7 | – | 316051403 TUBE-BURNER, LR | - |
| 8 |  | 5303912606replaces 5303200669 IGNITER-MODULE BOARD | - |
| 9 | – | 3013279 NUT SPECIAL (NON-ILLUSTRATED) | - |
| 10 |  | BURNER-TOP DOUBLE | - |
| 11 |  | IGNITER-TOP BURNER, BASE, 33``, (2) | Discontinued |
| 11 | | IGNITER-TOP BURNER, BASE, 50``(1) | Discontinued |
| 12 |  | RETAINER, TOP IGNITOR HARNESS AND ASSEMBLY | $60.95 ApplianceParts Pro |
| 13 | | 316065005NLA Tube,3/8 ,aluminum ,rgltr to manf ,with fittings | Discontinued |
| 14 |  | Screw,hex ,8-18 x 3/8 ,nick ,(3) ,regulator brkt | $6.49 ApplianceParts Pro |
| 14 |  | 5303935125replaces 316054806 REGULATOR-PRESSURE | - |
| 15 |  | 316091600replaces 08067934 BRACKET-REGULATOR | $27.34 RepairClinic |
| 16 |  | TUBE-VALVE TO REGULATOR,3/8 | - |
| 17 |  | VALVE-SAFETY-DUAL | $344.77 Part Advantage |
| 18 | | 3131290NLA BURNER-OVEN | Discontinued |
| 19 |  | 5303935066replaces 5303131300 IGNITER-OVEN, LOWER | $24.20 Parts Dr |
| 20 | – | 5303288408 BAFFLE-OVEN BURNER | - |
| 21 | | 154079601replaces 5303013272 Nut,hex head sems | - |
| 22 | | TUBE-VALVE TO MIXER | - |
| 23 | | 08067935NLA BURNER-BROILER | Discontinued |
| 24 | | MIXER ELBOW | - |
| 25 | – | 5303288407 BAFFLE-BROILER | - |
| 26 |  | 5303935068replaces 5308067970 IGNITOR, BROILER BURNER | $80.57 Part Advantage |
| 33 | – | 3200277 BRACKET-BURNER MOUNTING | - |
