Model
Tappan TGF351ESJ
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF351ESJRange/Oven, Gas, Freestanding, 30 Inch
5 diagrams127 parts
Parts Sections (5)
Diagram

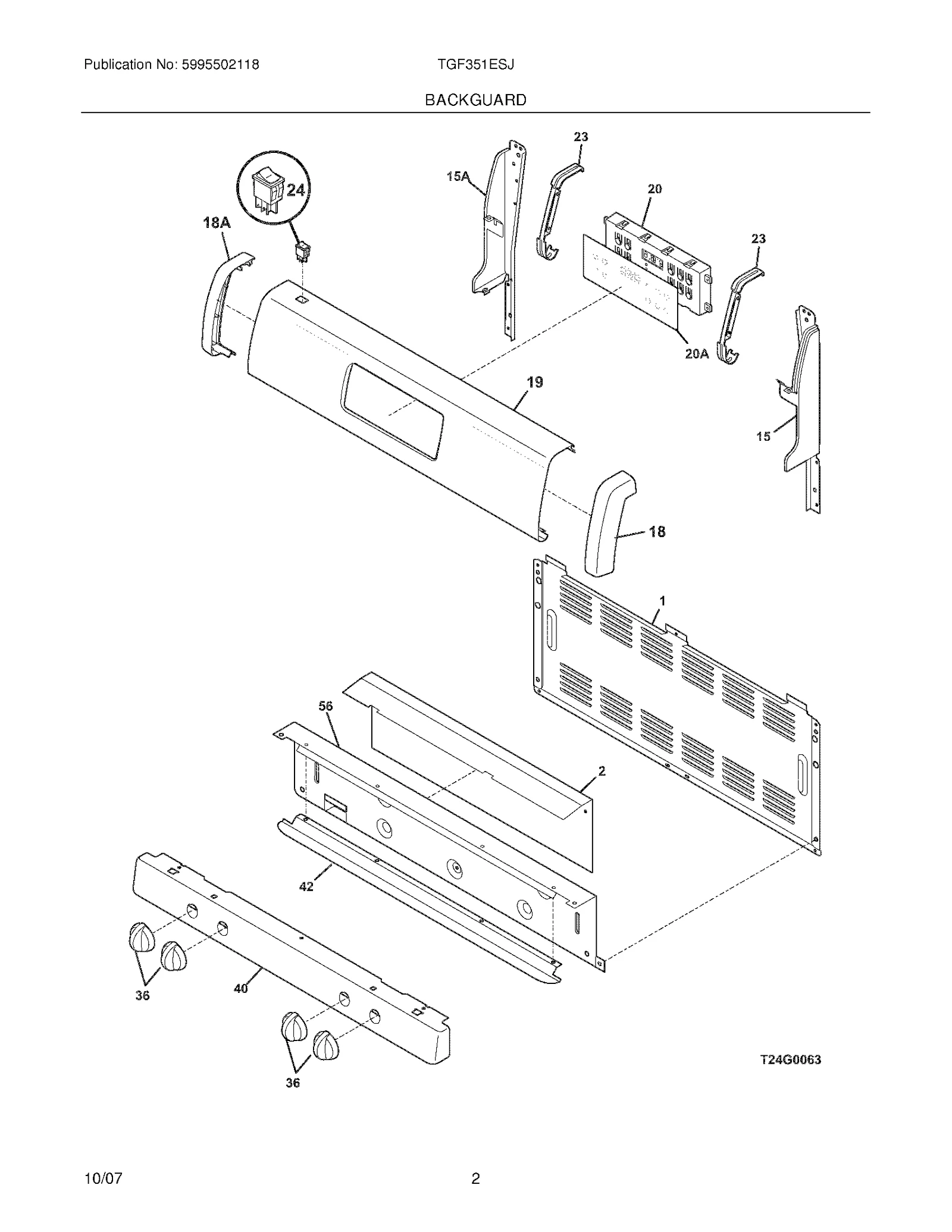

BACKGUARD
Parts in BACKGUARD
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Shield,backguard ,rear wall | - |
| 2 |  | SHIELD, BACKGUARD, INNER | - |
| 15 | | Support,backguard ,white ,RH | - |
| 15A |  | Support,backguard ,white ,LH | - |
| 18 | | 316240900NLA End Cap,white ,RH | Discontinued |
| 18A | | End Cap,white ,LH | - |
| 19 | | Panel,backguard ,white | - |
| 20 | | Clock/Timer,electronic ,ES200 | Discontinued |
| 20A |  | 316419134replaces 316419113 Overlay,clock ,white ,ES200 | $22.15 Part Advantage |
| 23 |  | Bracket,clock mtg | $56.19 RepairClinic |
| 24 |  | 5304527842replaces 316448701 SWITCH, ROCKER, WHITE, OVEN LIGHT | $6.16 Part Advantage |
| 36 |  | KNOB, TOP VALVE, WHITE, (4) | $20.09 Part Advantage |
| 40 | – | 316489015 Panel-manifold,white | - |
| 42 | – | 316277301 Trim,extrusion ,gray | - |
| 56 |  | 316230708replaces 316230701 SHIELD, BACKGUARD, INNER | $45.67 ApplianceParts Pro |
| NI |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| NI |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| NI | | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
| NI | | Screw,8-18 x 0.5 ,chrome | $8.20 Part Advantage |
