Model
Tappan TGF354SCWC
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF354SCWCRange/Oven, Gas, Freestanding, 30 Inch
5 diagrams154 parts

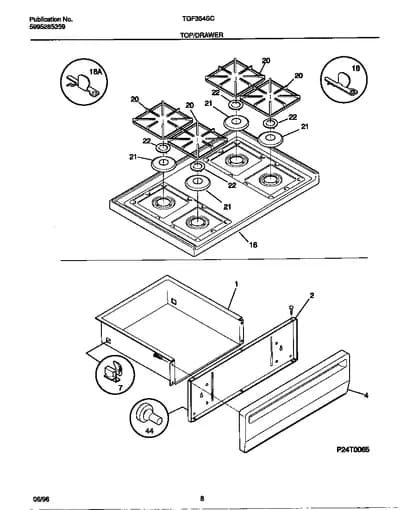

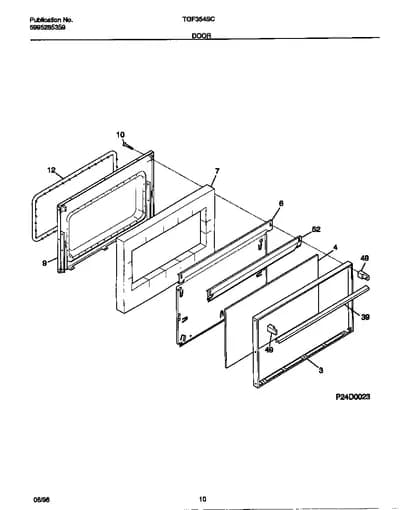

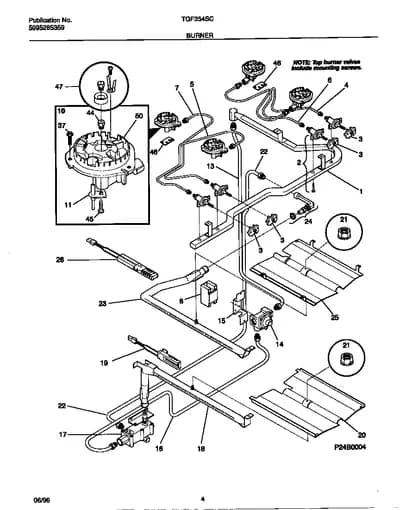

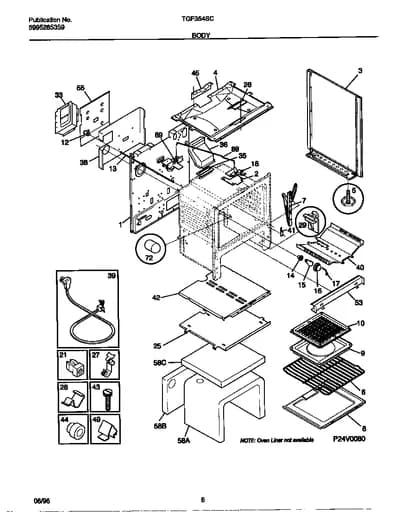

Parts Sections (5)
Diagram

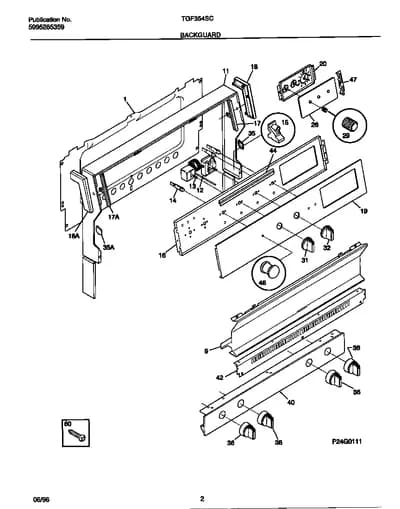

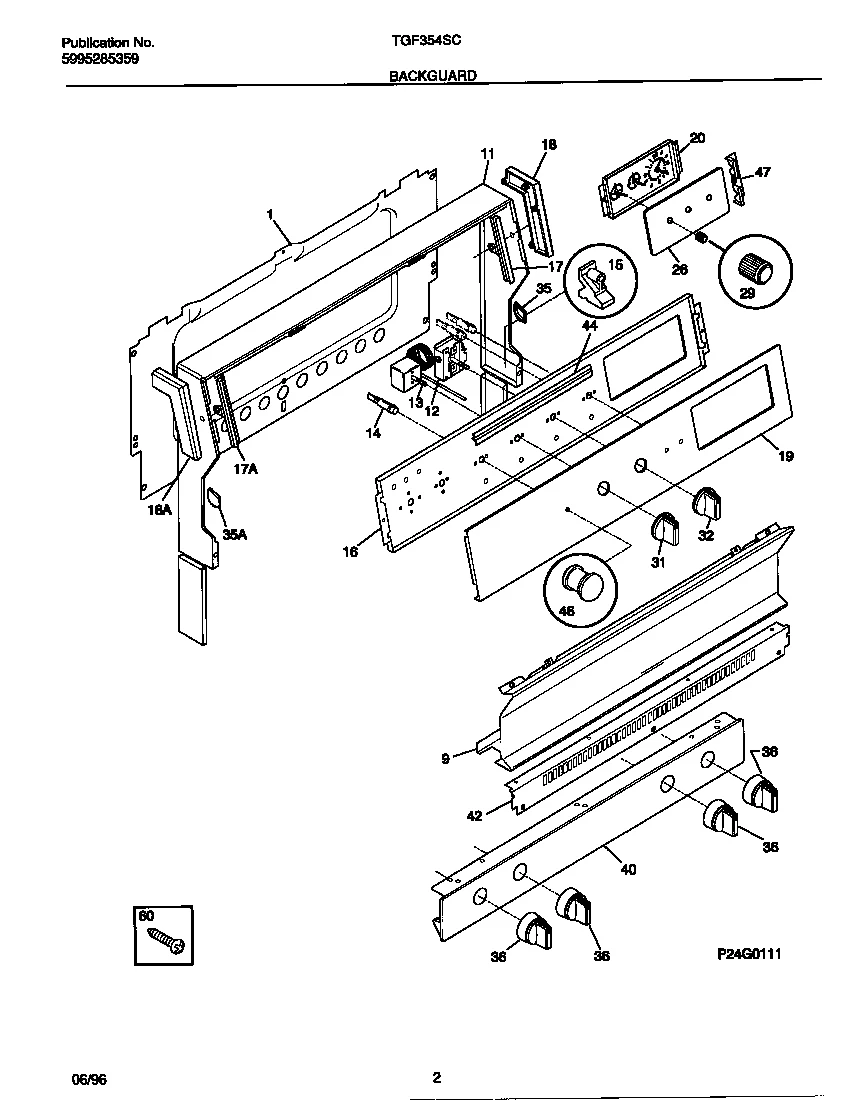

BACKGUARD
Parts in BACKGUARD
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5303289640replaces 3131123 SHIELD REAR WALL BIG (NON-ILLUSTRATED) | - |
| 9 | – | 316043501 TRIM-SPLASHER,WHITE | - |
| 11 | – | 3204755 TRIM, WRAPPER | - |
| 12 | | THERMOSTAT-OVEN | - |
| 13 | – | 316073301 SWITCH-SELECTOR | - |
| 14 | | INDICATOR LIGHT | - |
| 15 | | 5303131237NLA LIGHT/LAMP, INDICATOR, RED, LOCK | Discontinued |
| 16 | – | 316042601 PLATE-INSTRUCTION MOUNTING | - |
| 17 | – | 3204754 TRIM-GLASS RETAINER,RH | - |
| 17 | – | 3204753 TRIM-GLASS RETAINER,LH | - |
| 18 | | CAP-END, BLACK, RH | - |
| 18 | | CAP-END, BLACK, LH | - |
| 19 | – | 316034553 PANEL-CONTROL | - |
| 20 | | 316038107replaces 3204766 CLOCK/TIMER, ANALOG 3 STEM | - |
| 26 | | LENS-CLOCK, GLASS | - |
| 29 | | KNOB-CLOCK | - |
| 31 | – | 316087232 KNOB-SELECTOR | - |
| 32 | | KNOB-THERMOSTAT | - |
| 35 | – | 3203076 CAP END-LH | - |
| 35 | – | 3203077 CAP END-RH | - |
| 36 | | 316023020NLA KNOB-CONTROL, (4) | Discontinued |
| 40 | | 316009268replaces 316086812 PANEL-MANIFOLD | - |
| 42 | – | 316084300 TRIM-VENT | - |
| 44 | – | 3131468 BACKET - BACKGUARD (NON-ILLUSTRATED) | - |
| 46 | | LENS-LIGHT/LAMP,INDICATOR ,RED | - |
| 47 | – | 3201700 RETAINER, CLOCK GLASS, (2) | - |
| 60 | – | 5303289970 SCREW-END CAP MTG,OVAL HEAD ,6-20AB X 1/2 | - |
| *90280 |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| *90281 | – | 3204745 BUSHING-CONTROL SHAFT (NON-ILLUSTRATED) | - |
| *90282 | – | 316001450 HARNESS-WIRING, BACKGUARD | - |
| *90283 |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| *90284 | | CLIP-BACKGUARD (NON-ILLUSTRATED) | - |
| *90285 | | SCREW, TRUSS HEAD, 8-18 X 1/2 10-16 X 1/2 (NON-ILLUSTRATED) | - |
