Model
Tappan TGF355BEWB
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF355BEWBRange/Oven, Gas, Freestanding, 30 Inch
5 diagrams141 parts
Parts Sections (5)
Diagram

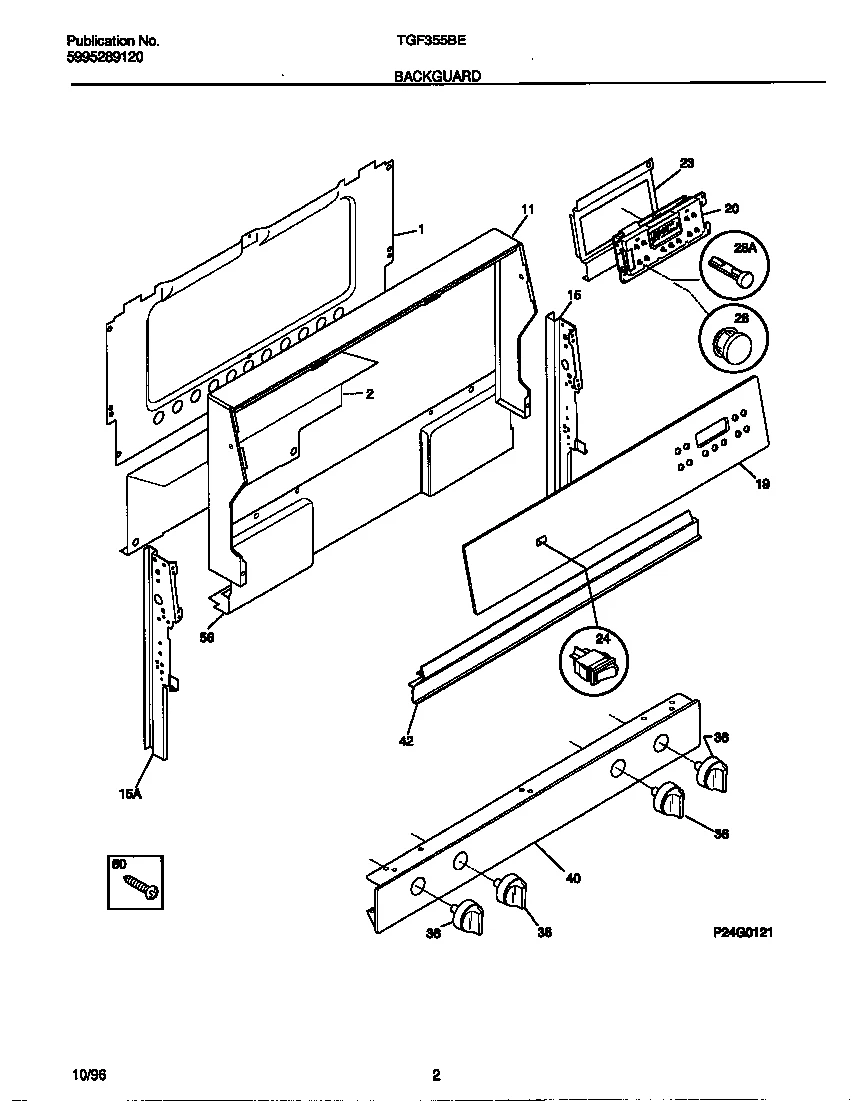

BACKGUARD
Parts in BACKGUARD
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 316028701 SHIELD, REAR WALL, BACKGUARD | - |
| 2 | – | 316051601 SHIELD-BACKGUARD, INNER | - |
| 11 | – | 316061846 TRIM-WRAPPER, BLACK | - |
| 15 |  | 316023109replaces 316023111 SUPPORT-BACKGUARD, LH | - |
| 15 | – | 316023110 SUPPORT-BACKGROUND, RH | - |
| 19 | – | 316082615 PANEL-CONTROL, METAL | - |
| 20 | | 316080102NLA CLOCK/TIMER, EOC | Discontinued |
| 23 | – | 316079003 BRACKET-CLOCK MTG | - |
| 24 |  | 5304527841replaces 316005602 SWITCH-LIGHT/LAMP, ROCKER TYPE, BLACK, (2) | $6.16 Part Advantage |
| 28 | | PUSH BUTTON, BLACK, CLOCK/TIMER/EOC | - |
| 28 | | 316080600NLA PUSH BUTTON-SHAFT, CLOCK/TIMER/EOC, BLACK (NOT ILLUSTRATED) | Discontinued |
| 36 | | 316023020NLA KNOB-CONTROL, (4) | Discontinued |
| 40 | | 316009268replaces 316086812 PANEL-MANIFOLD | - |
| 42 | – | 316083300 Trim,vent ,black | - |
| 56 | – | 316074902 DEFLECTOR-FLUE, BLACK | - |
| *13960 |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| *13961 |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
