Model
Tappan TGF355BFWB
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF355BFWBRange/Oven, Gas, Freestanding, 30 Inch
5 diagrams140 parts
Parts Sections (5)
Diagram

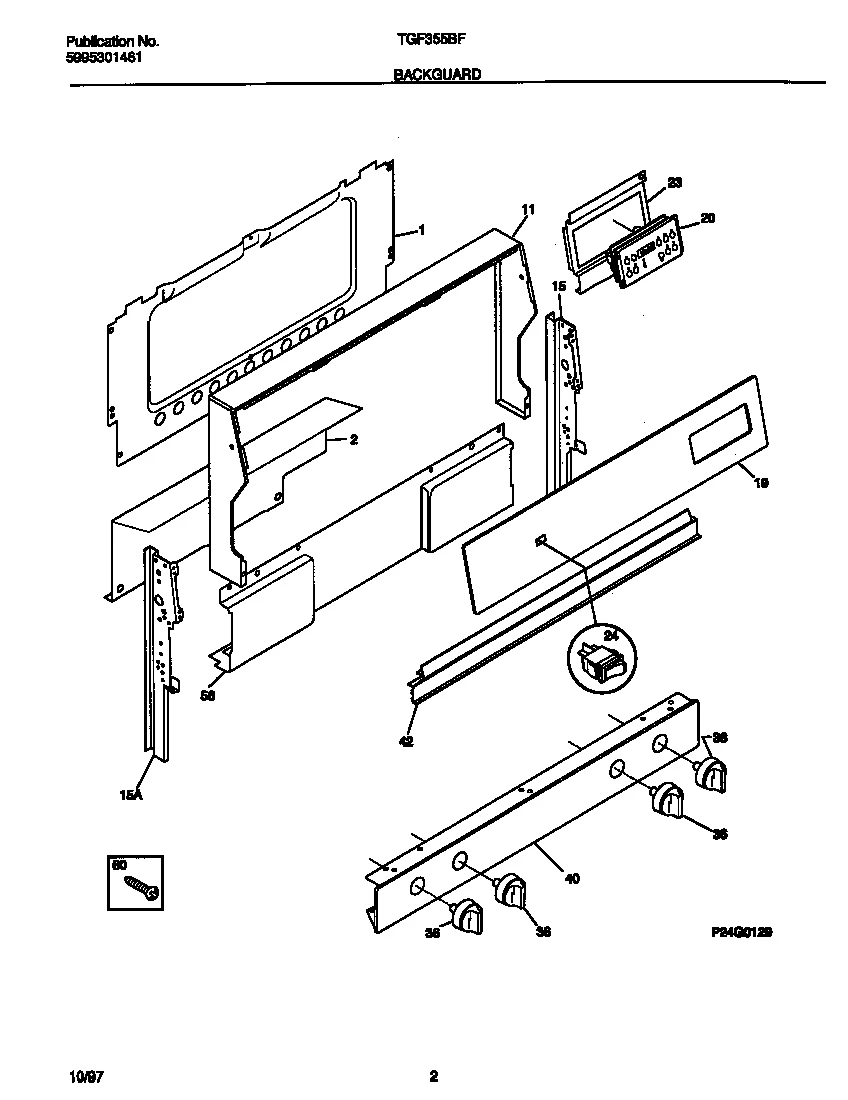

BACKGUARD
Parts in BACKGUARD
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 316028701 SHIELD, REAR WALL, BACKGUARD | - |
| 2 |  | 316497600replaces 316051600 Shield,backguard ,inner | - |
| 11 | – | 316061846 TRIM-WRAPPER, BLACK | - |
| 15 |  | Support,backguard ,LH | - |
| 15 | | SUPPORT-BACKGUARD, RH | - |
| 19 | – | 316082618 PANEL-CONTROL, METAL | - |
| 20A | | 316101000NLA CLOCK/TIMER, ELECTRONIC | Discontinued |
| 20B |  | OVERLAY-CLOCK (NOT ILLUSTRATED) | Discontinued |
| 23 | – | 316100400 BRACKET-CLOCK MTG | - |
| 24 |  | 5304527841replaces 316005602 SWITCH-LIGHT/LAMP, ROCKER TYPE, BLACK, (2) | $6.16 Part Advantage |
| 36 | | 316023020NLA KNOB-CONTROL, (4) | Discontinued |
| 40 | | 316009268replaces 316086817 PANEL-MANIFOLD | - |
| 42 | – | 316083300 Trim,vent ,black | - |
| 56 | – | 316074907 DEFLECTOR-FLUE, BLACK | - |
| 60 |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| *87360 |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
