Model
Tappan TGF355BHDB
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF355BHDBRange/Oven, Gas, Freestanding, 30 Inch
5 diagrams137 parts
Parts Sections (5)
Diagram

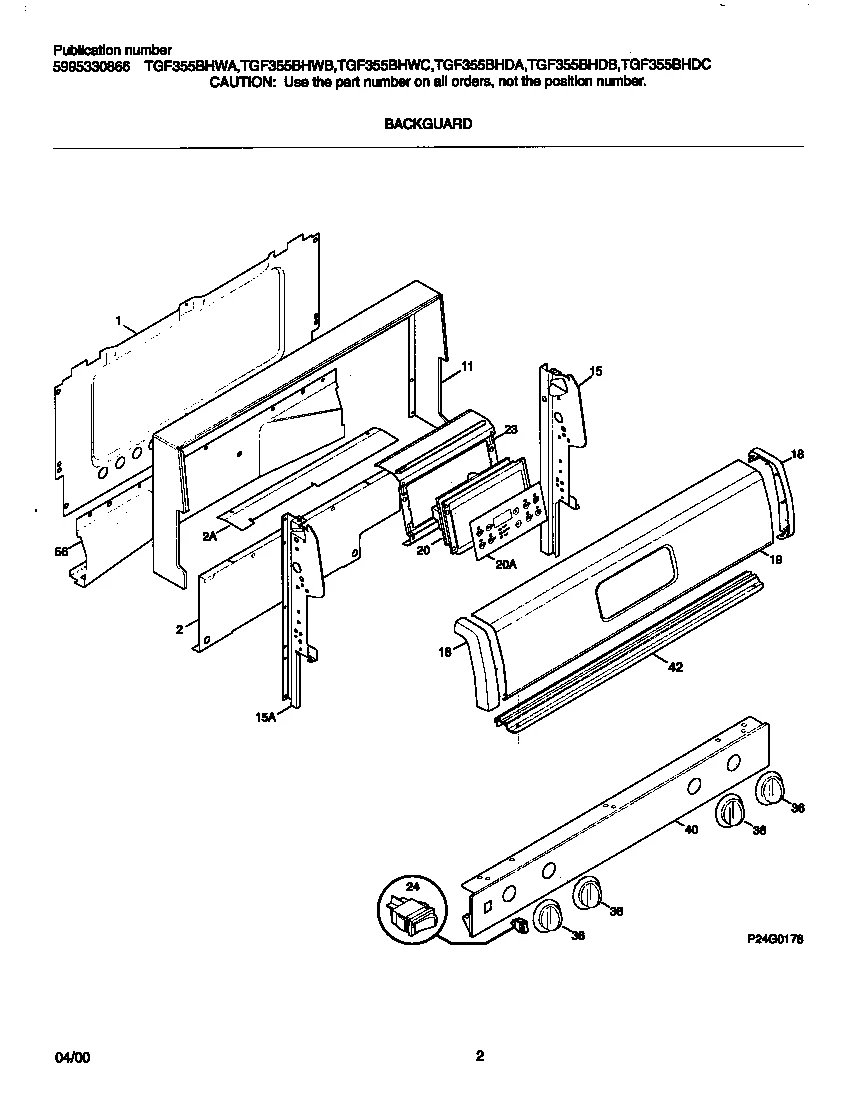

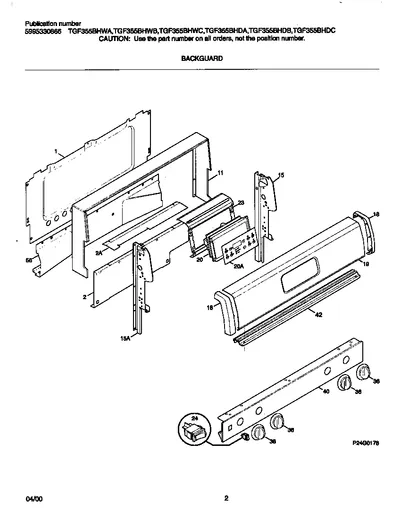

BACKGUARD
Parts in BACKGUARD
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 316028701 SHIELD, REAR WALL, BACKGUARD | - |
| 11 | – | 316061856 TRIM-WRAPPER,TEXTURED ,BLACK | - |
| 15 |  | Support,backguard ,LH | - |
| 15 | | SUPPORT-BACKGUARD, RH | - |
| 18 |  | 5303935174replaces 316115204 CAP-END, BLACK , RH | - |
| 18 | | 5303935174replaces 316115205 CAP-END, BLACK | - |
| 20 | | 316101000NLA CLOCK/TIMER, ELECTRONIC | Discontinued |
| 23 | – | 316115101 BRACKET TIMER | - |
| 24 | | SWITCH-ROCKER, OVEN LIGHT, BLACK, RH, (1) | - |
| 36 | | KNOB-TOP VALVE BLACK,BLACK | Discontinued |
| 53 | – | 316055202 EXTRUSION, BOTTOM TRIM | - |
| 56 | – | 316074907 DEFLECTOR-FLUE, BLACK | - |
| *63320 | – | 316001465 HARNESS-WIRING,BACKGUARD | - |
| *63321 |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| *63322 |  | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
| *63323 | – | 316105822 Instructions,installation | - |
| *63324 |  | Template, Anti-tip bracket | - |
| *63325 | | OVERLAY-CLOCK | - |
| *63326 | | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
