Model
Tappan TGF357BCDA
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF357BCDARange/Oven, Gas, Freestanding, 30 Inch
5 diagrams159 parts

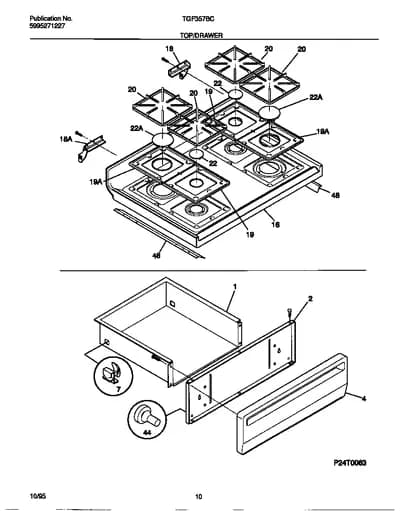

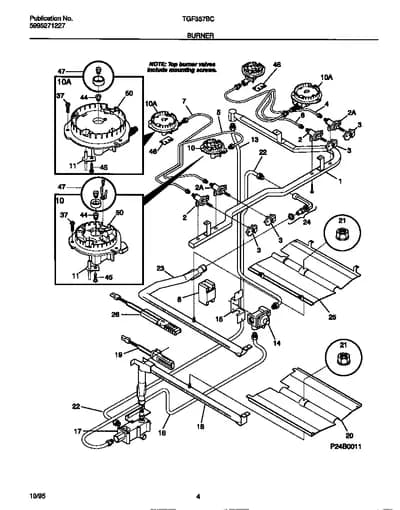

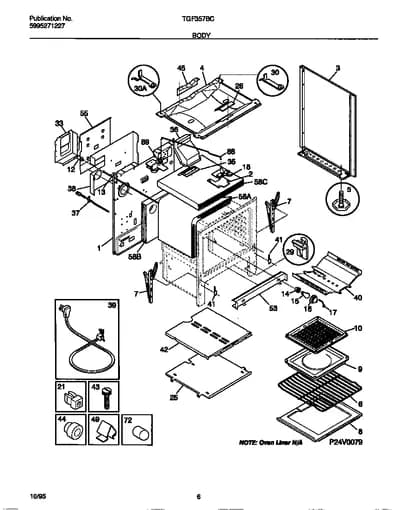

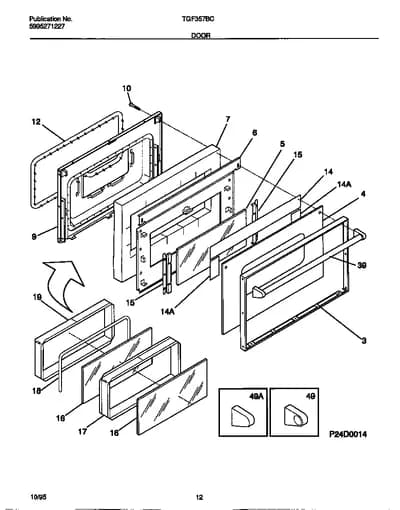

Parts Sections (5)
Diagram

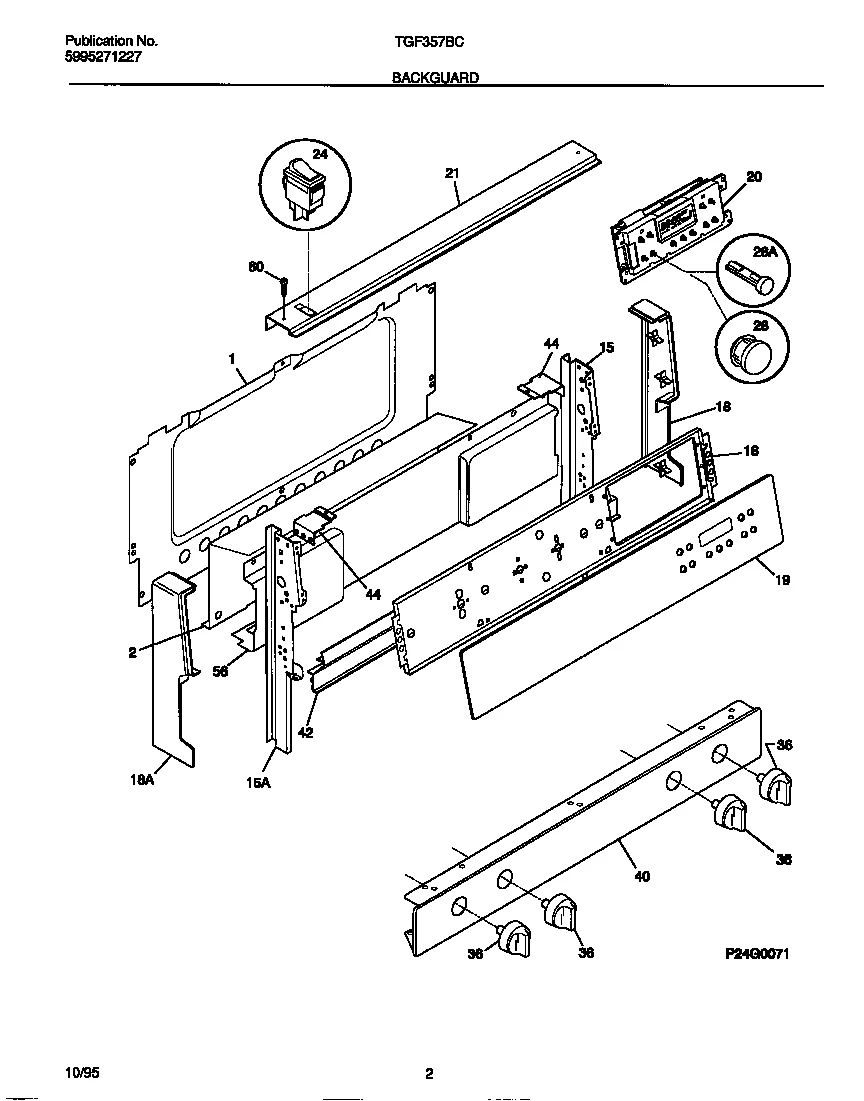

BACKGUARD
Parts in BACKGUARD
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 316028701 SHIELD, REAR WALL, BACKGUARD | - |
| 2 | – | 316038801 SHIELD-BACKGUARD, INNER | - |
| 15 |  | 316023109replaces 316023111 SUPPORT-BACKGUARD, LH | - |
| 15 | – | 316023110 SUPPORT-BACKGROUND, RH | - |
| 16 | – | 316083601 PLATE, INSTRUMENT MTG | - |
| 18 |  | END CAP, BLACK, RH | - |
| 18 |  | END CAP, BLACK, LH | $35.58 RepairClinic |
| 19A | – | 316028349 PANEL-CONTROL, GLASS | - |
| 19B | – | 5303272836 CLIP-BACKGROUND (NON-ILLUSTRATED) | - |
| 20 | – | 316064502 CLOCK/TIMER, EOC | - |
| 21 | – | 5303283554 TRIM - CANOPY/SHIELD, BLACK | - |
| 24 |  | SWITCH, OVEN LIGHT, ROCKER TYPE | $42.52 ApplianceParts Pro |
| 28 | | PUSH BUTTON, BLACK, CLOCK/TIMER/EOC | - |
| 28 | | SHAFT-PUSH BUTTON, CLOCK/TIMER/EOC, (11) | - |
| 36 | | 316023020NLA KNOB-CONTROL, (4) | Discontinued |
| 40 | | 316009268replaces 316086812 PANEL-MANIFOLD | - |
| 42 | – | 5303272839 EXTRUSION-DEFLECTOR | - |
| 44 | – | 5303272831 BRACKET-SUPPORT B/G (2) | - |
| 56 | – | 316074902 DEFLECTOR-FLUE, BLACK | - |
| 60 |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| *39680 | | SCREW, TRUSS HEAD, 8-18 X 1/2 10-16 X 1/2 (NON-ILLUSTRATED) | - |
| *39681 | | 5303288574NLA SCREW, PLAS. TR HD SQDR, 8-10 X 3/8, (6) (NON-ILLUSTRATED) | Discontinued |
| *39682 | – | 316001446 HARNESS-WIRING, BACKGUARD | - |
