Model
Tappan TGF357CCTA
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF357CCTARange/Oven, Gas, Freestanding, 30 Inch
5 diagrams160 parts

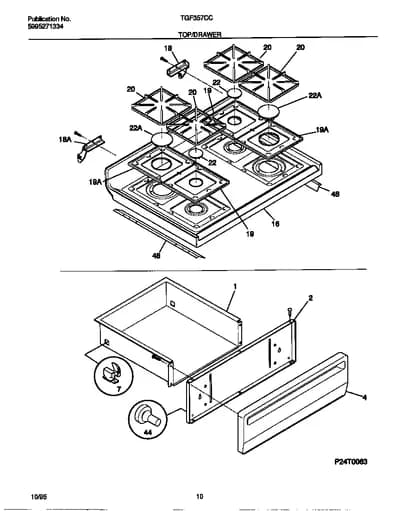

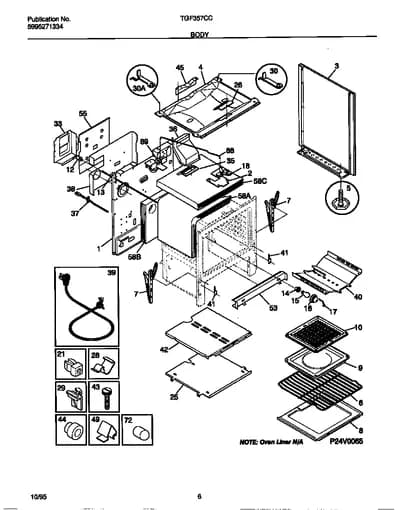

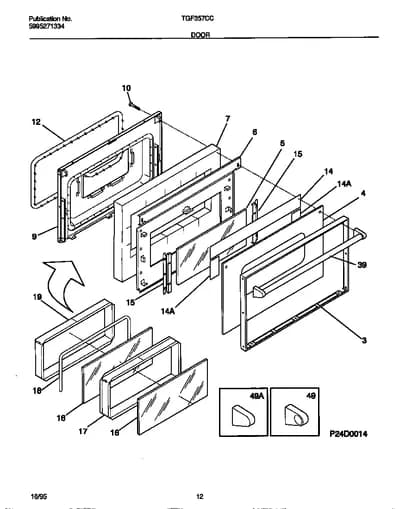

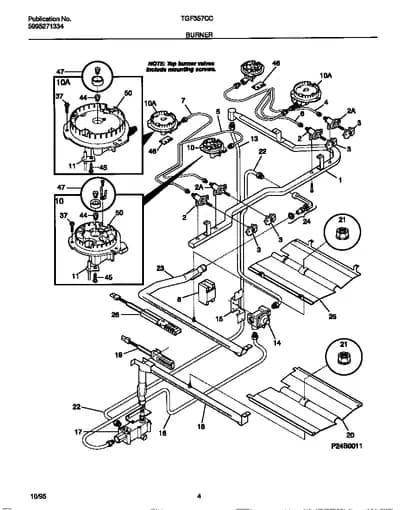

Parts Sections (5)
Diagram

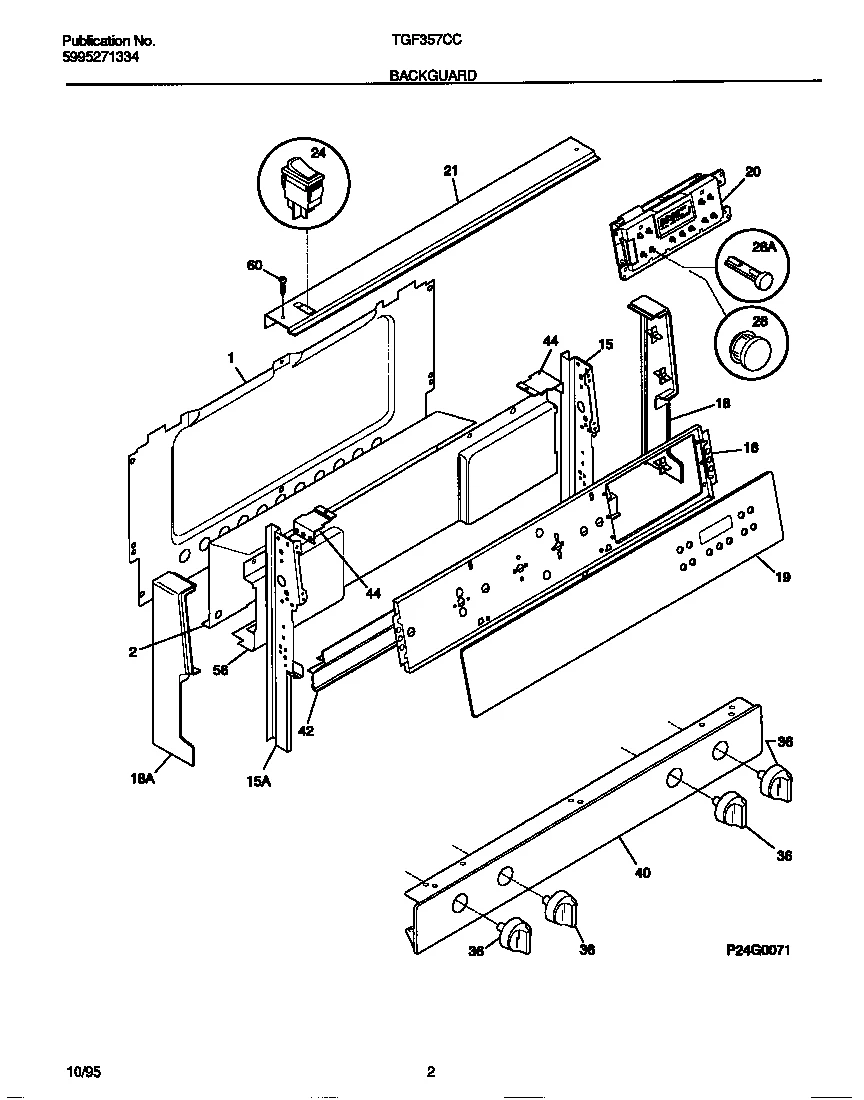

BACKGUARD
Parts in BACKGUARD
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 316028701 SHIELD, REAR WALL, BACKGUARD | - |
| 2 | – | 316038801 SHIELD-BACKGUARD, INNER | - |
| 15 | – | 316023110 SUPPORT-BACKGROUND, RH | - |
| 15 |  | 316023109replaces 316023111 SUPPORT-BACKGUARD, LH | - |
| 16 | – | 316083601 PLATE, INSTRUMENT MTG | - |
| 18 | – | 316021806 END CAP, ALMOND, RH | - |
| 18 | – | 316021807 END CAP, ALMOND, LH | - |
| 19 | – | 316028351 PANEL-CONTROL, GLASS, ALMOND | - |
| 19 | – | 5303272836 CLIP-BACKGROUND (NON-ILLUSTRATED) | - |
| 20 | – | 316064502 CLOCK/TIMER, EOC | - |
| 21 | – | 316039203 TRIM-CANOPY/SHIELD, ALMOND | - |
| 24 | – | 316060401 SWITCH-OVEN LIGHT, ROCKER TYPE, ALMOND | - |
| 28 | | 316015102replaces 316015105 PUSH BUTTON, CLOCK/TIMER/EOC, ALMOND, (11) | - |
| 28 | | SHAFT-PUSH BUTTON, CLOCK/TIMER/EOC, (11) | - |
| 36 | – | 316023022 KNOB-CONTROL, ALMOND, (4) | - |
| 40 | – | 316086814 PANEL-MANIFOLD, ALMOND | - |
| 42 | – | 5303272839 EXTRUSION-DEFLECTOR | - |
| 44 | – | 5303272831 BRACKET-SUPPORT B/G (2) | - |
| 56 | – | 316074902 DEFLECTOR-FLUE, BLACK | - |
| 60 | – | 316021101 SCREW, 8-18 X 1/2, ALMOND | - |
| *84040 | | SCREW, TRUSS HEAD, 8-18 X 1/2 10-16 X 1/2 (NON-ILLUSTRATED) | - |
| *84041 | | 5303288574NLA SCREW, PLAS. TR HD SQDR, 8-10 X 3/8, (6) (NON-ILLUSTRATED) | Discontinued |
| *84042 | – | 316001446 HARNESS-WIRING, BACKGUARD | - |
