Model
Tappan TGF357CCTF
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF357CCTFRange/Oven, Gas, Freestanding, 30 Inch
5 diagrams156 parts
Parts Sections (5)

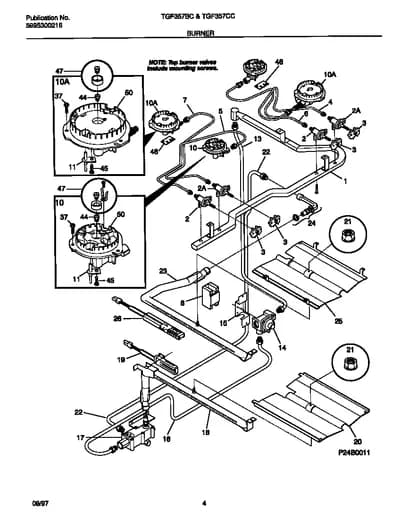

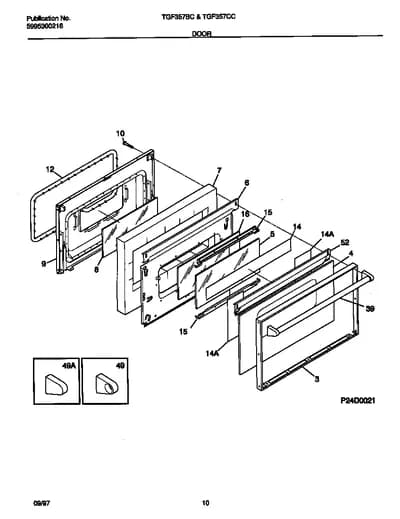

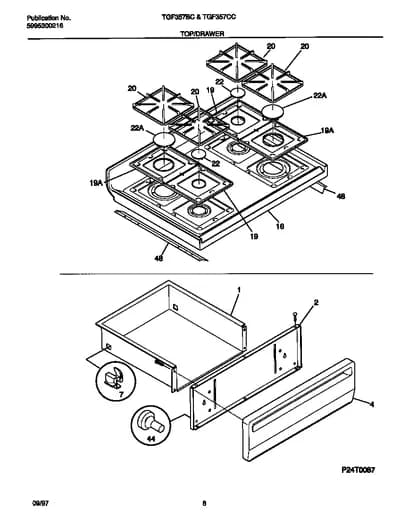

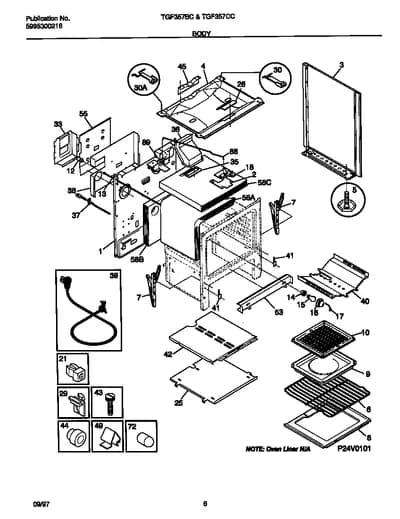

Diagram

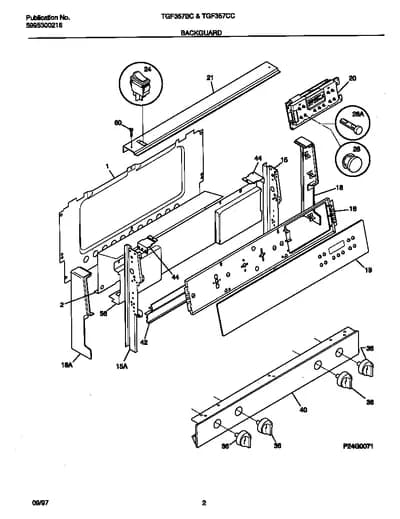

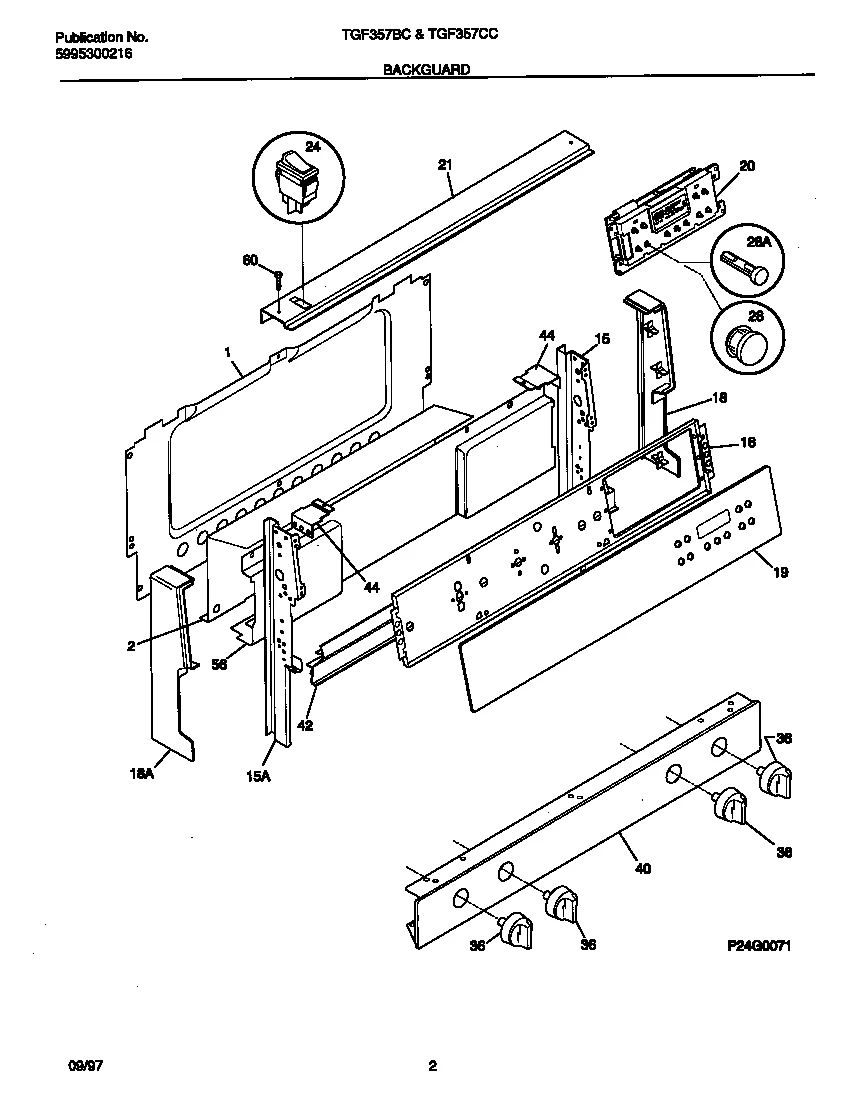

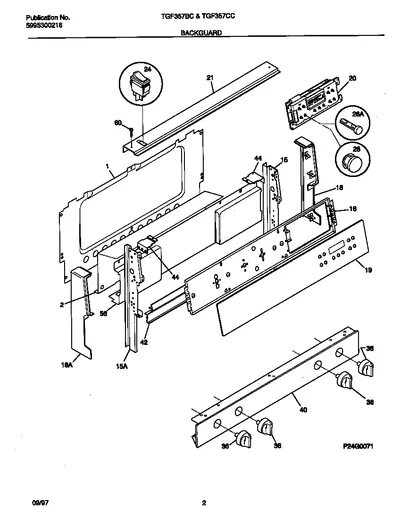

BACKGUARD
Parts in BACKGUARD
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 316028701 SHIELD, REAR WALL, BACKGUARD | - |
| 2 | – | 316038803 SHIELD-BACKGUARD, INNER | - |
| 15 |  | Support,backguard ,LH | - |
| 15 | | SUPPORT-BACKGUARD, RH | - |
| 16 | – | 316083601 PLATE, INSTRUMENT MTG | - |
| 18 | – | 316021806 END CAP, ALMOND, RH | - |
| 18 | – | 316021807 END CAP, ALMOND, LH | - |
| 19 | – | 316028351 PANEL-CONTROL, GLASS, ALMOND | - |
| 19 | – | 5303272836 CLIP-BACKGROUND (NON-ILLUSTRATED) | - |
| 20 | | 316080102NLA CLOCK/TIMER, EOC | Discontinued |
| 21 | – | 316039203 TRIM-CANOPY/SHIELD, ALMOND | - |
| 24 | – | 316060401 SWITCH-OVEN LIGHT, ROCKER TYPE, ALMOND | - |
| 28 | | 316015102replaces 316015105 PUSH BUTTON, CLOCK/TIMER/EOC, ALMOND, (11) | - |
| 28 | | 316080600NLA PUSH BUTTON-SHAFT, CLOCK/TIMER/EOC, BLACK (NOT ILLUSTRATED) | Discontinued |
| 36 | – | 316023022 KNOB-CONTROL, ALMOND, (4) | - |
| 40 | – | 316086814 PANEL-MANIFOLD, ALMOND | - |
| 42 | – | 5303272839 EXTRUSION-DEFLECTOR | - |
| 44 | – | 5303272831 BRACKET-SUPPORT B/G (2) | - |
| 56 | – | 316074902 DEFLECTOR-FLUE, BLACK | - |
| 60 |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| *67320 | – | 5303290188 SCREW, 6 OV SDR, 8 18 X 1\2, CHROME | - |
| *67321 |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| *67322 | | 5303288574NLA SCREW, PLAS. TR HD SQDR, 8-10 X 3/8, (6) (NON-ILLUSTRATED) | Discontinued |
| *67323 | – | 316001446 HARNESS-WIRING, BACKGUARD | - |
