Tappan TGF362BBBD
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF362BBBDRange/Oven, Gas, Freestanding, 30 Inch
5 diagrams157 parts
Parts Sections (5)

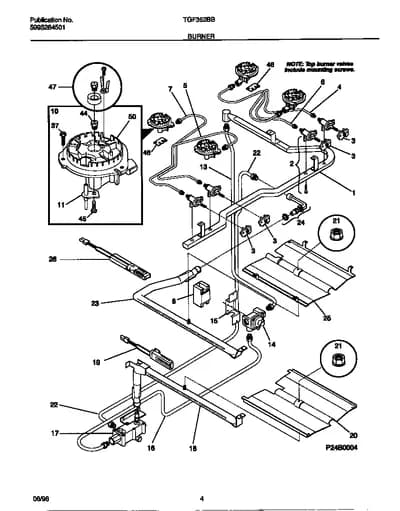

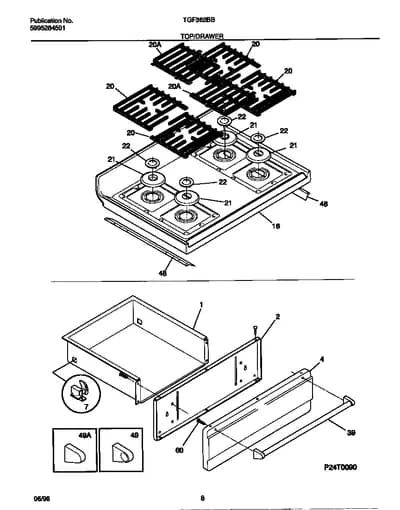

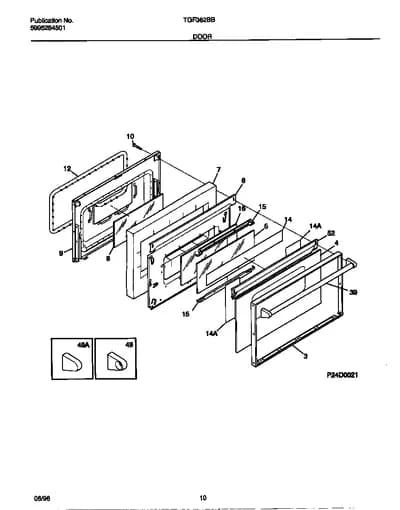

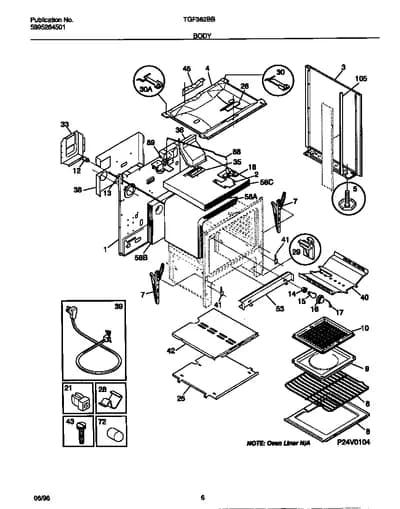

Diagram

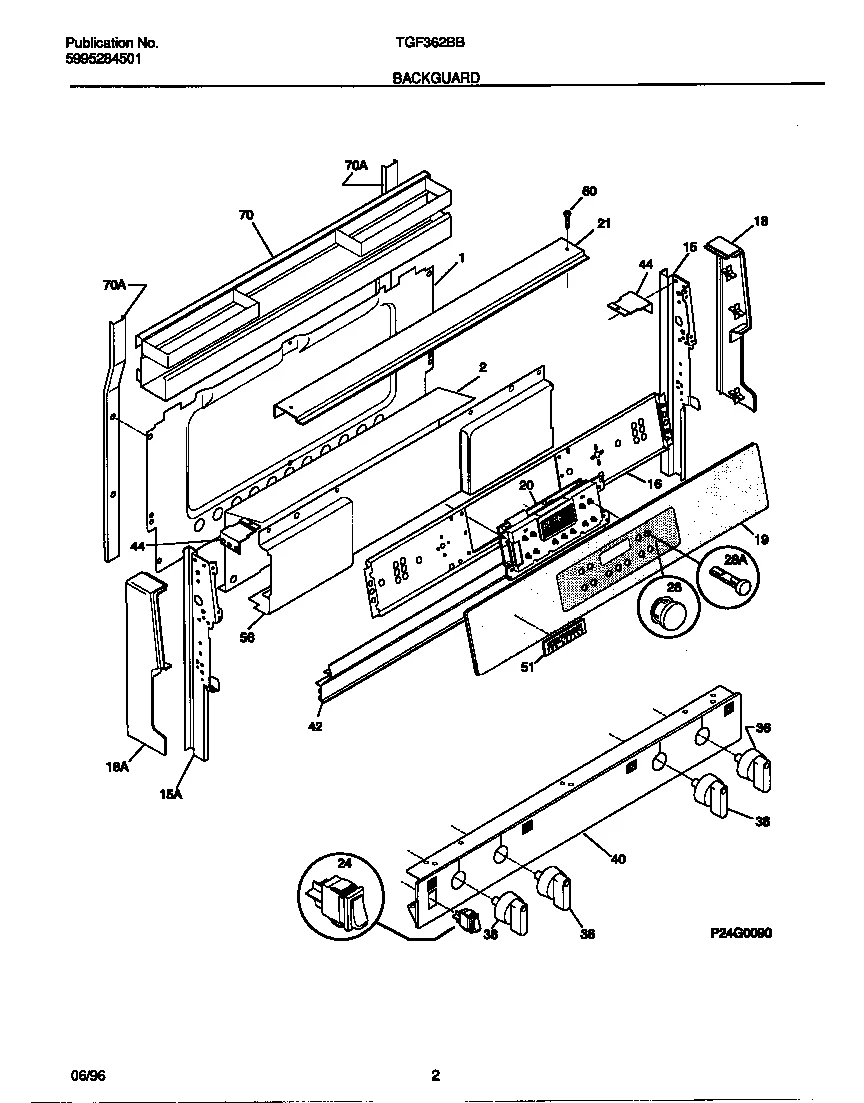

BACKGUARD
Parts in BACKGUARD
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 316028701 SHIELD, REAR WALL, BACKGUARD | - |
| 2 | – | 316038801 SHIELD-BACKGUARD, INNER | - |
| 15 | – | 316023110 SUPPORT-BACKGROUND, RH | - |
| 15 |  | 316023109replaces 316023111 SUPPORT-BACKGUARD, LH | - |
| 16 | – | 316042605 PLATE, INSTRUMENT MTG, BLACK | - |
| 18 |  | END CAP, BLACK, RH | - |
| 18 |  | END CAP, BLACK, LH | $35.58 RepairClinic |
| 19A | | PANEL-CONTROL, GLASS | - |
| 19B | – | 5303272836 CLIP-BACKGROUND (NON-ILLUSTRATED) | - |
| 20 | | 316080102NLA CLOCK/TIMER, EOC | Discontinued |
| 21 | – | 316039201 TRIM-CANOPY/SHIELD | - |
| 24 | | SWITCH-ROCKER, BLACK | - |
| 28 | | PUSH BUTTON, BLACK, CLOCK/TIMER/EOC | - |
| 28 | | 316080600NLA PUSH BUTTON-SHAFT, CLOCK/TIMER/EOC, BLACK (NOT ILLUSTRATED) | Discontinued |
| 36 | | KNOB-CONTROL, BLACK | - |
| 40 | – | 316062349 PANEL-MANIFOLD, STAINLESS | - |
| 42 | – | 5303272839 EXTRUSION-DEFLECTOR | - |
| 44 | – | 5303272831 BRACKET-SUPPORT B/G (2) | - |
| 51 | – | 316074200 NAMEPLATE, TAPPAN | - |
| 56 | – | 316074902 DEFLECTOR-FLUE, BLACK | - |
| 60 |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| 70 | | SUPPORT, SPICE RACK | - |
| 70 | | 316069700NLA RACK-SPICE, STAINLESS | Discontinued |
| *02760 |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| *02761 | | 5303288574NLA SCREW, PLAS. TR HD SQDR, 8-10 X 3/8, (6) (NON-ILLUSTRATED) | Discontinued |
| *02762 | | HARNESS-WIRING, BACKGUARD | - |
