Model
Tappan TGF364AQB
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF364AQBRange/Oven, Gas, Freestanding, 30 Inch
5 diagrams145 parts
Parts Sections (5)
Diagram

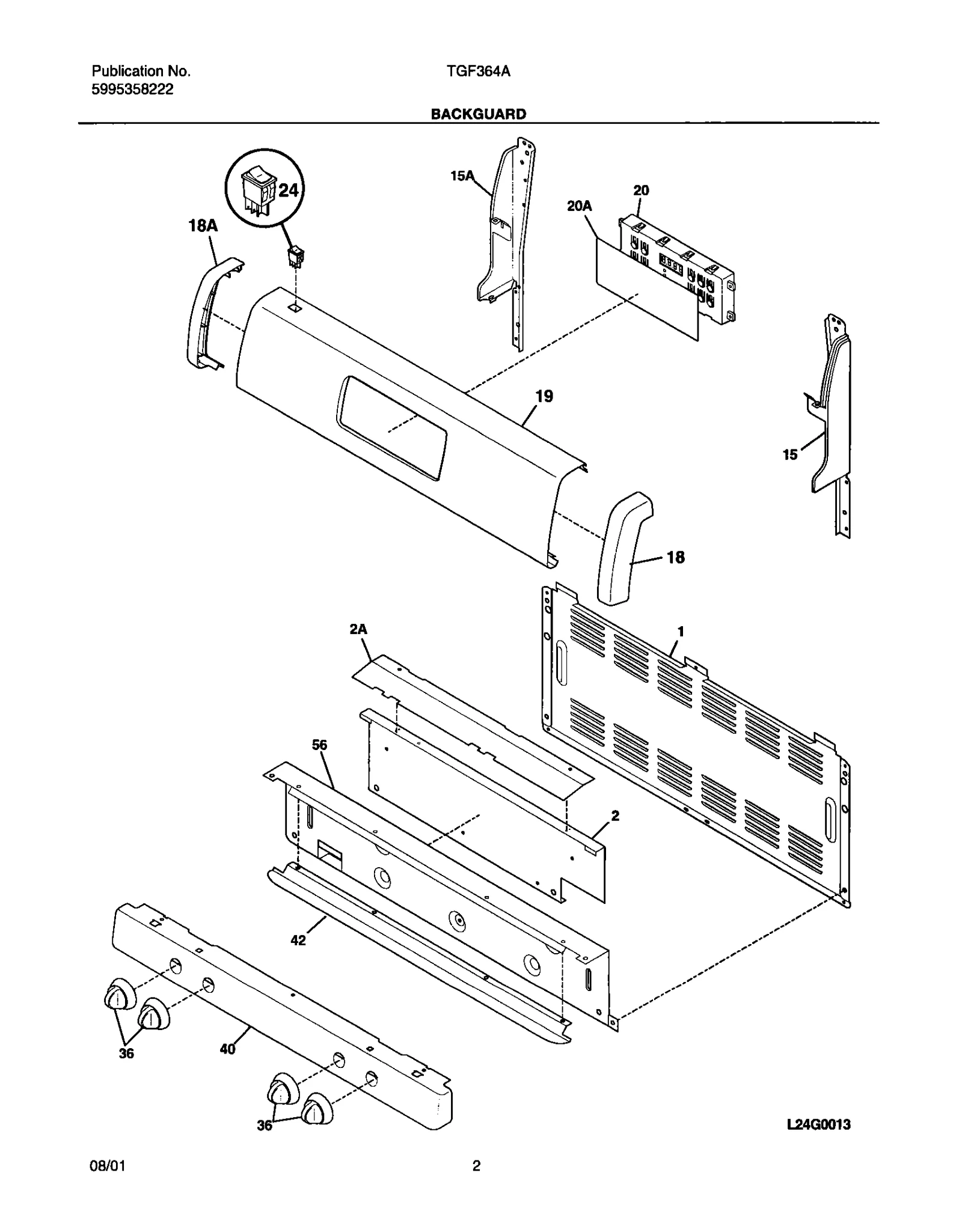

BACKGUARD
Parts in BACKGUARD
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Shield,backguard ,rear wall | - |
| 2 |  | 316497600replaces 316051600 Shield,backguard ,inner | - |
| 2A | | 316497600replaces 316235100 Shield-top inner | - |
| 15 | | 316220218replaces 316220208 Support,backguard ,bisque ,RH | - |
| 15A | | 316220219replaces 316220209 Support,backguard ,bisque ,LH | - |
| 18 | | End Cap,bisque ,RH | - |
| 18A | | End Cap,bisque ,LH | - |
| 19 | – | 316244418 Panel,backguard ,bisque | - |
| 20 |  | 316207520replaces 316222900 Clock/timer,electronic | $279.38 PartSelect |
| 20A | – | 316220813 Overlay,clock ,bisque | - |
| 24 |  | Switch,rocker ,bisque ,oven light | - |
| 36 | – | 316109516 Knob,top valve ,bisque | - |
| 40 | – | 316204931 Panel,manifold ,bisque | - |
| 42 | – | 316245701 Trim,extrusion ,aluminum | - |
| 56 |  | 316230708replaces 316230701 SHIELD, BACKGUARD, INNER | $45.67 ApplianceParts Pro |
| NI |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| NI |  | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
| NI | | Screw,8-18 x 0.5 ,chrome | $8.20 Part Advantage |
