Model
Tappan TGF365CHSC
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF365CHSCRange/Oven, Gas, Freestanding, 30 Inch
5 diagrams143 parts

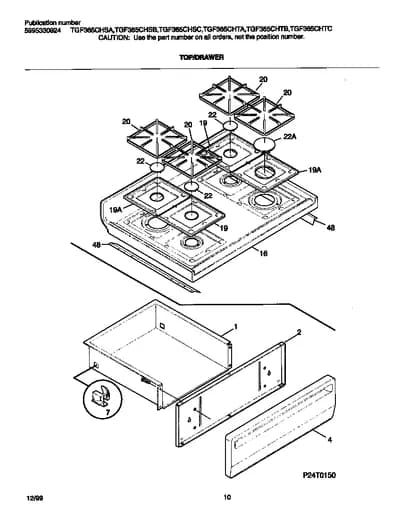

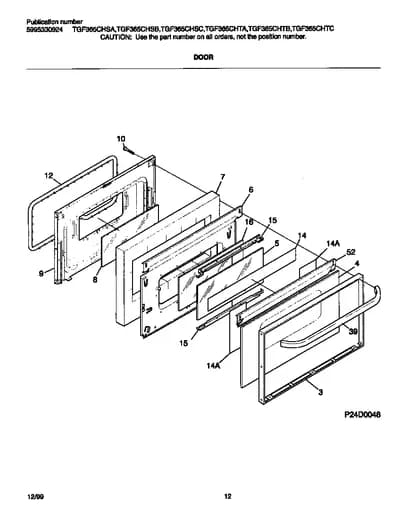

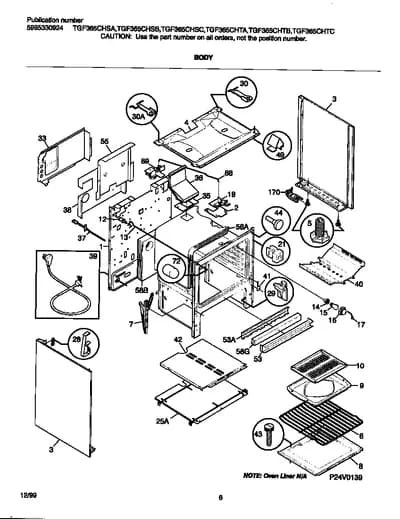

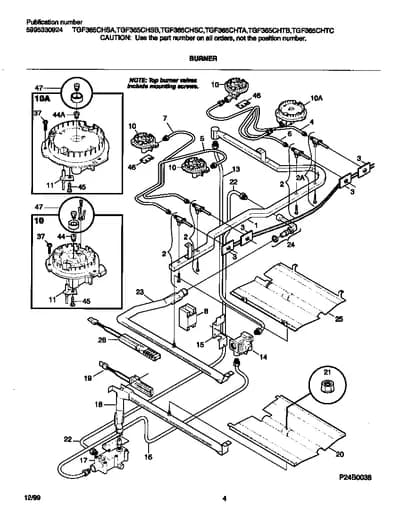

Parts Sections (5)
Diagram

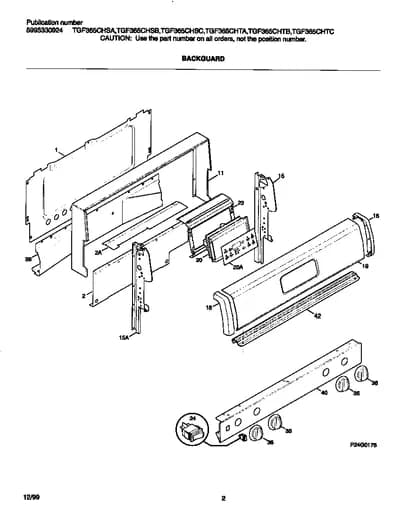

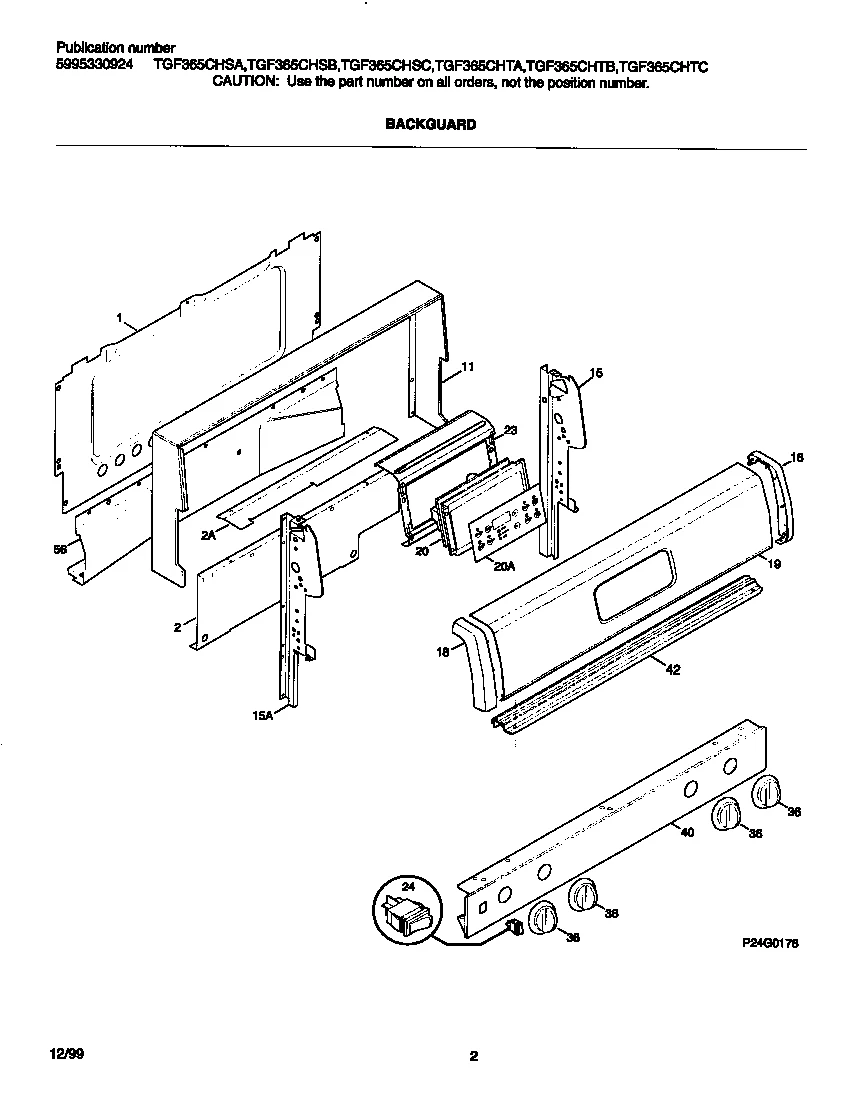

BACKGUARD
Parts in BACKGUARD
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 5303288505 655F SHIELD-REAR WALL B/G,1 | - |
| 2 | – | 316053803 Shield-backguard,inner top | - |
| 11 | – | 316061857 TRIM-WRAPPER TEX GAS WHITE,TEXTURED ,WHITE | - |
| 15 |  | Support,backguard ,LH | - |
| 15 | | SUPPORT-BACKGUARD, RH | - |
| 18 | – | 316115210 END CAP,RH | - |
| 18 | | 316115211NLA END CAP,LH | Discontinued |
| 19 | – | 316115009 PANEL-BG G TAPP TL TA WHT CM,19 | - |
| 20 | | 316101000NLA CLOCK/TIMER, ELECTRONIC | Discontinued |
| 23 | – | 316131501 BRACKET-TIMER TL CONTROL,23 | - |
| 24 | | SWITCH-ROCKER, OVEN LIGHT, WHITE, RH, (1) | - |
| 36 | | 316109503NLA KNOB-TOP VALVE WHITE,WHITE | Discontinued |
| 40 | – | 316086857 PANEL-MANIFOLD WHT W/SW SOLID,40 | - |
| 42 | – | 316055203 Trim-extrusion,chrome | - |
| 56 | – | 316074907 DEFLECTOR-FLUE, BLACK | - |
| *33602 | – | 316077401 SHIELD-MAINTOP, (2) (NOT ILLUSTRATED) | - |
| *33603 | – | 316001465 HARNESS-WIRING,BACKGUARD | - |
| *33604 | – | 316002171 DIAGRAM-WIRING | - |
| *33605 |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| *33606 |  | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
| *33607 | – | 316021122 Screw,truss hd `8-18 x 0.375 ,white | - |
| *33609 | – | 316105822 Instructions,installation | - |
| *33610 |  | Template, Anti-tip bracket | - |
| *33611 | | Overlay-clock,white | - |
| *33612 | | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
