Model
Tappan TGF365CHTA
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF365CHTARange/Oven, Gas, Freestanding, 30 Inch
5 diagrams144 parts

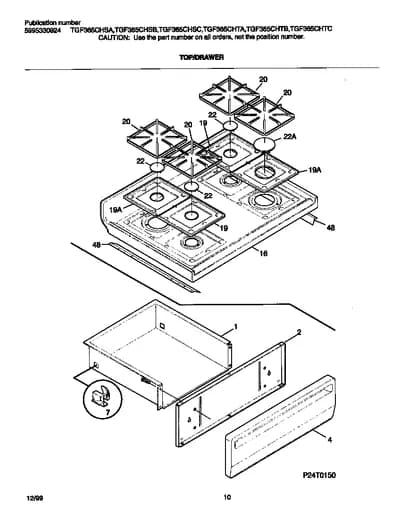

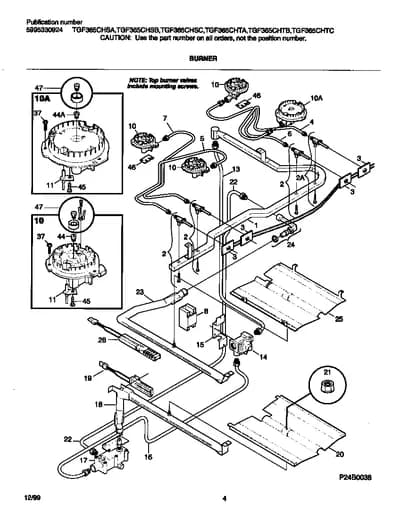

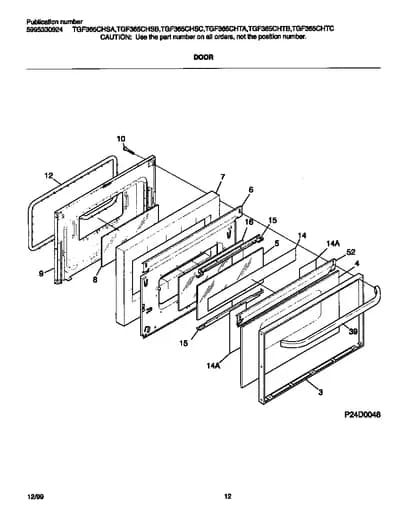

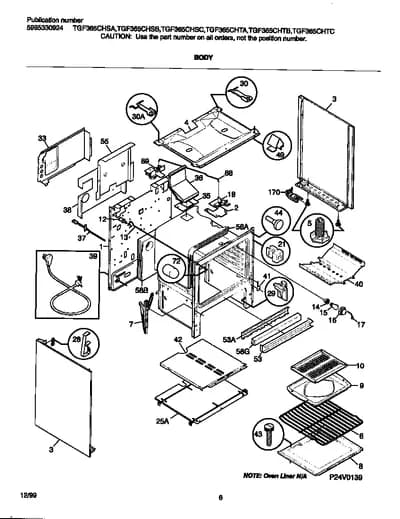

Parts Sections (5)
Diagram

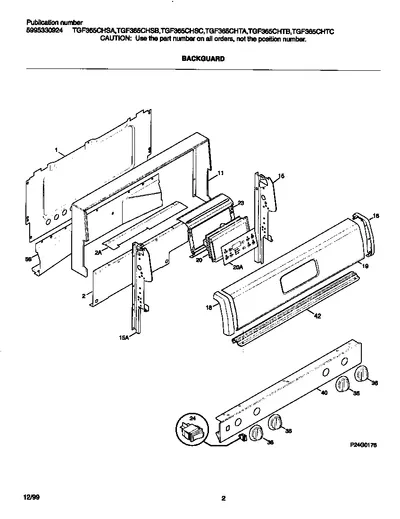

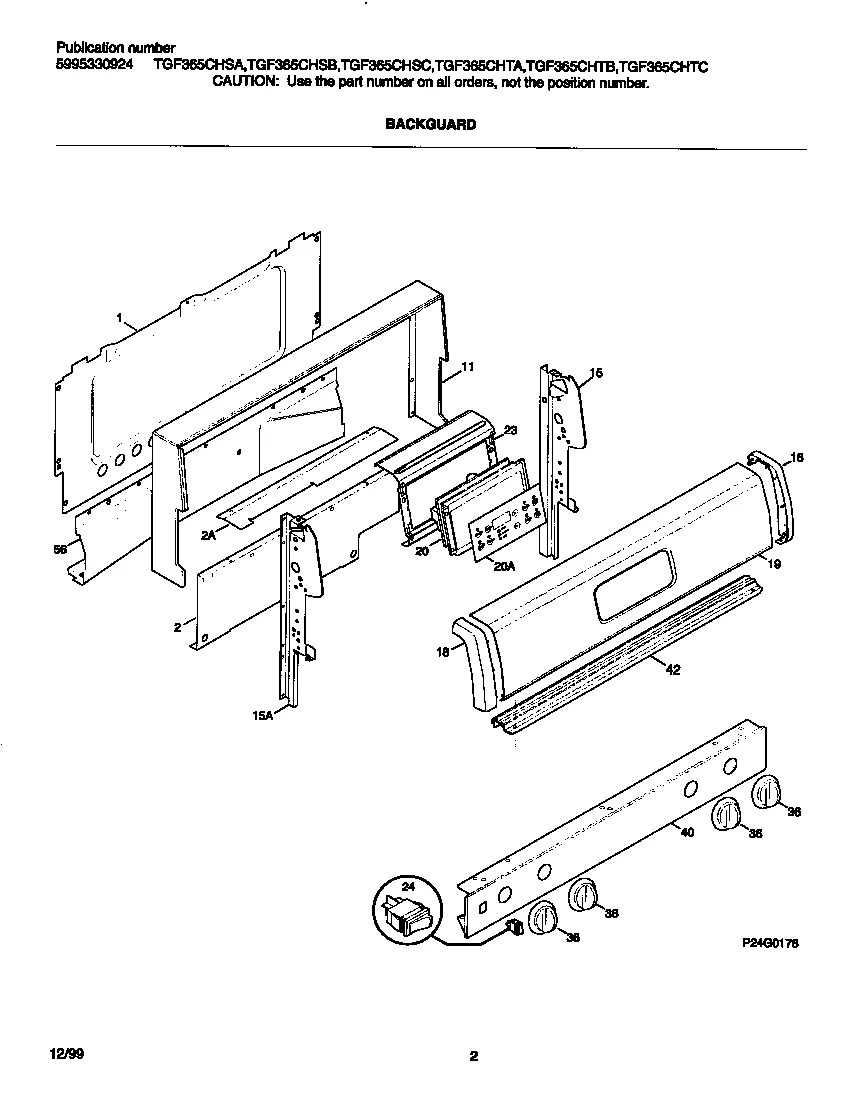

BACKGUARD
Parts in BACKGUARD
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 5303288505 655F SHIELD-REAR WALL B/G,1 | - |
| 2 | – | 316053803 Shield-backguard,inner top | - |
| 11 | – | 316061858 TRIM-WRAPPER,TEXTURED ,ALMOND | - |
| 15 |  | SUPPORT-BACKGUARD, RH | - |
| 15 | | Support,backguard ,LH | - |
| 18 | – | 316115203 CAP-END BG ALM LH | - |
| 18 | – | 316115202 CAP-END BG ALM RH | - |
| 19 | – | 316115010 PANEL-BG G TAPP TL TA ALM CM,19 | - |
| 20 | | 316101000NLA CLOCK/TIMER, ELECTRONIC | Discontinued |
| 23 | – | 316115101 BRACKET TIMER | - |
| 24 | – | 316083104 Switch-rocker,oven light ,almond ,RH ,(1) | - |
| 36 | – | 316109504 KNOB-TOP VALVE, ALMOND | - |
| 40 | – | 316086858 PANEL-MANIFOLD ALM W/SW SOLID,40 | - |
| 53 | – | 316055202 EXTRUSION, BOTTOM TRIM | - |
| 56 | – | 316074907 DEFLECTOR-FLUE, BLACK | - |
| *33600 | – | 316101526 OVERLAY-TL ALM, SEE ITEM 20 | - |
| *33601 | – | 316101526 OVERLAY-TL ALM, SEE ITEM 20 | - |
| *33603 | – | 316001465 HARNESS-WIRING,BACKGUARD | - |
| *33604 | – | 316002171 DIAGRAM-WIRING | - |
| *33605 |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| *33606 |  | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
| *33608 | – | 316021124 Screw,truss hd ,8-18 x 0.375 ,almond | - |
| *33610 |  | Template, Anti-tip bracket | - |
| *33612 | | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
