Model
Tappan TGF367CFTA
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF367CFTARange/Oven, Gas, Freestanding, 30 Inch
5 diagrams159 parts
Parts Sections (5)
Diagram

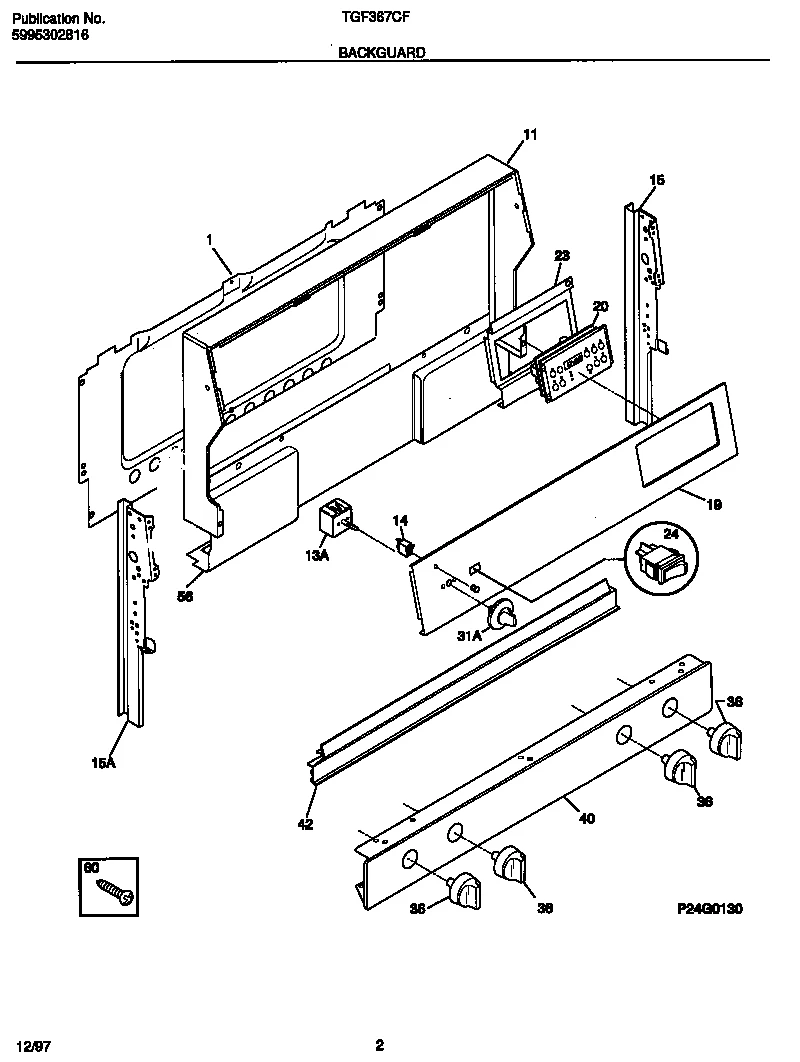

BACKGUARD
Parts in BACKGUARD
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 316028701 SHIELD, REAR WALL, BACKGUARD | - |
| 11 | – | 316061848 TRIM-WRAPPER, ALMOND | - |
| 13 |  | 5304508926replaces 316095500 SWITCH-WARMER, INFINITE, DRAWER/ZONE, (2) | $45.53 Part Advantage |
| 14 |  | Light/Lamp,indicator ,black ,125 V | $31.81 Parts Dr |
| 15 |  | SUPPORT-BACKGUARD, RH | - |
| 15 | | Support,backguard ,LH | - |
| 19 | – | 316082642 PANEL-CONTROL, ALMOND | - |
| 20 | | 316101000NLA CLOCK/TIMER, ELECTRONIC | Discontinued |
| 23 | – | 316100400 BRACKET-CLOCK MTG | - |
| 24 | – | 316005608 SWITCH-ROCKER, ALMOND, OVEN LIGHT | - |
| 31 | – | 316015208 KNOB-CONTROL, ALMOND | - |
| 36 | – | 316023022 KNOB-CONTROL, ALMOND, (4) | - |
| 40 | – | 316086814 PANEL-MANIFOLD, ALMOND | - |
| 42 | – | 316083300 Trim,vent ,black | - |
| 56 | – | 316074907 DEFLECTOR-FLUE, BLACK | - |
| 60 |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| *15280 |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| *15281 |  | 318228310replaces 316040201 LENS-LIGHT/LAMP, INDICATOR, RED, (4) | $6.54 Part Advantage |
