Model
Tappan TGF602PGW1
Range/Oven, Gas, Freestanding, 36 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF602PGW1Range/Oven, Gas, Freestanding, 36 Inch
5 diagrams110 parts
Parts Sections (5)
Diagram

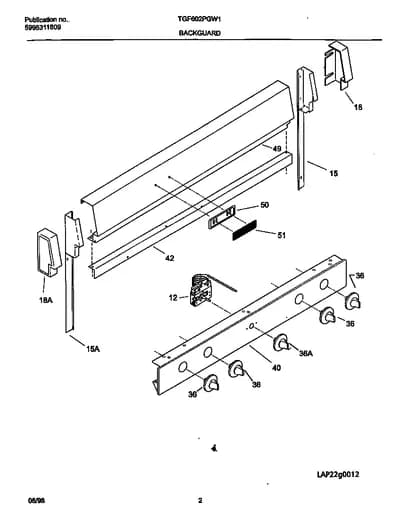

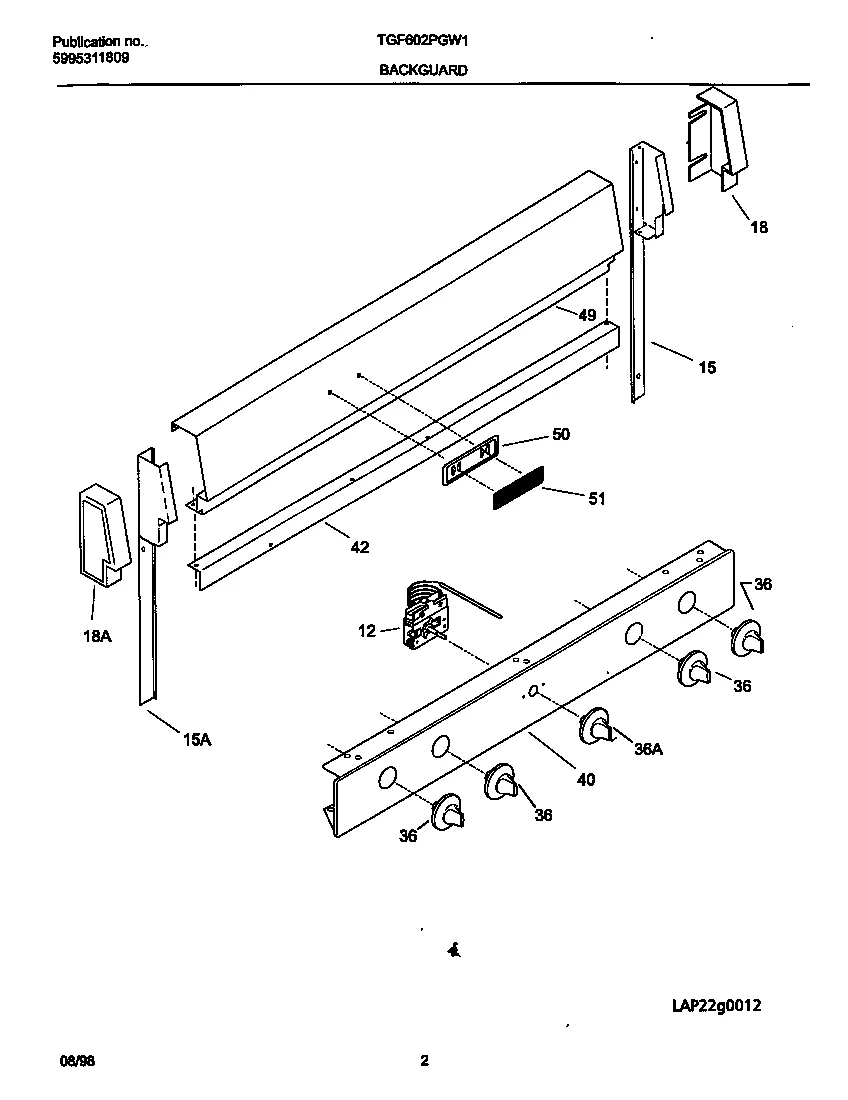

BACKGUARD
Parts in BACKGUARD
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 12 |  | Thermostat-oven | - |
| 15 | – | 318162100 SUPPORT-BACKGUARD,RH | - |
| 15 | – | 318162101 SUPPORT-BACKGUARD,LH | - |

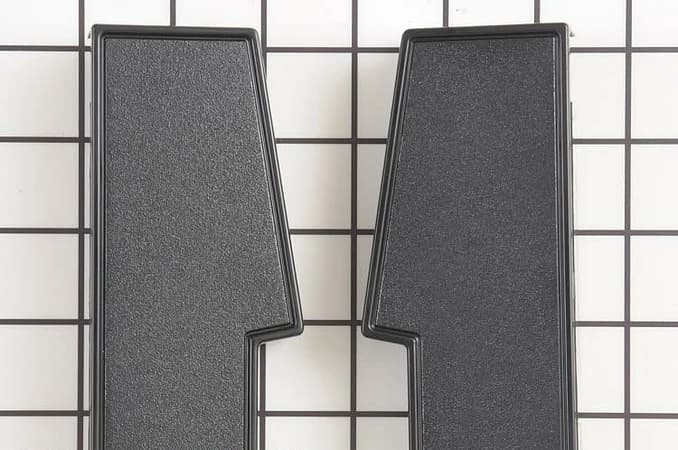

| 18 |  | 318254799replaces 318172600 END CAP,BLACK | - |
| 18 | | 318254799replaces 318172601 END CAP,BLACK | - |
| 36 |  | KNOB-TOP VALVE | - |
| 36 | | 318016816NLA Knob,thermostat | Discontinued |
| 40 | – | 318005301 PANEL-MANIFOLD,BLACK | - |
| 42 | – | 318169401 Trim-bottom,black | - |
| 49 | – | 318030811 BACKSPLASH PANEL | - |
| 50 | – | 318146602 Frame,nameplate ,black | - |
| 51 | – | 316071300 INSERT-NAMEPLATE | - |
| *40560 |  | 131892100replaces 5303311532 Screw,6-32 x 1/4`` ,back | $7.49 ApplianceParts Pro |
