Model
Tappan TGF602PGW4
Range/Oven, Gas, Freestanding, 36 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF602PGW4Range/Oven, Gas, Freestanding, 36 Inch
5 diagrams103 parts
Parts Sections (5)
Diagram

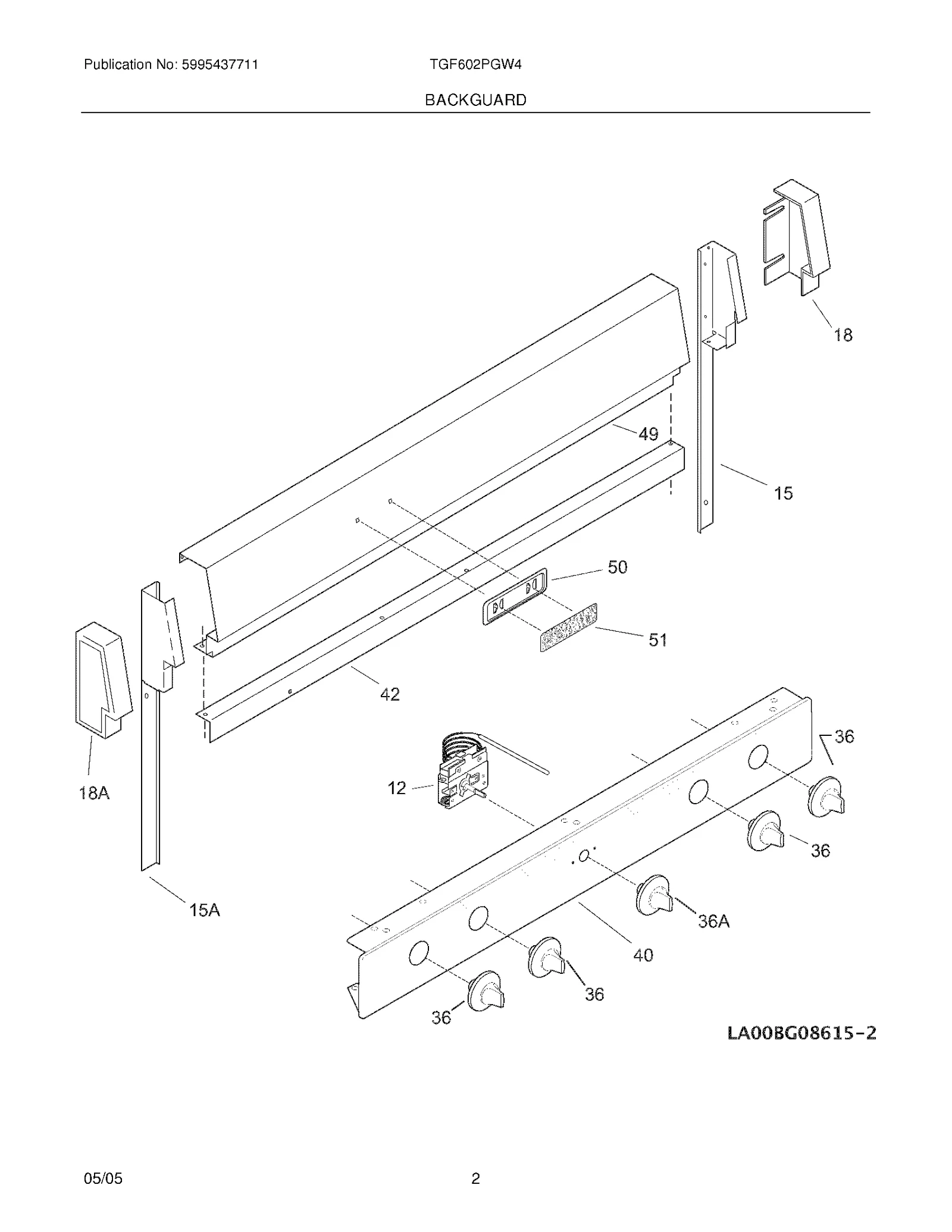

BACKGUARD
Parts in BACKGUARD
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 12 |  | Thermostat-oven | - |
| 15 | – | 318162100 SUPPORT-BACKGUARD,RH | - |
| 15A | – | 318162101 SUPPORT-BACKGUARD,LH | - |
| 18 |  | 318254799replaces 318254700 End Cap,black ,RH | - |
| 18A | | 318254799replaces 318254701 End Cap,black ,LH | - |
| 36 |  | KNOB-TOP VALVE | - |
| 36A | | Knob,thermostat | - |
| 40 | – | 318005301 PANEL-MANIFOLD,BLACK | - |
| 42 | – | 318169401 Trim-bottom,black | - |
| 49 | – | 318030811 BACKSPLASH PANEL | - |
| 50 | – | 318146602 Frame,nameplate ,black | - |
| 51 | – | 316095401 Nameplate,Tappan ,white | - |
| NI |  | SCREW, 8 X 1/2 (NOT ILLUSTRATED) | $22.95 ApplianceParts Pro |
| NI |  | 5303288565replaces 5303323134 SCREW, SWITCH MTG., 8-32 X 3/16, (6) (NOT ILLUSTRATED) | $2.70 RepairClinic |
