Model
Tappan TGF605WFD1
Range/Oven, Gas, Freestanding, 36 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF605WFD1Range/Oven, Gas, Freestanding, 36 Inch
5 diagrams137 parts
Parts Sections (5)
Diagram

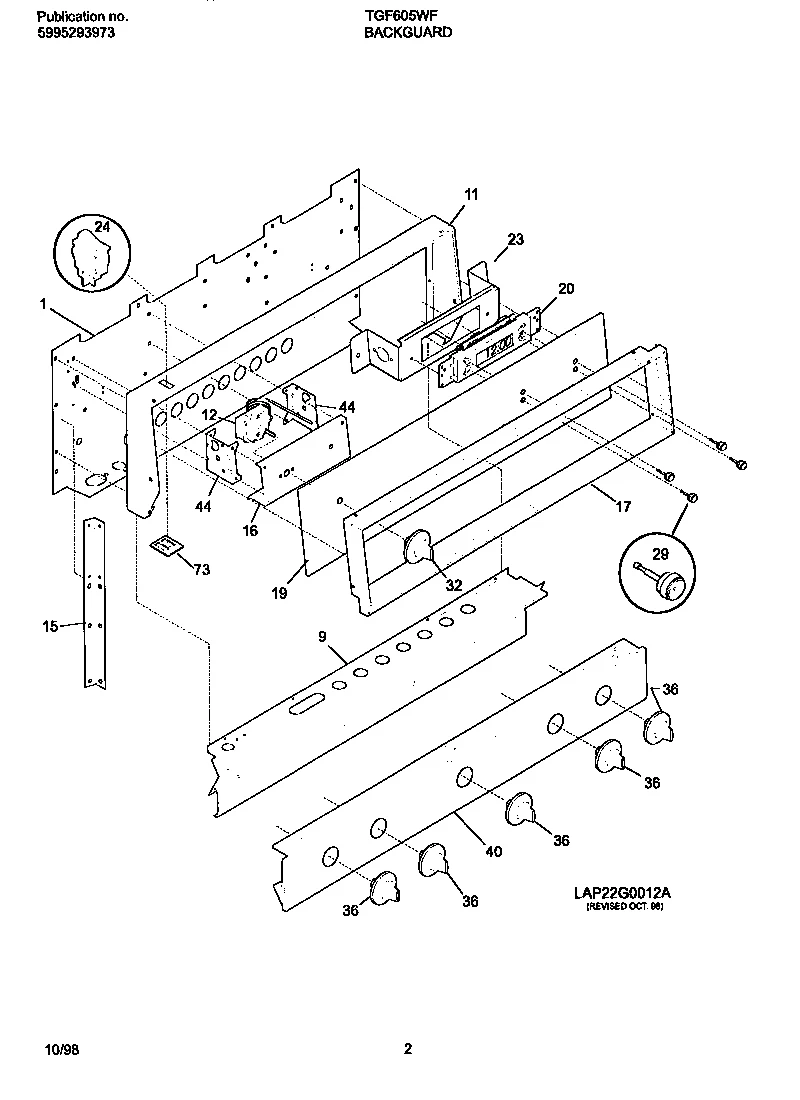

BACKGUARD
Parts in BACKGUARD
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 318022401 Shield,backguard ,rear wall | - |
| 9 |  | 318162001replaces 316030102 VENT DEFLECTOR | - |
| 11 | – | 5303317082 Trim,control panel | - |
| 12 | | THERMOSTAT-OVEN | - |
| 15 | – | 5308013296 Support,backguard ,(2) | - |
| 16 | – | 5303210475 THERMOSTAT MTG BRACKET | - |
| 17 | – | 5308013930 BACKGUARD GLASS TRIM | - |
| 19 | – | 318001005 PANEL-CONTROL, GLASS, BLACK | - |
| 20 | | CLOCK/TIMER,ELECTRONIC ,T.O.D. | - |
| 23 | – | 318015310 BRACKET-CLOCK MTG | - |
| 24 |  | SWITCH, OVEN LIGHT, ROCKER TYPE | $42.52 ApplianceParts Pro |
| 29 | | BUTTON-CLOCK | - |
| 32 | | 318016816NLA Knob,thermostat | Discontinued |
| 36 |  | 318016209replaces 318016208 KNOB-CONTROL, (5) | - |
| 40 | | PANEL-MANIFOLD | - |
| 44 | – | 5303286745 THERMOSTAT MOUNTING BRACKET SUPPORT | - |
| 73 | – | 318141200 Support,switch | - |
| *61880 | | Strain relief | - |
| *61881 | | BUSHING, SIDE PANEL, NYLON, RH, SNAP | $7.57 Parts Dr |
| *61882 |  | 216858001replaces 5303308450 SCREW, 8 X 3/8, CLOCK/DOOR (NOT ILLUSTRATED) | $9.94 ApplianceParts Pro |
| *61883 |  | 5304453707replaces 5303311333 SCREW-SWITCH MTG, SW TO CNTL PNL, (4) | $8.60 Part Advantage |
| *61884 |  | SCREW 6-20X5/8 OVAL HD AB AQDR,OVAL HD ,6-20 X 5/8,BLACK | - |
| *61885 |  | 131892100replaces 5303311532 Screw,6-32 x 1/4`` ,back | $7.49 ApplianceParts Pro |
