Tappan TGF605WFD7
Range/Oven, Gas, Freestanding, 36 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF605WFD7Range/Oven, Gas, Freestanding, 36 Inch
5 diagrams133 parts

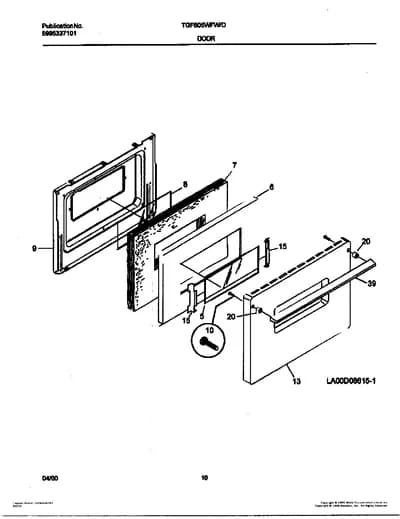

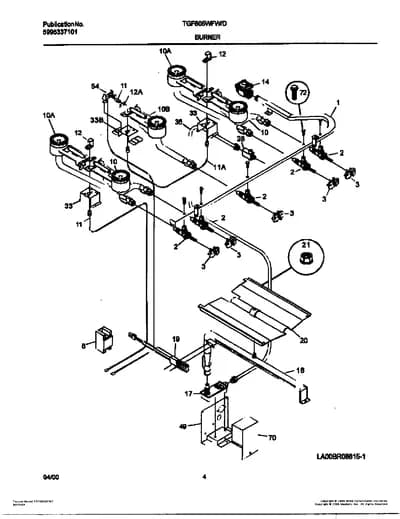

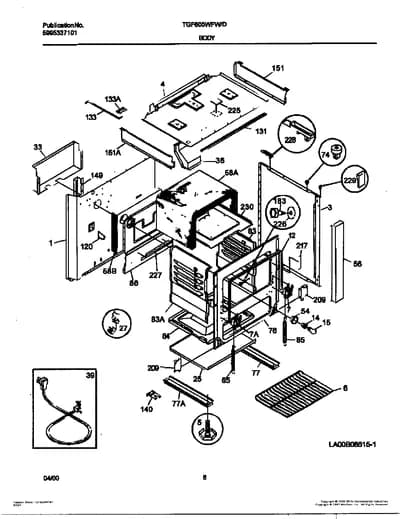

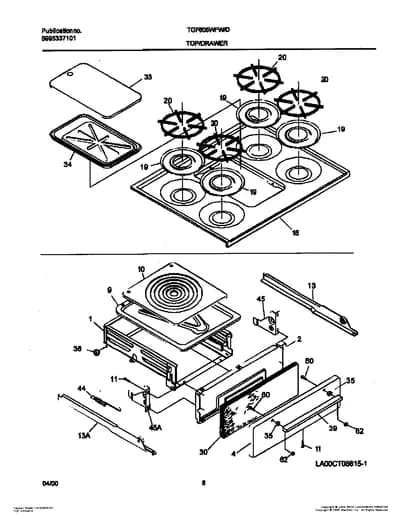

Parts Sections (5)
Diagram

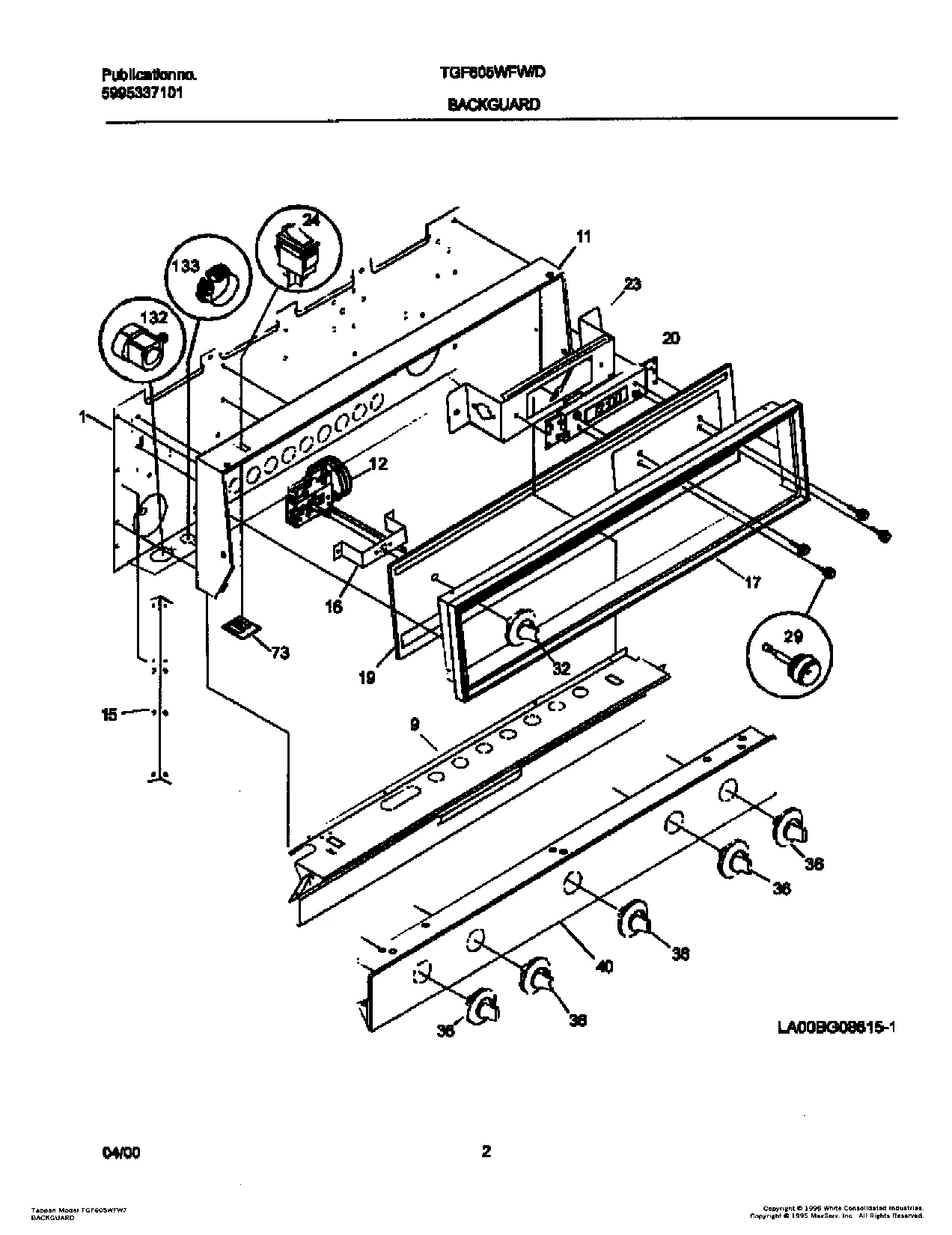

BACKGUARD
Parts in BACKGUARD
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 318022401 Shield,backguard ,rear wall | - |
| 9 | – | 318162003 SHIELD-INSULATION | - |
| 11 | – | 5303317082 Trim,control panel | - |
| 12 |  | THERMOSTAT-OVEN | - |
| 15 | – | 5308013296 Support,backguard ,(2) | - |
| 16 | – | 318171900 Bracket,control | - |
| 17 | – | 5308013930 BACKGUARD GLASS TRIM | - |
| 19 | – | 318001010 Panel,control ,glass | - |
| 20 | | Clock/Timer | - |
| 23 | – | 318015313 BRACKET-CLOCK MTG | - |
| 24 |  | SWITCH, OVEN LIGHT, ROCKER TYPE | $42.52 ApplianceParts Pro |
| 28 | | Push Button,clock set ,black ,(2) | - |
| 32 | | 318016816NLA Knob,thermostat | Discontinued |
| 36 |  | KNOB-TOP VALVE | - |
| 40 | | PANEL-MANIFOLD | - |
| 132 | | Strain relief | - |
| 133 | | BUSHING, SIDE PANEL, NYLON, RH, SNAP | $7.57 Parts Dr |
| *65400 |  | Screw,6 x 0.375 ,(4) | - |
| *65401 |  | Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box | $12.95 ApplianceParts Pro |
| *65402 |  | 131243700replaces 08016432 SCREW, TRUSS HEAD, 8-18 X 3/8, (4) (NOT ILLUSTRATED) | $1.96 Part Advantage |
| *65403 |  | 216858001replaces 5303308450 SCREW, 8 X 3/8, CLOCK/DOOR (NOT ILLUSTRATED) | $9.94 ApplianceParts Pro |
| *65404 |  | Screw,10-24 x 0.625 | - |
| *65405 |  | 5304453707replaces 5303311333 SCREW-SWITCH MTG, SW TO CNTL PNL, (4) | $8.60 Part Advantage |
| *65406 |  | SCREW 6-20X5/8 OVAL HD AB AQDR,OVAL HD ,6-20 X 5/8,BLACK | - |
| *65407 |  | 5308014215replaces 5303324180 SCREW,6 X 3/8 | $1.22 Part Advantage |
