Model
Tappan TGF605WFU1
Range/Oven, Gas, Freestanding, 36 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF605WFU1Range/Oven, Gas, Freestanding, 36 Inch
4 diagrams107 parts

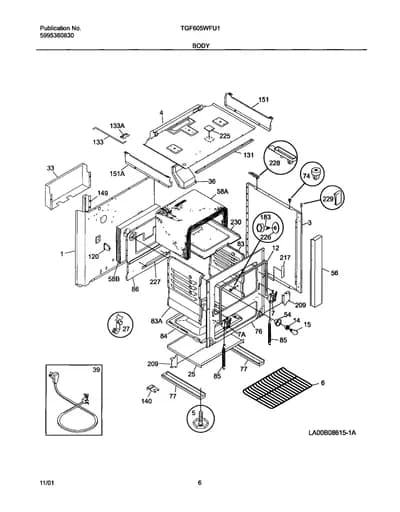

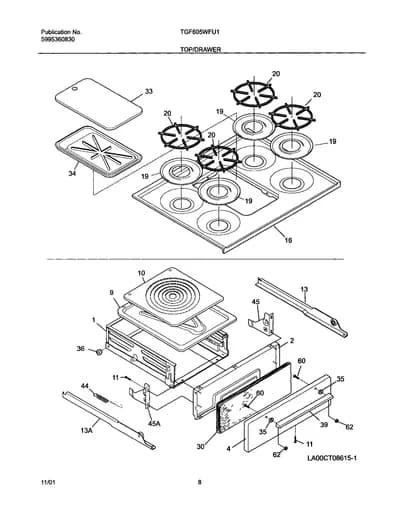

Parts Sections (4)
Diagram

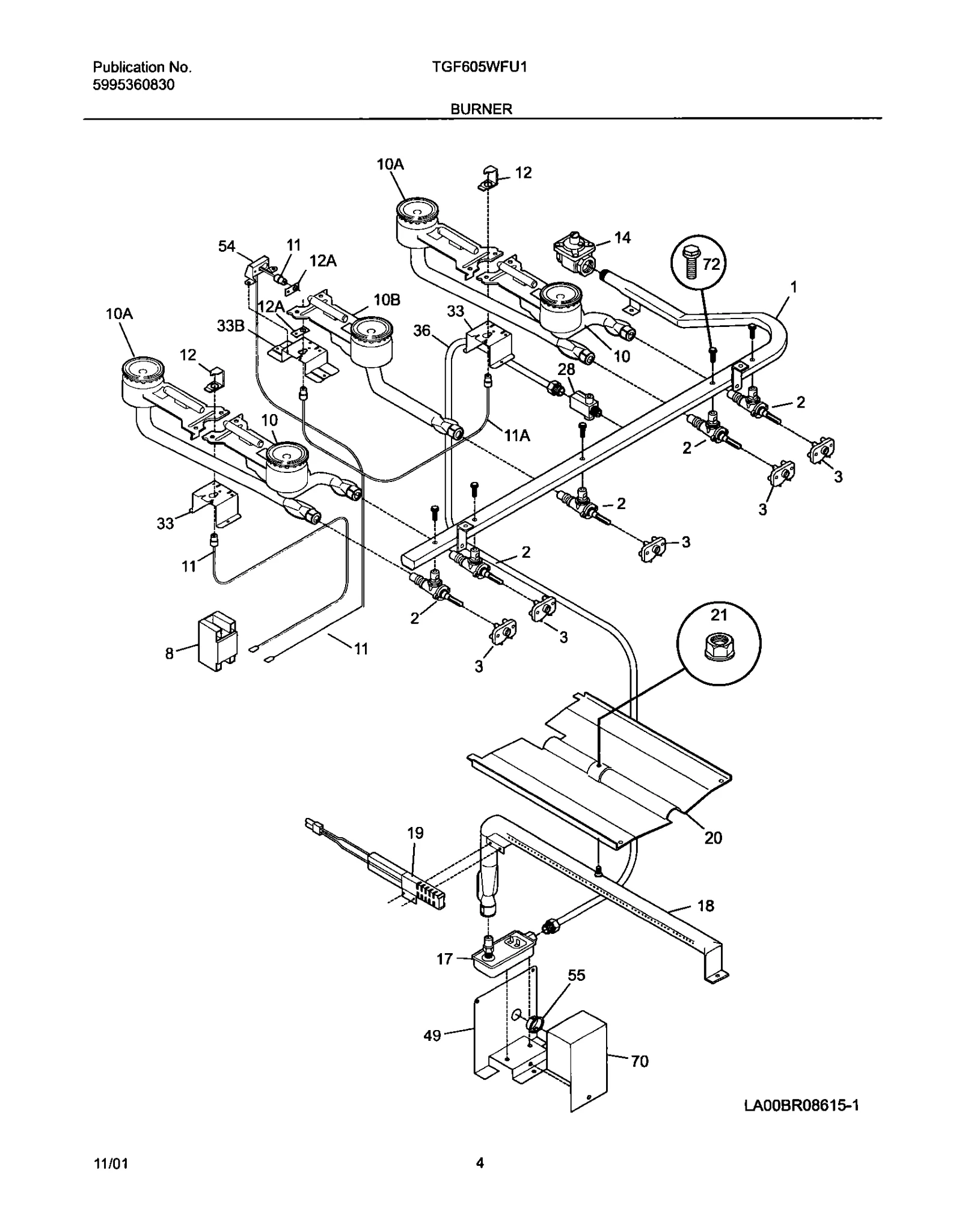

BURNER
Parts in BURNER
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 318177400 Pipe,manifold | - |

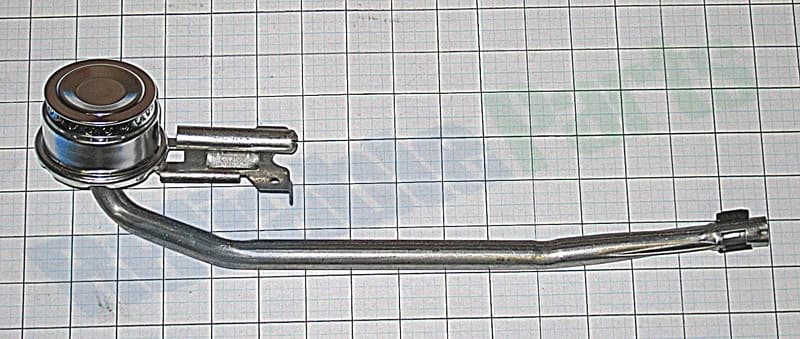

| 2 |  | VALVE-TOP BURNER, (5) | - |
| 3 |  | 316032000NLA SWITCH IGNITER-3 POS | Discontinued |
| 8 |  | 5304518635replaces 316135700 MODULE, SPARK | $52.65 Parts Dr |
| 10 | | 5303311551NLA BURNER ASSY-TOP,FRONT | Discontinued |
| 10A |  | REAR TOP BURNER (2 REQ`D) | - |
| 10B | | Burner,griddle | - |
| 11 | | 318148504NLA Ignitor,top burner | Discontinued |
| 11A | | 5303210548NLA TOP BURNER IGNITOR (RIGHT) | Discontinued |
| 12 | – | 5303311554 Retainer,ignitor | - |
| 12A | – | 5303311555 Retainer,ignitor ,griddle | - |
| 14 |  | REGULATOR, PRESSURE | $266.52 RepairClinic |
| 17 | | VALVE-SAFETY | - |
| 18 | | BURNER-OVEN | - |
| 19 |  | 5303935066replaces 318177720 Ignitor,oven burner | $24.20 Parts Dr |
| 20 | | Baffle,oven burner | - |
| 21 | | 154079601replaces 3201885 NUT (NOT ILLUSTRATED) | - |
| 28 |  | 5303131099replaces 318087400 VALVE-SHUT OFF | - |
| 33 | – | 5303210471 SUPPORT-TOP BURNER (2) | - |
| 33B | – | 5303210472 Bracket,burner mtg ,griddle | - |
| 36 | – | 5303323849 TUBE | - |
| 49 | – | 3131069 SUPPORT-OVEN SAFETY VALVE | - |
| 54 | – | 5303311553 BRACKET-IGNITOR, GRIDDLE | - |
| 55 | – | 5303324193 Bushing,snap ,nylon | - |
| 70 | – | 3131088 COVER - OVEN SAFETY VALVE | - |
| 72 | | SCREW-TOP VALVE MTG,HEX WASHER HEAD ,1/4-20 X 0.31,W/GAS | - |
| NI | | 5304413191replaces 5303286686 NUT, SUPPORT OVN VLV (NOT ILLUSTRATED) | - |
| NI | | BUSHING, SIDE PANEL, NYLON, RH, SNAP | $7.57 Parts Dr |
| NI |  | Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box | $12.95 ApplianceParts Pro |
| NI |  | BOLT-PANEL MTG (4) (10-24 X 3/8``) | - |
