Model
Tappan TGF645WCD2
Range/Oven, Gas, Freestanding, 36 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF645WCD2Range/Oven, Gas, Freestanding, 36 Inch
5 diagrams140 parts
Parts Sections (5)

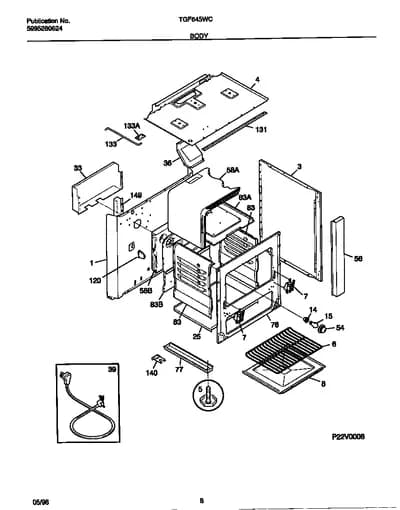

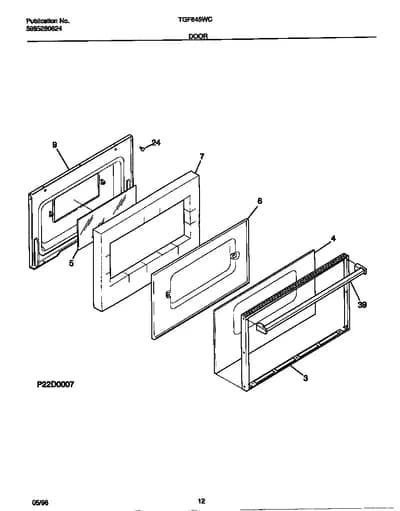

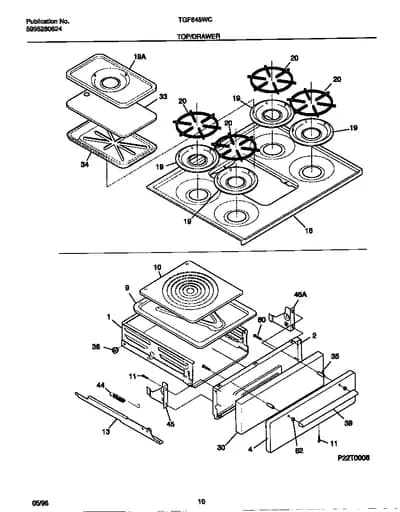

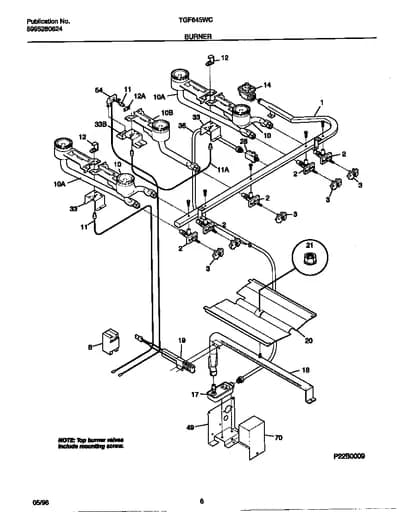

Diagram

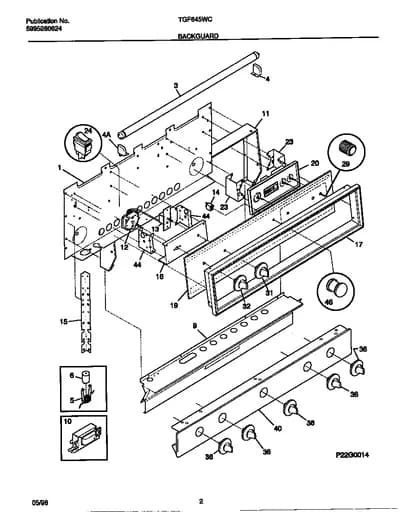

BACKGUARD
Parts in BACKGUARD
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 5303311525 SHIELD-BACKGUARD, REAR WALL | - |
| 3 |  | 5303286690NLA LAMP-FLUORESCENT, BACKGUARD | Discontinued |
| 4 | – | 5303311527 RECEPTACLE-LAMP, LH | - |
| 4 | – | 5303311526 RECEPTACLE-LAMP, RH | - |
| 5 | – | 5303286746 RECEPTACLE-STATER | - |
| 6 | | STARTER-FLUOR LIGHT | - |
| 9 | | 318162001replaces 316030102 VENT DEFLECTOR | - |
| 10 |  | 316099800replaces 5301308270 BALLAST-LAMP | - |
| 11 | | TRIM-WRAPPER | - |
| 12 | | THERMOSTAT-OVEN | - |
| 13 | | SWITCH-SELECTOR | - |
| 14 | | 5303051533NLA LIGHT/LAMP, INDICATOR, 125V, (2) | Discontinued |
| 15 | – | 5308013296 Support,backguard ,(2) | - |
| 16 | – | 5303210475 THERMOSTAT MTG BRACKET | - |
| 17 | – | 5308013930 BACKGUARD GLASS TRIM | - |
| 19 | – | 318001003 PANEL-CONTROL, GLASS | - |
| 20 | – | 318012201 CLOCK/TIMER, ANALOG 3 STEM | - |
| 23 | – | 5308008076 BRKT-CLOCK MTG (2) | - |
| 24 |  | SWITCH, OVEN LIGHT, ROCKER TYPE | $42.52 ApplianceParts Pro |
| 29 | | 316029000NLA KNOB-CLOCK, (3) | Discontinued |
| 31 | | KNOB-SELECTOR | - |
| 32 | – | 318016817 KNOB-THERMOSTAT | - |
| 36 |  | 318016209replaces 318016208 KNOB-CONTROL, (5) | - |
| 40 | | PANEL-MANIFOLD | - |
| 44 | – | 5303286745 THERMOSTAT MOUNTING BRACKET SUPPORT | - |
| 46 | | LENS-LIGHT/LAMP, INDICATOR | Discontinued |
| *48600 | – | 318055301 BRACKET-SELECTOR | - |
| *48601 | | BUSHING, SIDE PANEL, NYLON, RH, SNAP | $7.57 Parts Dr |
| *48602 |  | 216858001replaces 5303308450 SCREW, 8 X 3/8, CLOCK/DOOR (NOT ILLUSTRATED) | $9.94 ApplianceParts Pro |
| *48603 |  | 5304453707replaces 5303311333 SCREW-SWITCH MTG, SW TO CNTL PNL, (4) | $8.60 Part Advantage |
| *48604 |  | SCREW 6-20X5/8 OVAL HD AB AQDR,OVAL HD ,6-20 X 5/8,BLACK | - |
| *48605 | – | 5303316986 HARNESS-BACKGUARD, MAIN | - |
