Model
Tappan TGF645WFW1
Range/Oven, Gas, Freestanding, 36 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF645WFW1Range/Oven, Gas, Freestanding, 36 Inch
5 diagrams149 parts
Parts Sections (5)
Diagram

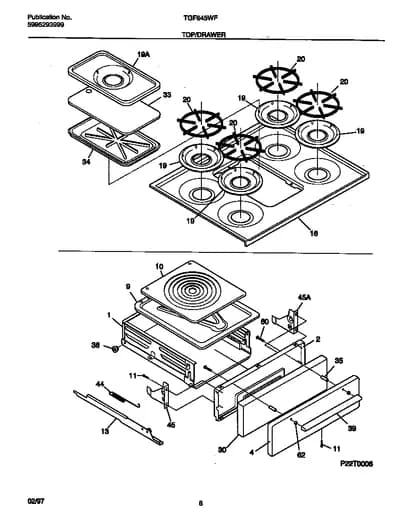

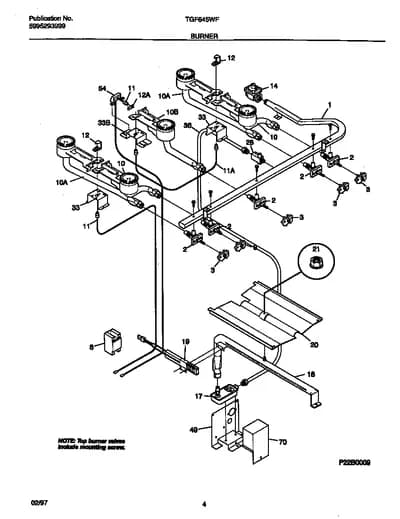

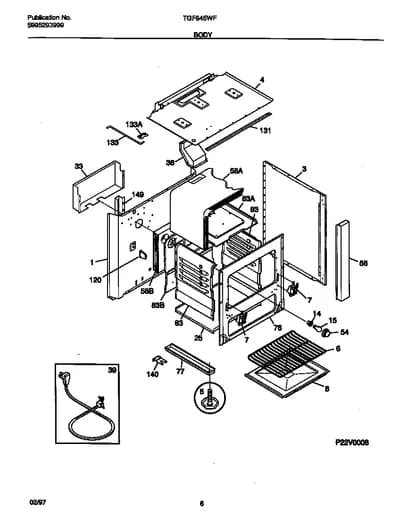

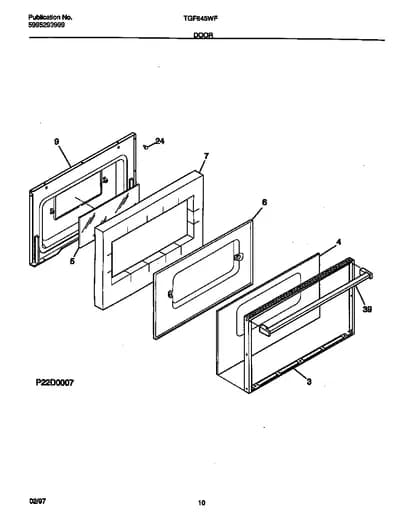

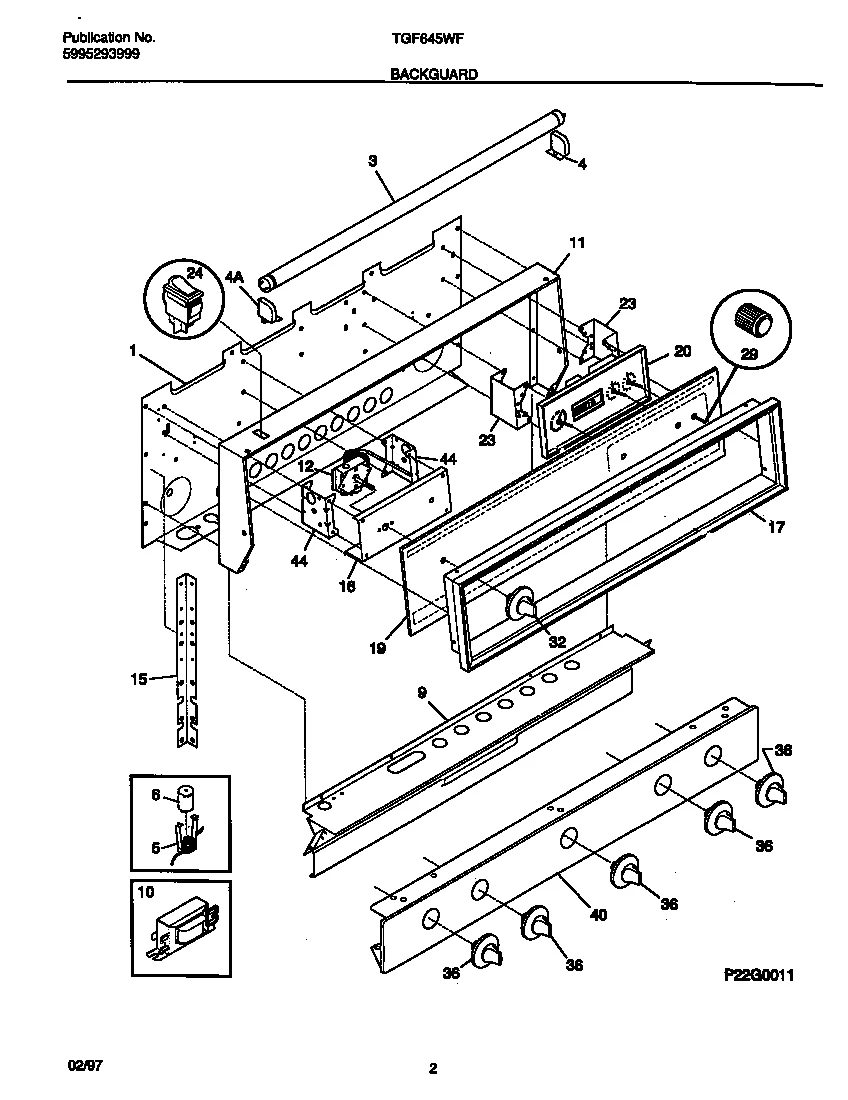

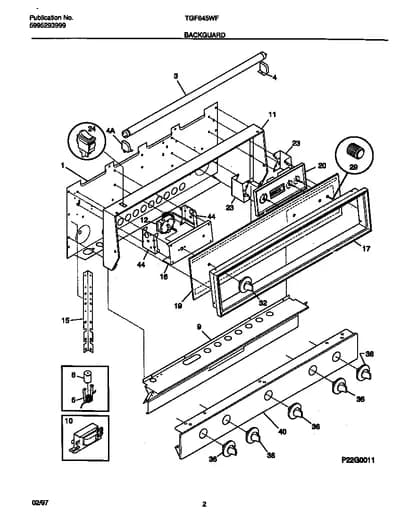

BACKGUARD
Parts in BACKGUARD
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 318022401 Shield,backguard ,rear wall | - |
| 3 |  | 5303286690NLA LAMP-FLUORESCENT, BACKGUARD | Discontinued |
| 4 | – | 5303311527 RECEPTACLE-LAMP, LH | - |
| 4 | – | 318110200 RECEPTACLE-LAMP, RH | - |
| 5 | – | 5303286746 RECEPTACLE-STATER | - |
| 6 | | STARTER-FLUOR LIGHT | - |
| 9 | | 318162001replaces 316030102 VENT DEFLECTOR | - |
| 10 | – | 318122801 BALLAST-LAMP | - |
| 11 | | TRIM-WRAPPER | - |
| 12 | | THERMOSTAT-OVEN | - |
| 15A | – | 5308013296 Support,backguard ,(2) | - |
| 15B |  | SPACER-END CAP (NOT ILLUSTRATED) | - |
| 16 | – | 5303210475 THERMOSTAT MTG BRACKET | - |
| 17 | – | 5308013930 BACKGUARD GLASS TRIM | - |
| 19 | – | 318001006 PANEL-CONTROL, GLASS | - |
| 20 | | 316065400NLA CLOCK/TIMER | Discontinued |
| 23 | – | 318015310 BRACKET-CLOCK MTG | - |
| 24 |  | SWITCH, OVEN LIGHT, ROCKER TYPE | $42.52 ApplianceParts Pro |
| 29 | | BUTTON-CLOCK | - |
| 32 | – | 318016817 KNOB-THERMOSTAT | - |
| 36 |  | 318016209replaces 318016208 KNOB-CONTROL, (5) | - |
| 40 | | PANEL-MANIFOLD | - |
| 44 | – | 5303286745 THERMOSTAT MOUNTING BRACKET SUPPORT | - |
| *16840 | | Strain relief | - |
| *16841 | | BUSHING, SIDE PANEL, NYLON, RH, SNAP | $7.57 Parts Dr |
| *16842 | – | 318055301 BRACKET-SELECTOR | - |
| *16843 |  | 216858001replaces 5303308450 SCREW, 8 X 3/8, CLOCK/DOOR (NOT ILLUSTRATED) | $9.94 ApplianceParts Pro |
| *16844 |  | 5304453707replaces 5303311333 SCREW-SWITCH MTG, SW TO CNTL PNL, (4) | $8.60 Part Advantage |
| *16845 |  | SCREW 6-20X5/8 OVAL HD AB AQDR,OVAL HD ,6-20 X 5/8,BLACK | - |
| *16846 |  | 131892100replaces 5303311532 Screw,6-32 x 1/4`` ,back | $7.49 ApplianceParts Pro |
