Model
Tappan TGF657BFD1
Range/Oven, Gas, Freestanding, 36 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF657BFD1Range/Oven, Gas, Freestanding, 36 Inch
5 diagrams157 parts

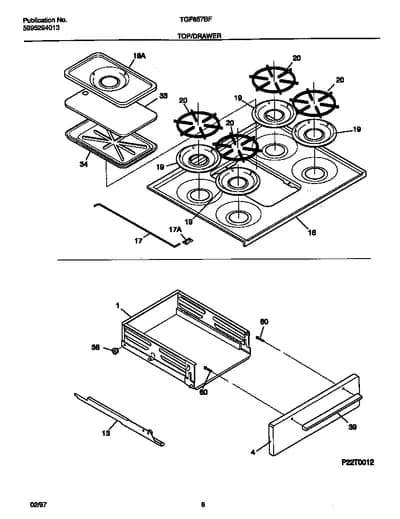

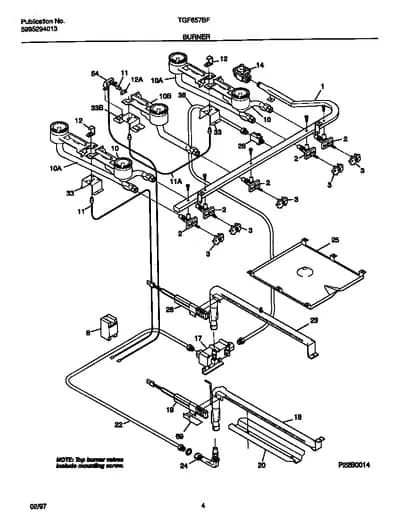

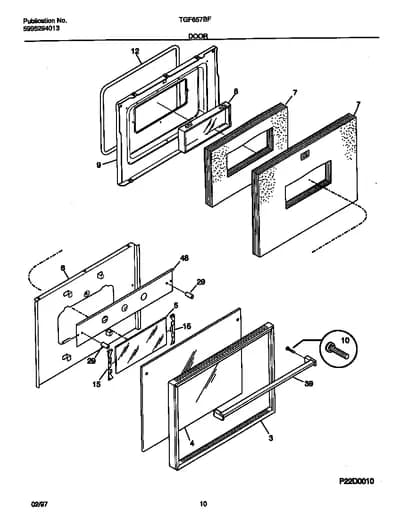

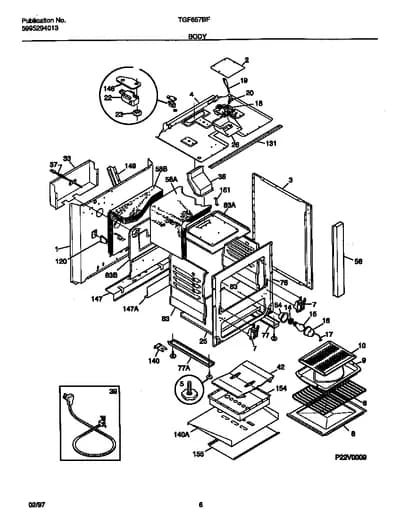

Parts Sections (5)
Diagram

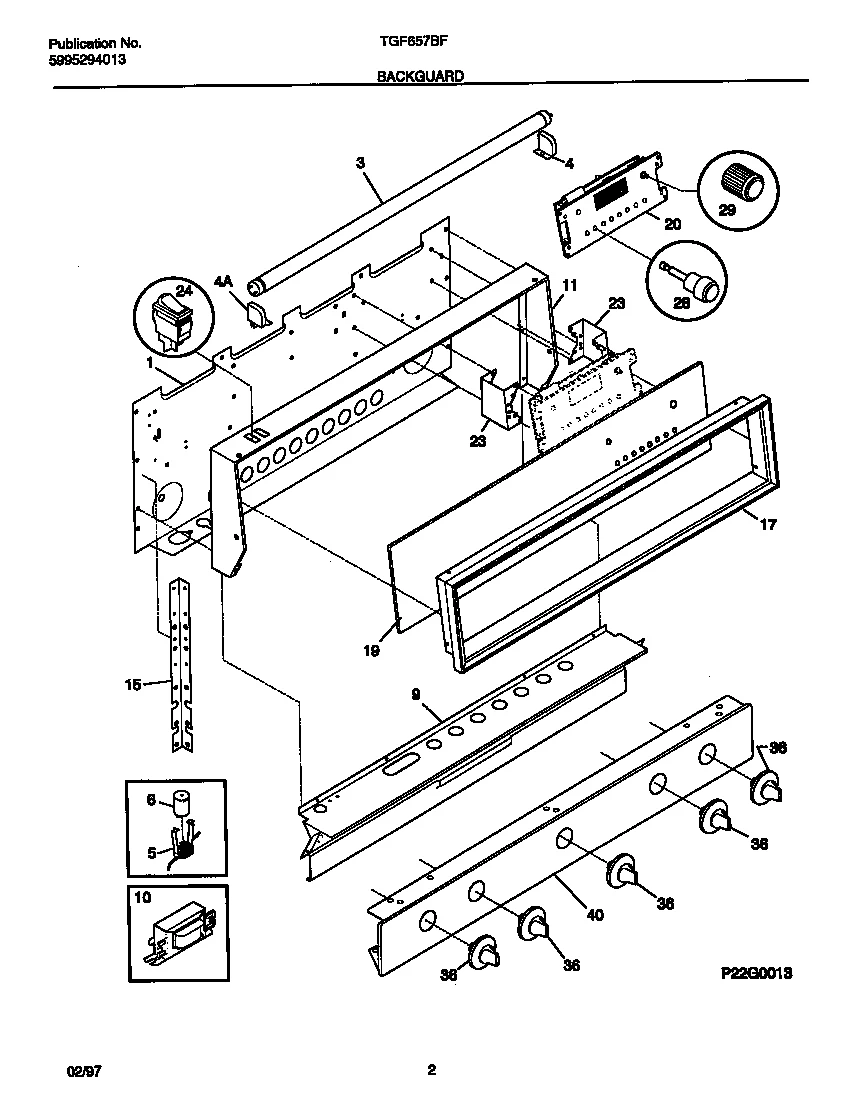

BACKGUARD
Parts in BACKGUARD
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 318022401 Shield,backguard ,rear wall | - |
| 3 |  | 5303286690NLA LAMP-FLUORESCENT, BACKGUARD | Discontinued |
| 4 | – | 5303311527 RECEPTACLE-LAMP, LH | - |
| 4 | – | 318110200 RECEPTACLE-LAMP, RH | - |
| 5A | | RECEPTACLE-STARTER | - |
| 5B | – | 5303286753 SCREW-SOCKET, STARTER (NOT ILLUSTRATED) | - |
| 6 | | STARTER-FLUOR LIGHT | - |
| 9 | | 318162001replaces 316030102 VENT DEFLECTOR | - |
| 10 | – | 318122800 BALLAST-LAMP | - |
| 11 | | TRIM-WRAPPER | - |
| 15A | – | 5308013296 Support,backguard ,(2) | - |
| 15B |  | SPACER-END CAP (NOT ILLUSTRATED) | - |
| 17 | – | 5308013930 BACKGUARD GLASS TRIM | - |
| 19 | – | 318001004 PANEL-CONTROL, GLASS | - |
| 20 | | CLOCK/TIMER, ELECTRONIC | - |
| 23 | – | 318015800 BRACKET-CLOCK MTG, (2) | - |
| 24 |  | SWITCH, OVEN LIGHT, ROCKER TYPE | $42.52 ApplianceParts Pro |
| 28 | | 316080600NLA PUSH BUTTON-SHAFT, CLOCK/TIMER/EOC, BLACK (NOT ILLUSTRATED) | Discontinued |
| 29 | | 318017800NLA Knob,clock ,black ,(11) | Discontinued |
| 36 |  | 318016209replaces 318016208 KNOB-CONTROL, (5) | - |
| 40 | | PANEL-MANIFOLD | - |
| *24840 | | Strain relief | - |
| *24841 | | BUSHING, SIDE PANEL, NYLON, RH, SNAP | $7.57 Parts Dr |
| *24842 |  | 5304453707replaces 5303311333 SCREW-SWITCH MTG, SW TO CNTL PNL, (4) | $8.60 Part Advantage |
| *24843 |  | SCREW 6-20X5/8 OVAL HD AB AQDR,OVAL HD ,6-20 X 5/8,BLACK | - |
| *24844 |  | 131892100replaces 5303311532 Screw,6-32 x 1/4`` ,back | $7.49 ApplianceParts Pro |
| *24845 | – | 5303311530 HARNESS-CHASSIS | - |
