Model
Tappan TGF657BFU1
Range/Oven, Gas, Freestanding, 36 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGF657BFU1Range/Oven, Gas, Freestanding, 36 Inch
5 diagrams158 parts

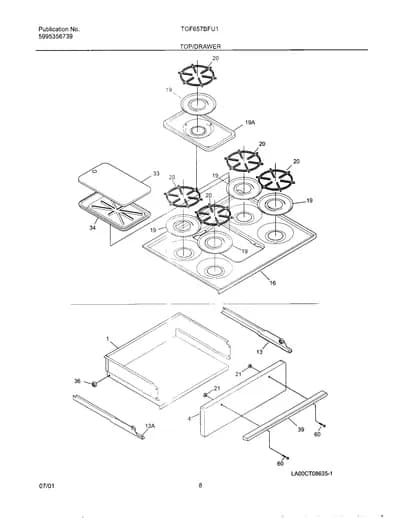

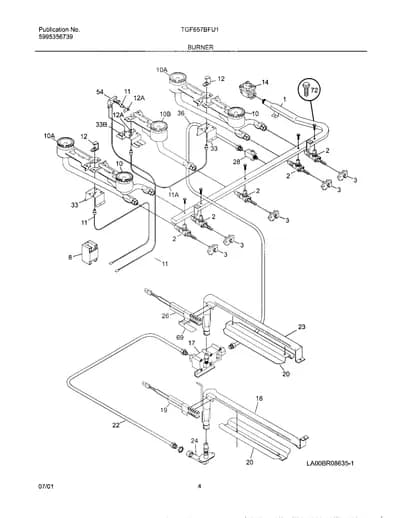

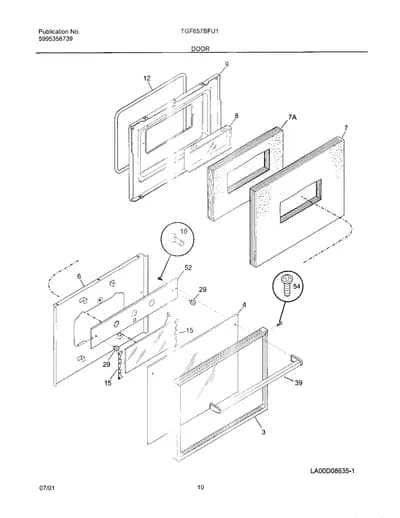

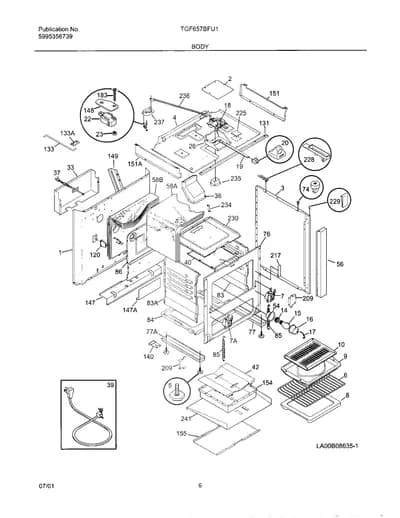

Parts Sections (5)
Diagram

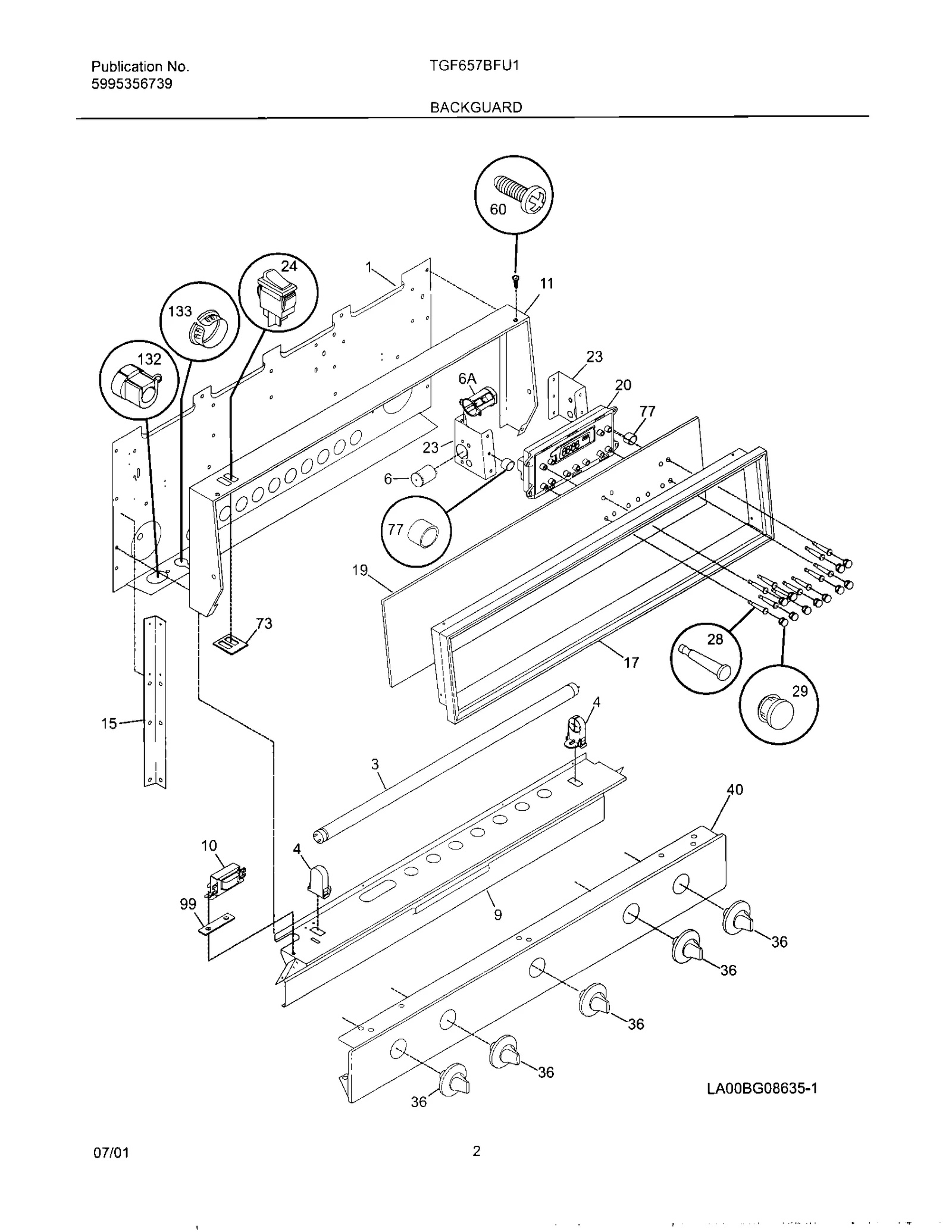

BACKGUARD
Parts in BACKGUARD
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 318022401 Shield,backguard ,rear wall | - |
| 3 |  | 5303286690NLA LAMP-FLUORESCENT, BACKGUARD | Discontinued |
| 4 | – | 318110300 RECEPTACLE-LAMP,RH/LH | - |
| 6 | | STARTER-FLUOR LIGHT | - |
| 6A | | Receptacle,starter | - |
| 9 | – | 318162003 SHIELD-INSULATION | - |
| 10 | | 318122802NLA BALLAST-LAMP | Discontinued |
| 11 | | TRIM-WRAPPER | - |
| 15 | – | 5308013296 Support,backguard ,(2) | - |
| 17 | – | 5308013930 BACKGUARD GLASS TRIM | - |
| 19 | – | 318001004 PANEL-CONTROL, GLASS | - |
| 20 | | CLOCK/TIMER, ELECTRONIC | - |
| 23 | – | 318015801 Bracket,clock mtg ,(2) | - |
| 24 |  | SWITCH, OVEN LIGHT, ROCKER TYPE | $42.52 ApplianceParts Pro |
| 28 | | 316080600NLA PUSH BUTTON-SHAFT, CLOCK/TIMER/EOC, BLACK (NOT ILLUSTRATED) | Discontinued |
| 29 | | 318017800NLA Knob,clock ,black ,(11) | Discontinued |
| 36 |  | KNOB-TOP VALVE | - |
| 40 | | PANEL-MANIFOLD | - |
| 60 |  | SCREW 6-20X5/8 OVAL HD AB AQDR,OVAL HD ,6-20 X 5/8,BLACK | - |
| 73 | – | 318141200 Support,switch | - |
| 77 | | 318531700replaces 318014100 SPACER | - |
| 99 |  | SPACER-END CAP (NOT ILLUSTRATED) | - |
| 132 | | Strain relief | - |
| 133 | | BUSHING, SIDE PANEL, NYLON, RH, SNAP | $7.57 Parts Dr |
| NI |  | Screw,6 x 0.375 ,(4) | - |
| NI |  | 5308014215replaces 5303324180 SCREW,6 X 3/8 | $1.22 Part Advantage |
| NI |  | 5304453707replaces 5303311333 SCREW-SWITCH MTG, SW TO CNTL PNL, (4) | $8.60 Part Advantage |
| NI |  | SCREW, 8 X 1/2 (NOT ILLUSTRATED) | $22.95 ApplianceParts Pro |
| NI |  | 131243700replaces 08016432 SCREW, TRUSS HEAD, 8-18 X 3/8, (4) (NOT ILLUSTRATED) | $1.96 Part Advantage |
