Model
Tappan TGFS26CQC
Range/Oven, Gas, Freestanding
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGFS26CQCRange/Oven, Gas, Freestanding
5 diagrams123 parts
Parts Sections (5)
Diagram

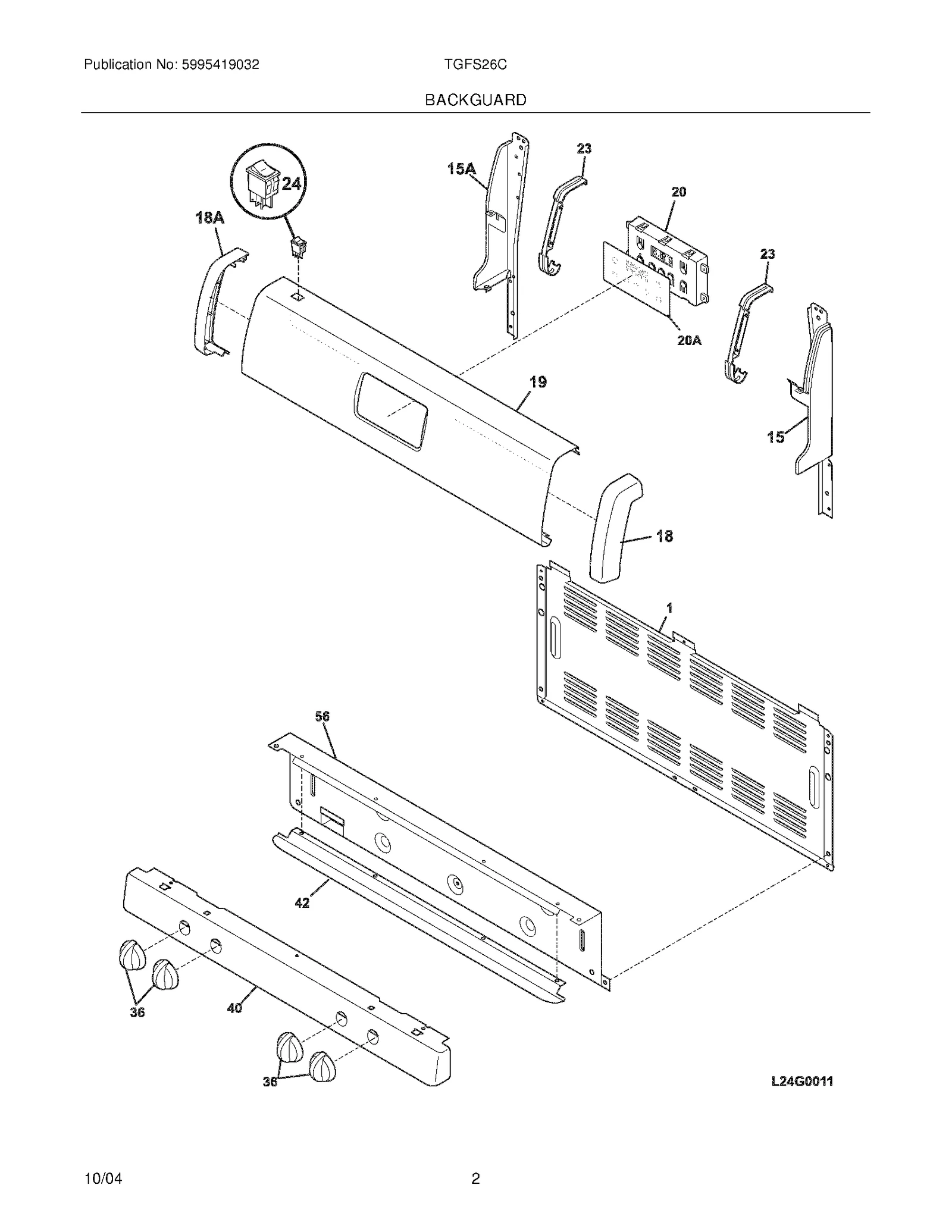

BACKGUARD
Parts in BACKGUARD
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Shield,backguard ,rear wall | - |
| 15 | | Support,backguard ,bisque ,RH | - |
| 15A | | Support,backguard ,bisque ,LH | - |
| 18 | | End Cap,bisque ,RH | - |
| 18A | | End Cap,bisque ,LH | - |
| 19 | – | 316244406 Panel,backguard ,bisque | - |
| 20 |  | 5304518661replaces 316222802 Clock/Timer,electronic ,ES100 | $89.19 Part Advantage |
| 20A |  | 316220702replaces 316220706 Overlay,clock ,bisque | $32.79 Parts Dr |
| 23 |  | Bracket,clock mtg | $56.19 RepairClinic |
| 24 |  | Switch,rocker ,bisque ,oven light | - |
| 36 | | Knob,top valve ,bisque ,(4) | - |
| 40 | | Panel,manifold ,bisque | - |
| 42 | – | 316277302 Trim,extrusion ,light tan | - |
| 56 |  | 316230708replaces 316230701 SHIELD, BACKGUARD, INNER | $45.67 ApplianceParts Pro |
| NI |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| NI | | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
| NI | | Screw,8-18 x 0.5 ,chrome | $8.20 Part Advantage |
| NI |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
