Model
Tappan TGFS63CBC
Range/Oven, Gas, Freestanding
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGFS63CBCRange/Oven, Gas, Freestanding
5 diagrams143 parts
Parts Sections (5)
Diagram

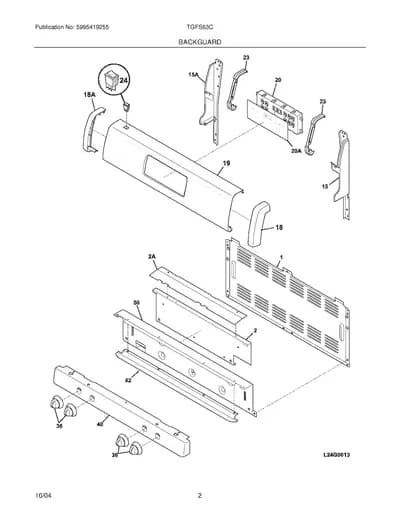

BACKGUARD
Parts in BACKGUARD
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Shield,backguard ,rear wall | - |
| 2 |  | 316497600replaces 316051600 Shield,backguard ,inner | - |
| 2A | | 316497600replaces 316235100 Shield-top inner | - |
| 15 |  | Support,backguard ,black ,RH | - |
| 15A |  | Support,backguard ,black ,LH | - |
| 18 | | End Cap,black ,RH | - |
| 18A | | 316240905NLA End Cap,black ,LH | Discontinued |
| 19 | – | 316244417 Panel,backguard ,black | - |
| 20 | | 316207500NLA Clock/Timer,electronic ,ES300 | Discontinued |
| 20A | | Overlay,clock ,black | - |
| 23 |  | Bracket,clock mtg | $56.19 RepairClinic |
| 24 |  | 5304527841replaces 316246001 Switch,rocker ,black ,oven light | $6.16 Part Advantage |
| 36 |  | Knob,top valve ,black ,(4) | $32.81 Part Advantage |
| 40 | | 316204918NLA Panel-manifold,black | Discontinued |
| 42 | – | 316277300 Trim,extrusion ,black | - |
| 56 |  | 316230708replaces 316230701 SHIELD, BACKGUARD, INNER | $45.67 ApplianceParts Pro |
| NI |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| NI | | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
| NI | | Screw,8-18 x 0.5 ,chrome | $8.20 Part Advantage |
| NI |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
