Model
Tappan TGO356BCWB
Range/Micro Combo, Over/Under, Gas, Freestanding
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGO356BCWBRange/Micro Combo, Over/Under, Gas, Freestanding
8 diagrams206 parts
Parts Sections (8)
Diagram

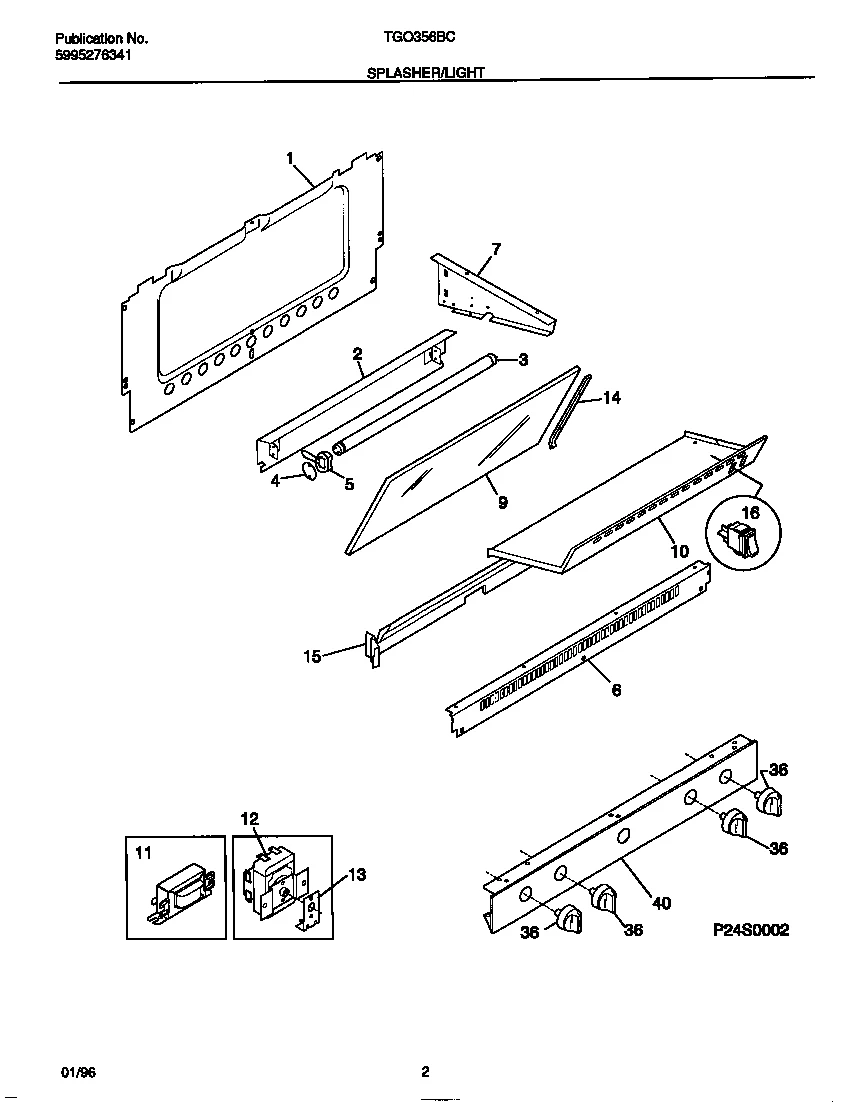

SPLASHER/LIGHT
Parts in SPLASHER/LIGHT
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 3204441 BACK-O/U MID WALL | - |
| 2 | – | 5303208612 REFLECTOR, WORK LIGHT | - |
| 3 |  | LAMP-FLUORESCENT, BACKGUARD | - |
| 4 | | INSULATOR FLUORESCENT LIGHT RECEPT (2) | - |
| 5 | | RECEPTACLE-STARTER | - |
| 6 | – | 5303269816 TRIM-VENT | - |
| 7A | – | 3200526 SUPPORT-UPPER OVEN, RH | - |
| 7B | – | 3200527 SUPPORT-UPPER OVEN, LH (NOT ILLUSTRATED) | - |
| 9 | | 3200496NLA GLASS-SPLASHER-O/U | Discontinued |
| 10 | | 316012900NLA PANEL-SPLASHER-UPPER | Discontinued |
| 11 |  | 316099800replaces 5303051115 BALLAST-FLUOR LT | - |
| 12 | | 08067928NLA SUPPORT, FRONT RH (4) | Discontinued |
| 13 | – | 3051348 ANGLE, SUPPORT, SELF CONTAINED THERMOSTAT | - |
| 14A | – | 08010549 TRIM-O/U SPLASHER GLASS FILLER | - |
| 14B | – | 5303269815 TRIM-SPLASHER, LH (NOT ILLUSTRATED) | - |
| 15 | | 318002800replaces 5303209039 TRIM-O/U SPLASHER GLASS FILLER | - |
| 16 |  | SWITCH, OVEN LIGHT, ROCKER TYPE | $42.52 ApplianceParts Pro |
| 36 | | 316023020NLA KNOB-CONTROL, (4) | Discontinued |
| 40 | – | 316086816 PANEL-MANIFOLD | - |
| *95560 | – | 08067960 FASTENER, CLIP CABLE | - |
| *95561 | | 3206218NLA STARTER-FLUOR LIGHT BLACK | Discontinued |
