Model
Tappan TGO356BHD2
Range/Micro Combo, Over/Under, Gas, Freestanding
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGO356BHD2Range/Micro Combo, Over/Under, Gas, Freestanding
8 diagrams133 parts
Parts Sections (8)
Diagram

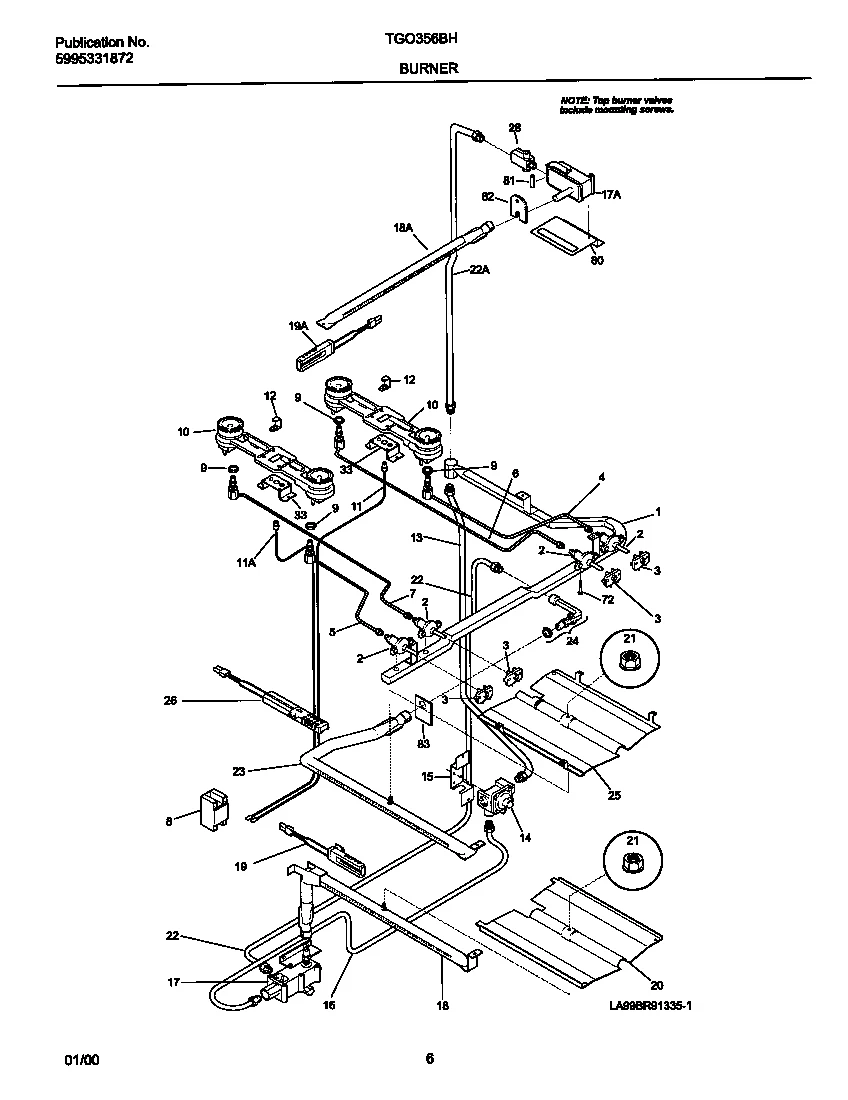

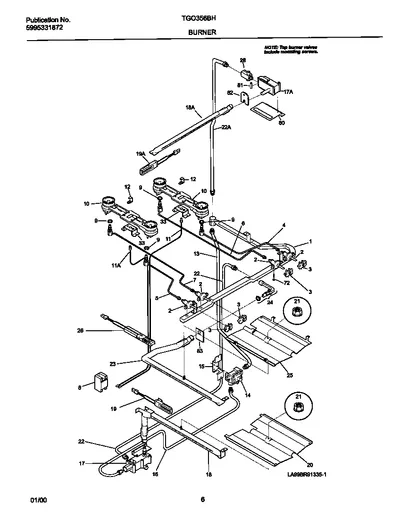

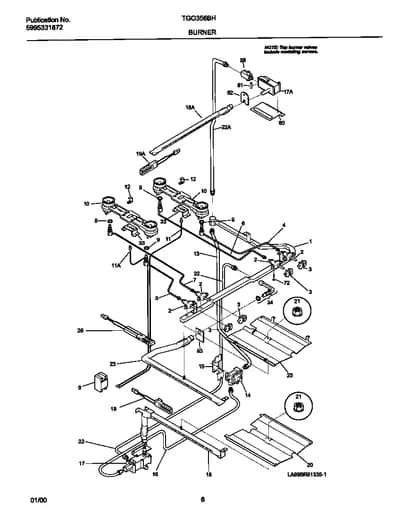

BURNER
Parts in BURNER
10 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 12 |  | RETAINER, TOP IGNITOR HARNESS AND ASSEMBLY | - |
| 17 |  | VALVE-UPPER SAFETY | - |
| 18 |  | BURNER-OVEN, UPPER | - |
| 19 |  | 5303200508NLA IGNITER-OVEN BURNER-UPPER | Discontinued |
| 21 | | 154079601replaces 5303013272 Nut,hex head sems | - |
| 22 | – | 318177800 TUBING-MIXER,UPPER | - |
| 28 | – | 316070500 VALVE-SHUT OFF | - |
| 80 | – | 5304403069 SUPPORT THERMO VALVE | - |
| 81 | – | 3131622 TUBE-SPACER (NON-ILLUSTRATED) | - |
| 82 | – | 3205396 RETAINER-OVEN STUD | - |
