Model
Tappan TGO356BHW2
Range/Micro Combo, Over/Under, Gas, Freestanding
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TGO356BHW2Range/Micro Combo, Over/Under, Gas, Freestanding
8 diagrams208 parts
Parts Sections (8)
Diagram

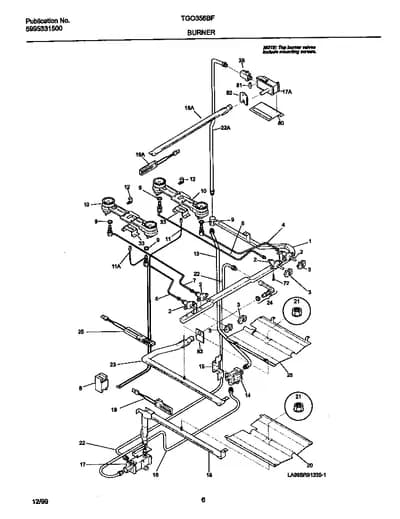

BURNER
Parts in BURNER
38 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 316113800 MANIFOLD-PIPE | - |
| 2 | – | 316127501 VALVE-TOP BURNER | - |
| 4 | – | 316051400 TUBE-BURNER, RF | - |
| 5 |  | TUBE-BURNER, LF | - |
| 6 | – | 316051402 TUBE-BURNER, RR | - |
| 7 | – | 316051403 TUBE-BURNER, LR | - |

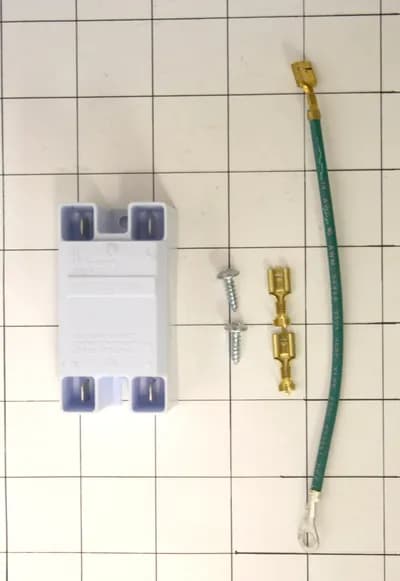

| 8 |  | SPARK MODULE | - |
| 9 | – | 3013279 NUT SPECIAL (NON-ILLUSTRATED) | - |
| 10 |  | BURNER-TOP DOUBLE | - |
| 11 |  | IGNITOR-TOP BURNER, 33`` | Discontinued |
| 11 | | 316081701NLA IGNITOR-TOP BURNER, 50`` | Discontinued |
| 12 |  | RETAINER, TOP IGNITOR HARNESS AND ASSEMBLY | - |
| 13 | | 316065005NLA Tube,3/8 ,aluminum ,rgltr to manf ,with fittings | Discontinued |
| 14 |  | 5304521339replaces 316091706 REGULATOR, PRESSURE | $56.37 Part Advantage |
| 15 |  | Bracket,regulator | $27.34 RepairClinic |
| 16 |  | TUBE-VALVE TO REGULATOR,3/8 | - |
| 17 | | VALVE-UPPER SAFETY | - |
| 17 |  | VALVE-SAFETY-DUAL | $344.77 Part Advantage |
| 18 |  | BURNER-OVEN, UPPER | - |
| 18 | | 3131290NLA BURNER-OVEN | Discontinued |
| 19 |  | 5303200508NLA IGNITER-OVEN BURNER-UPPER | Discontinued |
| 19 |  | Ignitor,oven kit ,w/nut & instr | $24.20 Parts Dr |
| 20 | | 3131284NLA BAFFLE-OVEN BURNER | Discontinued |
| 21 | | 154079601replaces 5303013272 Nut,hex head sems | - |
| 22 | – | 318177800 TUBING-MIXER,UPPER | - |
| 22 | | TUBE-VALVE TO MIXER | - |
| 23 | – | 316087900 BURNER-BROILER | - |
| 24 | | MIXER ELBOW | - |
| 25 | – | 5303210379 BAFFLE - W/A - BROILER | - |
| 26 |  | 5303935068replaces 5308067970 IGNITOR, BROILER BURNER | $80.57 Part Advantage |
| 28 | – | 316070500 VALVE-SHUT OFF | - |
| 33 | – | 3200277 BRACKET-BURNER MOUNTING | - |
| 72 |  | SCREW-TOP VALVE MTG, HEX WASHER HEAD, 1/4-20 X 0.31, (4), W/GASKET (NOT ILLUSTRATED) | - |
| 80 | – | 5304403069 SUPPORT THERMO VALVE | - |
| 81 | – | 3131622 TUBE-SPACER (NON-ILLUSTRATED) | - |
| 82 | – | 3205396 RETAINER-OVEN STUD | - |
| 83 | – | 316113400 Spacer,mixer elbow | - |
| *71720 |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
