Model
Tappan TPF303BWA
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TPF303BWARange/Oven, Gas, Freestanding, 30 Inch
5 diagrams93 parts
Parts Sections (5)
Diagram

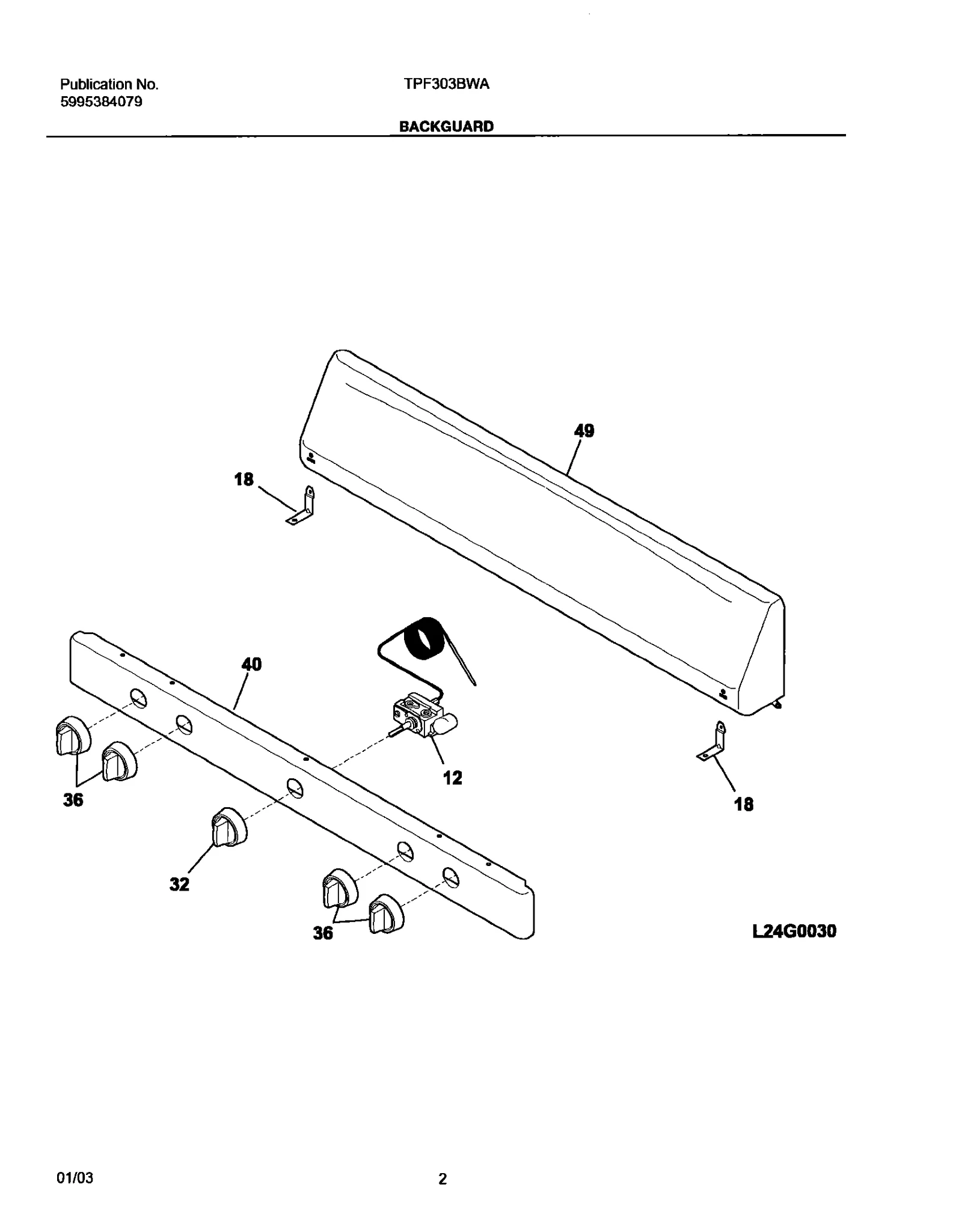

BACKGUARD
Parts in BACKGUARD
10 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 12 |  | Thermostat,oven ,w/screws | - |
| 18 | | Bracket,backguard | - |
| 32 | | 316102304NLA KNOB THERMOSTAT,BLACK | Discontinued |
| 36 |  | 316009008NLA Knob,top valve ,black ,(4) | Discontinued |
| 40 | – | 316201830 Panel-manifold,black | - |
| 49 | | Panel,backguard ,white | - |
| NI |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| NI |  | Screw,8-18 x 0.5 ,chrome | $8.20 Part Advantage |
| NI | – | 5303280590 SCREW-THERMOSTAT, (2) (NOT ILLUSTRATED) | - |
| NI | | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
