Model
Electrolux TRIMKITSS1
Freezer Accessory, Trim Kit
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
TRIMKITSS1Freezer Accessory, Trim Kit
1 diagram13 parts
Parts Sections (1)

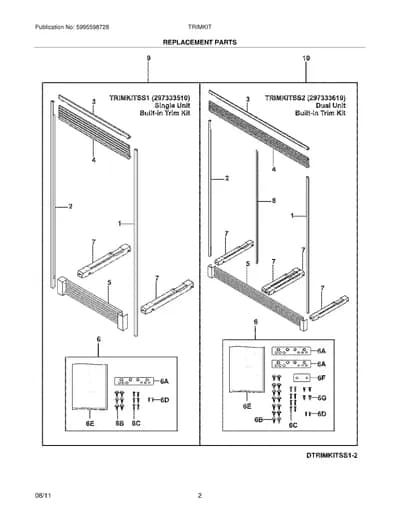

Diagram
REPLACEMENT PARTS
Parts in REPLACEMENT PARTS
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Trim,side ,RH ,single | - |
| 2 | | Trim,side ,LH ,single | - |
| 3 | | Trim,top ,short ,single | - |
| 4 | – | 297332811 Trim,top ,tall ,single | - |
| 5 | – | 297333311 Kick Plate,single | - |
| 6 | | Hardware Pack,complete ,single ,w/instructions | - |
| 6A | | 297333900NLA · Tie Bar,hinge | Discontinued |
| 6B |  | 240578902replaces 297236250 Screw,hex head ,1/4-20x5/8 ,hinge | $10.31 Parts Dr |
| 6C |  | Screw,8-18 x 0.750 | - |
| 6D |  | SCREW, BLUNT, 8-32 X 5/8 | $9.62 RepairClinic |
| 6E | – | 297299700 · Installation Instructions | - |
| 7 |  | 297276900NLA Leveler Assembly,support system ,w/rollers | Discontinued |
| 9 | – | 297333510 TRIM KIT, BUILT IN, SINGLE, COMPLETE (TRIMKITSS1) | - |
