Model
Electrolux TRIMKITSS2
Freezer Accessory, Trim Kit
Parts Sections (1)

How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
TRIMKITSS2Freezer Accessory, Trim Kit
1 diagram16 parts
Parts Sections (1)

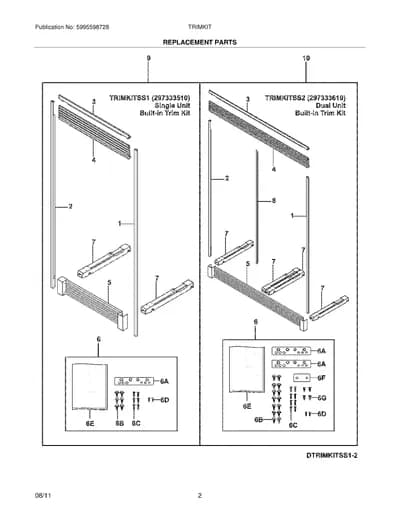

Diagram
REPLACEMENT PARTS

Parts in REPLACEMENT PARTS
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 297349010 Trim,side ,RH ,dual | - |
| 2 | Trim,side ,LH ,dual | - | |
| 3 | – | 297332710 Trim,top ,short ,dual | - |
| 4 | Trim,top ,tall ,dual | - | |
| 5 | 297333310NLA Kick Plate,dual | Discontinued | |
| 6 | 297343200NLA Hardware Pack,complete ,dual ,w/instructions | Discontinued | |
| 6A | 297333900NLA · Tie Bar,hinge | Discontinued | |
| 6B | 240578902replaces 297236250 Screw,hex head ,1/4-20x5/8 ,hinge | $10.31 Parts Dr | |
| 6C | ![]() | Screw,8-18 x 0.750 | - |
| 6D | SCREW, BLUNT, 8-32 X 5/8 | $9.62 RepairClinic | |
| 6E | – | 297299700 · Installation Instructions | - |
| 6F | · Tie Bar,back | - | |
| 6G | · Screw,flat head ,1/4-20 x .63 | $31.58 PartSelect | |
| 7 | ![]() | 297276900NLA Leveler Assembly,support system ,w/rollers | Discontinued |
| 8 | 297336900NLA Trim,center ,dual | Discontinued | |
| 10 | – | 297333610 TRIM KIT, BUILT IN, DUAL, COMPLETE (TRIMKITSS2) | - |
